Hardware options installation 79

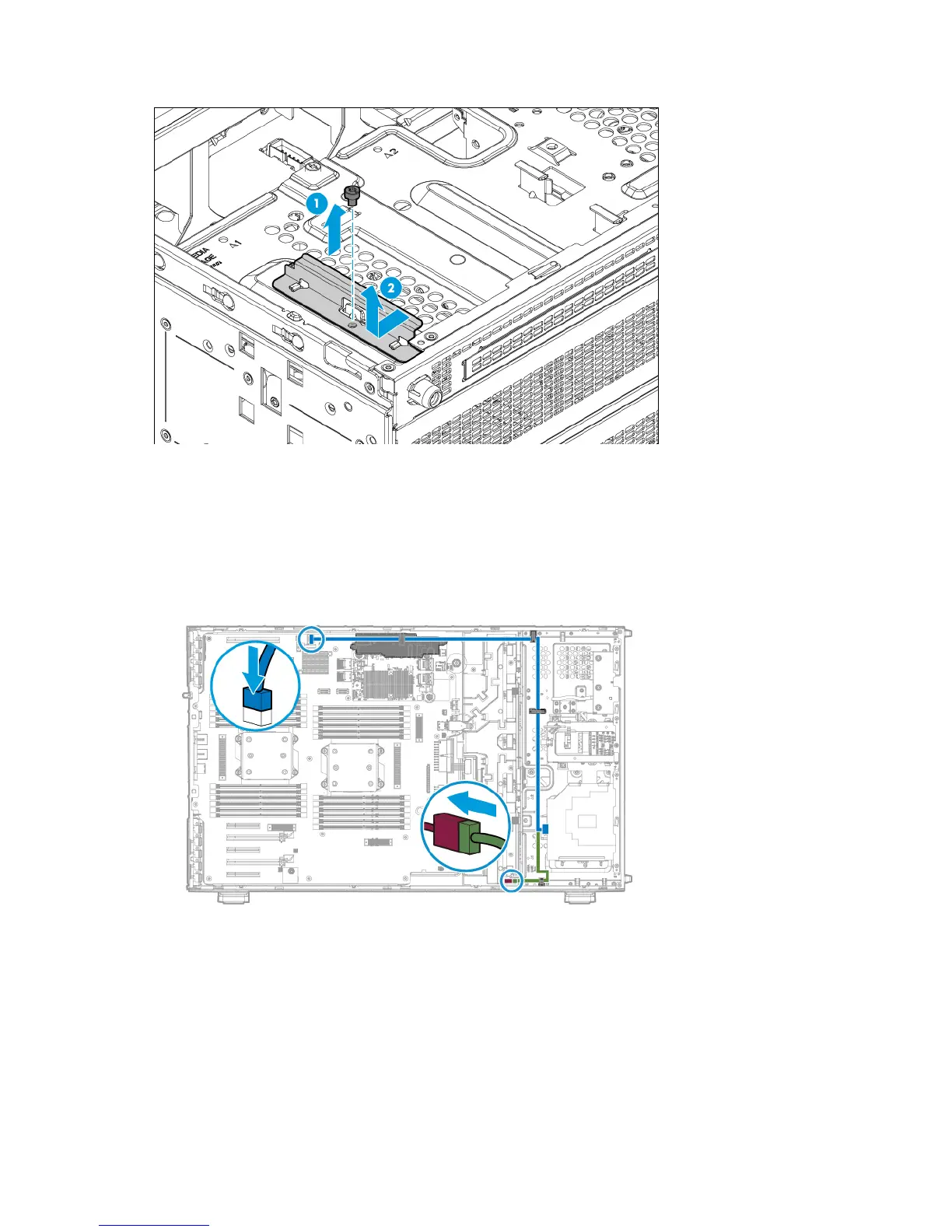

8. Remove the screw from the optical drive carrier.
9. Remove the optical drive carrier.
10. Install the 9.5mm optical drive in the optical drive carrier.
11. Tighten the screws on the optical drive carrier.
12. Connect the SATA and power cables to the optical drive.
o LFF configuration
