Appendix
Table A-l
Model 4342A
Reference
Designation
Part No.

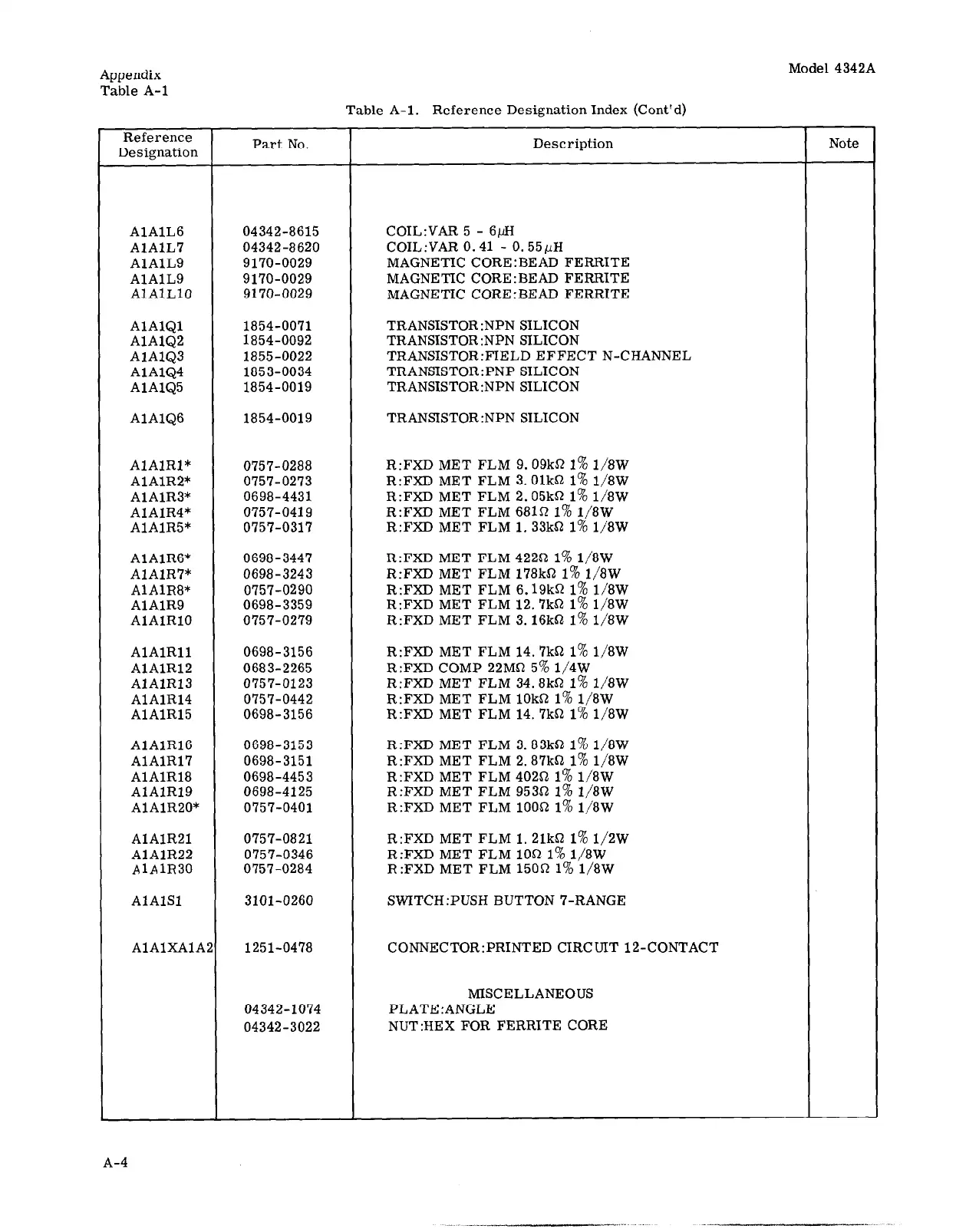

Table A-l. Reference Designation Index (Cont’d)
Description
Note
AlAlL
04342-8615 COIL:VAR 5 - 6@
AlAlL 04342-8620 COIL:VAR 0.41 - 0.55pH
AlAlL 9170-0029 MAGNETIC CORE:BEAD FERRITE
AlAlL 9170-0029 MAGNETIC CORE : BEAD FERRITE
AlAlLlO 9170-0029
MAGNETIC CORE:BEAD FERRITE
AlAlQl 1854-0071 TRANSISTOR :NPN SILICON
AlAlQ2
1854-0092 TRANSISTOR :NPN SILICON
AlAlQ3 1855-0022 TRANSISTOR:FIELD EFFECT N-CHANNEL
AlAlQ4 1853-0034 TRANSISTOR:PNP SILICON
AlAlQ5 1854-0019 TRANSISTOR:NPN SILICON
AlAlQ6 1854-0019 TRANSISTOR:NPN SILICON
AlAlRl*
0757-0288
AlAlR2* 0757-0273
AlAlR3* 0698-4431
AlAlR4* 0757-0419
AlAlRS* 0757-0317
AlAlRG* 0698-3447
AlAlR7* 0698-3243
AlAlR8* 0757-0290
AlAlR9
0698-3359
AlAlRlO 0757-0279
AlAlRll 0698-3156
AlAlR12 0683-2265
AlAlR13 0757-0123
AlAlR14
0757-0442
AlAlR15 0698-3156
AlAlR16 0698-3153
AlAlR17 0698-3151
AlAlRl8 0698-4453
AlAlR19 0698-4125
AlAlR20* 0757-0401
AlAlR21 0757-0821
AlAlR22 0757-0346
AlAlR30 0757-0284
AlAlSl 3101-0260
R:FXD MET FLM 9.09kfi 1% 1,‘8W
R:FXD MET FLM 3. OlkD 1% 1/8W
R:FXD MET FLM 2.05kR 1% 1/8W
R:FXD MET FLM 681R 1% 1/8W
R:FXD MET FLM 1.33k52 1% 1/8W
R:FXD MET FLM 422a 1% 1/8W
R:FXD MET FLM 178ka 1% 1/‘8W
R:FXD MET FLM 6.I9kQ 1% 1/8W
R:FXD MET FLM 12.7ka 1% 1/8W
R:FXD MET FLM 3.16kfi 1% 1/‘8W
R:FXD MET FLM 14.7kS1 1% 1/8W
R:FXD COMP 22MS1 5% 1/4W
R:FXD MET FLM 34.8kS1 1% 1/‘8W
R:FXD MET FLM lOk0 1% 1/8W
R:FXD MET FLM 14.7kSZ 1% 1/8W
R:FXD MET FLM 3.83kS2 1% 1/8W
R:FXD MET FLM 2.87kW 1% 1/8W
R:FXD MET FLM 402a 1% 1/8W
R:FXD MET FLM 95352 1% 1/‘8W
R:FXD MET FLM 10052 1% 1/8W
R:FXD MET FLM 1. 21k0 1% 1/2W
R:FXD MET FLM 1OsZ 1% 1,‘8W
R:FXD MET FLM 150R 1% 1/8W
SWITCH:PUSH BUTTON 7-RANGE
AlAlXAlA2 1251-0478
CONNECTOR:PRINTED CIRCUIT 12-CONTACT
MISCELLANEOUS
04342-1074 PLATE:ANGLE
04342-3022
NUT:HEX FOR FERRITE CORE
A-4
.-..,
II_
