Model 4342A
Appendix
Table A-2

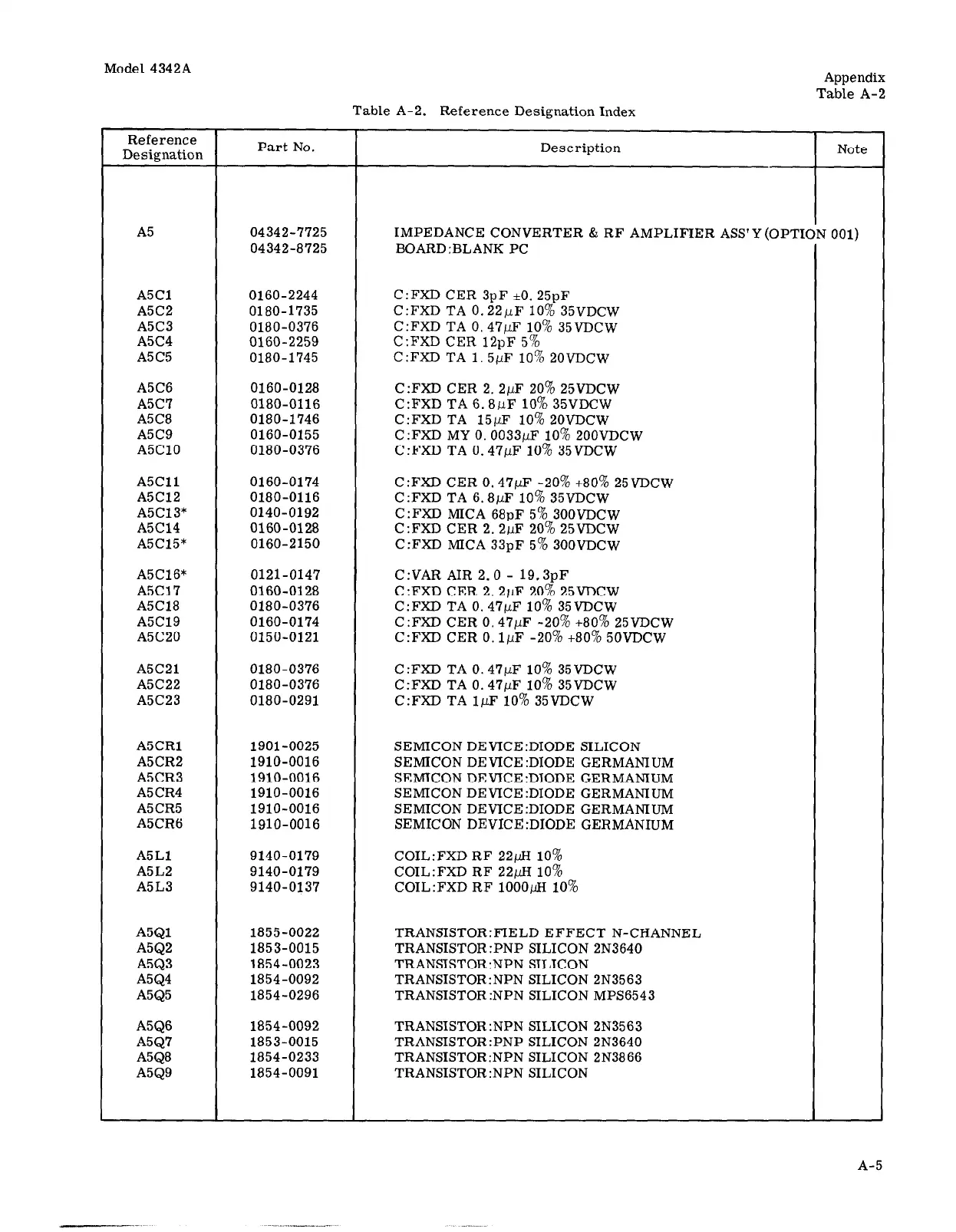

Table A-2. Reference Designation Index
Reference
Designation
Part No. Description
Note
A5 04342-7725 IMPEDANCE CONVERTER & RF AMPLIFIER ASS’Y (OPTION 001)
04342-8725 BOARD :BL ANK PC
A5Cl 0160-2244
A5C2
0180-1735
A5C3 0180-0376
A5C4 0160-2259
A5C5 0180-1745
A5C6 0160-0128
A5C7
0180-0116
A5C8 0180-1746
A5C9 0160-0155
A5ClO 0180-0376
A5Cll 0160-0174
A5C12 0180-0116
A5C13*
0140-0192
A5C14
0160-0128
A5C15* 0160-2150
A5C16* 0121-0147
A5C17
0160-0128
A5C18 0180-0376
A5C19
0160-0174
A5C20 0150-0121
A5C21 0180-0376
A5C22
0180-0376
A5C23 0180-0291
C:FXD CER 3pF *O. 25pF
C:FXD TA 0.22pF 10% 35VDCW
C:FXD TA 0.47/~F 10% 35VDCW
C:FXD CER 12pF 5%
C:FXD TA 1.5pF 10% 20VDCW
C:FXD CER 2.2yF 20% 25VDCW
C:FXD TA 6.81.1F 10% 35VDCW
C:FXD TA 15pF 10% 20VDCW
C:FXD MY 0.0033/~F 10% BOOVDCW
C:FXD TA 0.47yF 10% 35VDCW
C:FXD CER 0.47@ -20% +80% 25VDCW
C:FXD TA 6.8pF 10% 35VDCW
C:FXD MICA 68pF 5% 3OOVDcw
C:FXD CER 2.2bF 20% 25VDCW
C:FXD MICA 33pF 5% 3OOVDCw
C:VAR AIR 2.0 - 19.3pF
C:FXD CER 2.2pF 20% 25VDCW
C:FXD TA 0.47yF 10% 35VDCW
C:FXD CER 0.47pF -20% +800/o 25VDCW
C:FXD CER O.lpF -20% +80% 50VDCW
C:FXD TA 0.47pF 10% 35VDCW
C:FXD TA 0.47/~F 10% 35VDCW
C:FXD TA l@ 10% 35VDCW
A5CRl
1901-0025
SEMICON DEVICE:DIODE SILICON
A5CR2 1910-0016 SEMICON DEVICE :DlODE GERMANIUM
A5CR3 1910-0016 SEMICON DEVICE:DIODE GERMANIUM
A5CR4 1910-0016 SEMICON DEVICE:DIODE GERMANIUM
A5CR5 1910-0016
SEMICON DEVICE:DIODE GERMANIUM
A5CR6 1910-0016 SEMICON DEVICE:DIODE GERMANIUM
A5Ll 9140-0179 COIL:FXD RF 22/~H 10%
A5L2 9140-0179 COIL:FXD RF 22m 10%
A5L3 9140-0137 COIL:FXD RF 1OOOm 10%
A5Ql
A5Q2
A5Q3
A5Q4
A5Q5
1855-0022 TRANSISTOR:FIELD EFFECT N-CHANNEL
1853-0015 TRANSISTOR:PNP SILICON 2N3640
1854-0023 TRANSISTOR:NPN SILICON
1854-0092 TRANSISTOR:NPN SILICON 2N3563
1854-0296 TRANSISTOR:NPN SILICON MPS6543
A5Q6
A5Q7
A5Q8
A5Q9
1854-0092 TRANSISTOR:NPN SILICON 2N3563
1853-0015 TRANSISTOR:PNP SILICON 2N3640
1854-0233 TRANSISTOR:NPN SILICON 2N3866
1854-0091 TRANSISTOR:NPN SILICON
A-5
