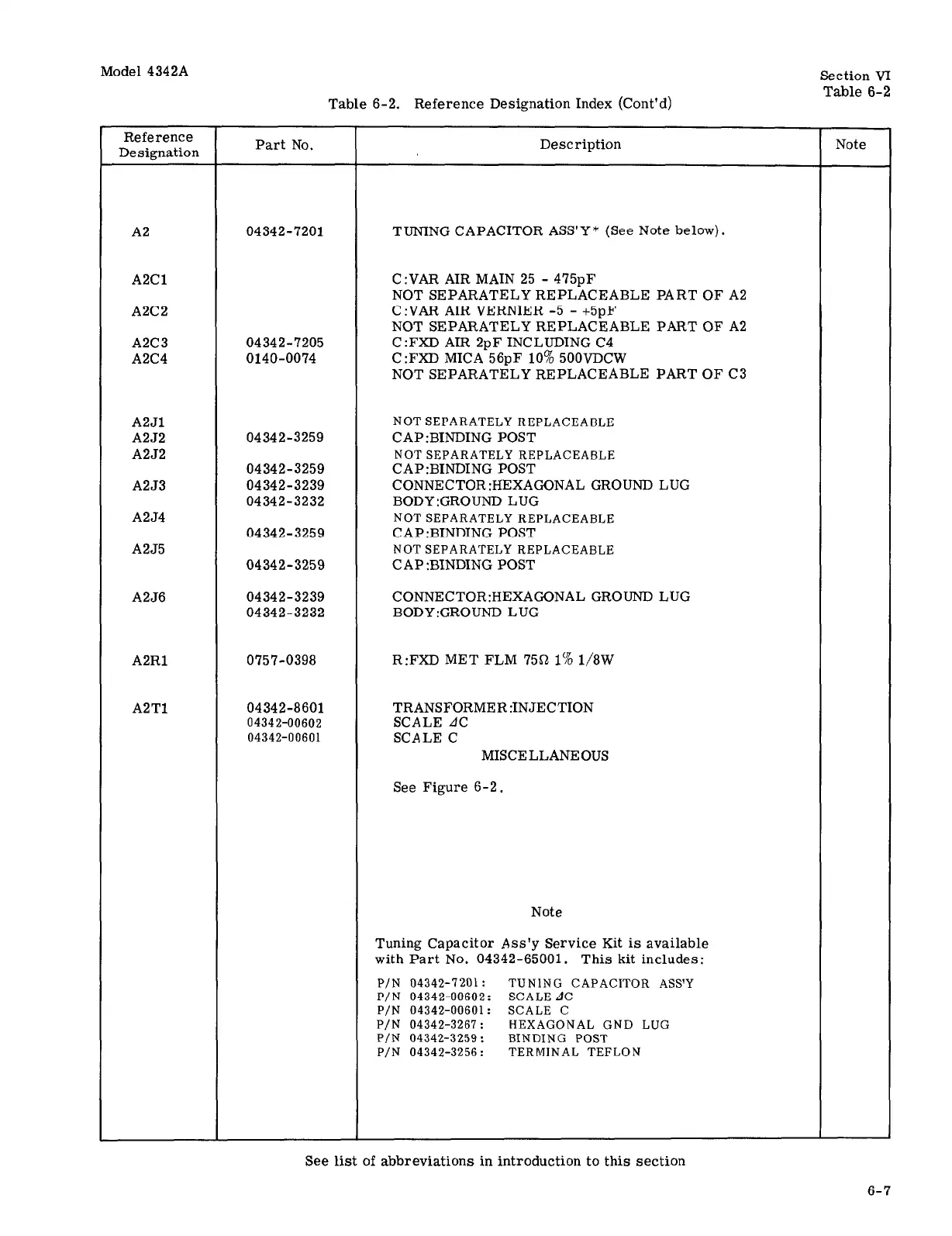

Table 6-2. Reference Designation Index (Cont’d)
Table 6-2
Reference
Designation
Part No. Description
Note
A2
A2Cl
A2C2
A2C3
A2C4
04342-7201
04342-7205
0140-0074
TUNING CAPACITOR ASS’Y* (See Note below).
C:VAR AIR MAIN 25 - 475pF
NOT SEPARATELY REPLACEABLE PART OF A2
C:VAR AIR VERNIER -5 - +5pF
NOTSEPARATELYREPLACEABLE PARTOFA2
C:FXD AIR 2pF INCLUDING C4
C:FKD MICA 56pF 10% 500VDCW
NOT SEPARATELY REPLACEABLE PART OF C3
A2Jl
A2J2
A2J2
A2J3
A2J4
A2J5
A2J6
A2Rl
A2Tl
04342-3259
04342-3259
04342-3239
04342-3232
04342-3259
04342-3259
04342-3239
04342-3232
0757-0398
04342-8601
04342-00602
04342-00601
NOT SEPARATELY REPLACEABLE
CAP:BINDING POST
NOT SEPARATELY REPLACEABLE
CAP:BINDING POST
CONNECTOR:HEXAGONALGROUNDLUG
BODY:GROUND LUG
NOT SEPARATELY REPLACEABLE
C AP:BINDING POST
NOT SEPARATELY REPLACEABLE
CAP :BINDING POST
CONNECTOR:HEXAGONALGROUNDLUG
BODY:GROUND LUG
R:FXD MET FLM 750 1% l/SW
TRANSFORMER:INJECTION
SCALE AC
SCALE C
MISCELLANEOUS
See Figure 6-2.
Note
Tuning Capacitor Ass’y Service Kit is available
with Part No. 04342-65001. This kit includes:
P/N 04342-7201: TUNING CAPACITOR ASS’Y
P/N 04342-00602: SCALE AC
P/N 04342-00601: SCALE C
P/N 04342-3267 : HEXAGONAL GND LUG
Pf N 04342-3259 :
BINDING POST
P/N 04342-3256 : TERMINAL TEFLON
See list of abbreviations in introduction to this section
6-7
PTFE
