Section VI
Model 4342A
Table 6-2

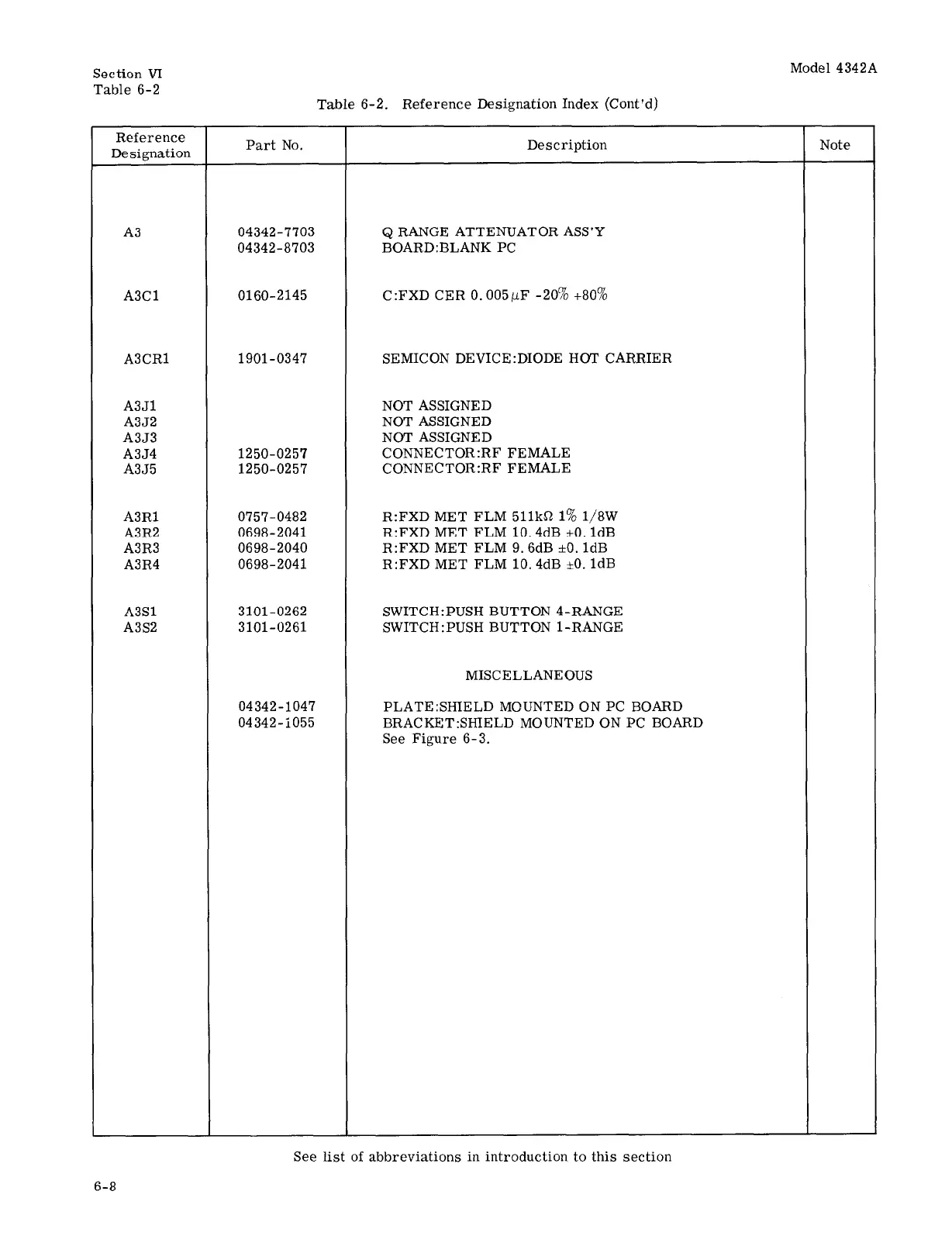

Table 6-2. Reference Designation Index (Cont’d)
Reference
Designation
Part No. Description
Note
A3
A3Cl
04342-7703 Q RANGE ATTENUATOR ASS’Y
04342-8703 BOARD:BLANK PC
0160-2145 C:FXD CER 0.005yF -20% +80%
A3CRl
A3Jl
A3J2
A3J3
A3J4
A3J5
A3Rl
A3R2
A3R3
A3R4
A3Sl
A3S2
1901-0347
1250-0257
1250-0257
0757-0482
0698-2041
0698-2040
0698-2041
3101-0262
3101-0261
04342-1047
04342-i055
SEMICON DEVICE:DIODE HOT CARRIER
NOT ASSIGNED
NOT ASSIGNED
NOT ASSIGNED
CONNECTOR:RF FEMALE
CONNECTOR:RF FEMALE
R:FXD MET FLM 511kS2 1% 1/8W
R:FXD MET FLM 10.4dB *O. 1dB
R:FXD MET FLM 9.6dB i-0. 1dB
R:FXD MET FLM 10.4dB &O. 1dB
SWITCH:PUSH BUTTON 4-RANGE
SWITCH:PUSH BUTTON l-RANGE
MISCELLANEOUS
PLATE:SHIELD MOUNTED ON PC BOARD
BRACKET:SHIELD MOUNTED ON PC BOARD
See Figure 6-3.
See list of abbreviations in introduction to this section
6-8
