Model 4342A
Section VI
Reference
Designation
Table 6-2

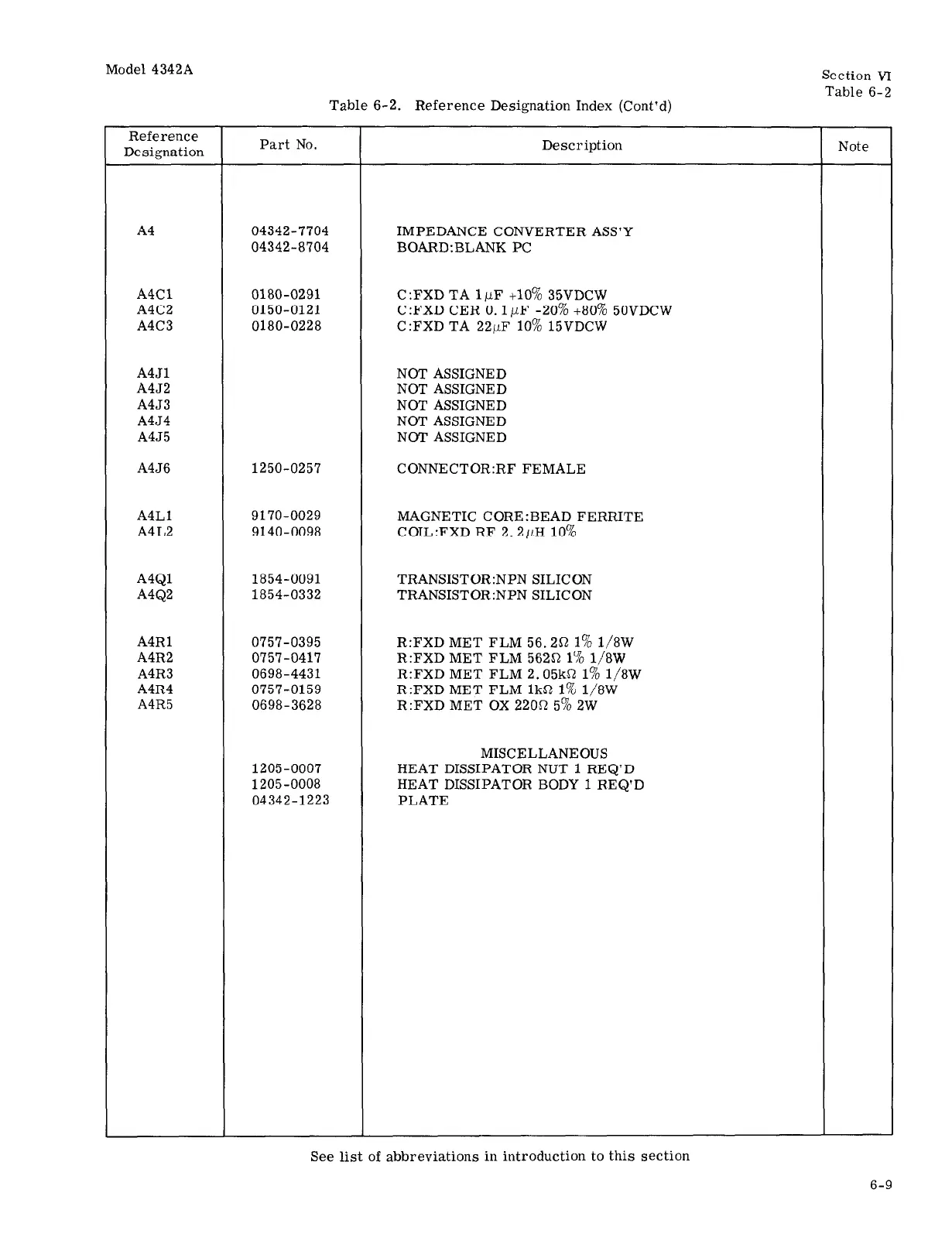

Table 6-2. Reference Designation Index (Cont’d)
Part No.
Description Note
A4
A4Cl
A4C2
A4C3
A4Jl
A4J2
A4J3
A4J4
A4J5
A4J6
A4Ll
A4L2
A4Ql
A4Q2
A4Rl
A4R2
A4R3
A4R4
A4R5
04342-7704
04342-8704
0180-0291
0150-0121
0180-0228
1250-025’7
9170-0029
9140-0098
1854-0091
1854-0332
0757-0395
0757-0417
0698-4431
0757-0159
0698-3628
1205-0007
1205-0008
04342-1223
IMPEDANCE CONVERTER ASS’Y
BOARD:BLANK PC
C:FXD TA 1pF +lO% 35VDCW
C:FXD CER 0. 1pF -20% +80% 50VDCW
C:FXD TA 221~.F 10% 15VDCW
NOT ASSIGNED
NOT ASSIGNED
NOT ASSIGNED
NOT ASSIGNED
NOT ASSIGNED
CONNECTOR:RF FEMALE
MAGNETIC CORE:BEAD FERRITE
COIL:FXD RF 2.2pH 10%
TRANSISTOR:NPN SILICON
TRANSISTOR:NPN SILICON
R:FXD MET FLM 56.252 1% 1/8W
R:FXD MET FLM 562n 1% 1/8W
R:FXD MET FLM 2.05kS1 1% 1/8W
R:FXD MET FLM lka 1% 1/8W
R:FXD MET OX 220R 5% 2W
MISCELLANEOUS
HEAT DISSIPATOR NUT 1 REQ’D
HEAT DISSIPATOR BODY 1 REQ’D
PLATE
See list of abbreviations in introduction to this section
6-9
