Section VI
Model 4342A
Table 6-2

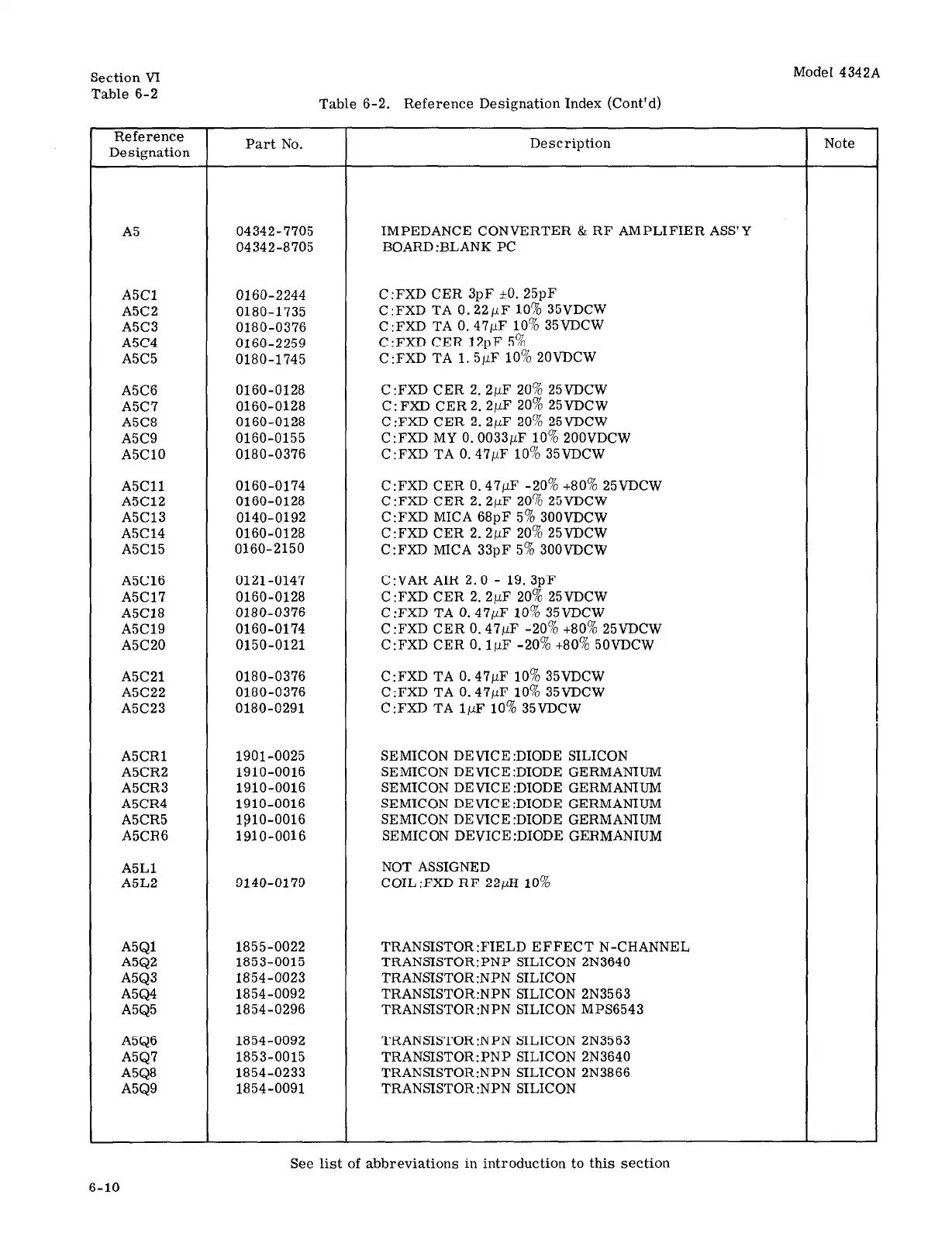

Table 6-2. Reference Designation Index (Cont’d)
Reference
Designation
Part No.
Description Note
A5
04342-7705 IMPEDANCE CONVERTER & RF AMPLIFIER ASS’Y
04342-8705
BOARD :BLANK PC
A5Cl 0160-2244
A5C2
0180-1735
A5C3 0180-0376
A5C4 0160-2259
A5C5
0180-1745
A5C6 0160-0128
A5C7
0160-0128
A5C8
0160-0128
A5C9
0160-0155
A5ClO 0180-0376
C:FXD CER 3pF *O. 25pF
C:FXD TA 0.221~.F 10% 35VDCW
C:FXD TA 0.47pF 10% 35VDCW
C:FXD CER 12pF 5%
C:FXD TA 1.51_1F 10% 20VDCW
C:FXD CER 2.2pF 20% 25VDCW
C:FXD CER 2.21.1F 20% 25VDCw
C:FXD CER 2.21~.F 20% 25VDCW
C:FXD MY 0.0033~F 10% BOOVDCW
C:FXD TA 0.47kF 10% 35VDCW
A5Cll 0160-0174
A5C12
0160-0128
A5C13 0140-0192
A5C14 0160-0128
A5C15
0160-2150
A5C16
0121-0147
A5C17
0160-0128
A5C18 0180-0376
A5C19
0160-0174
A5C20 0150-0121
A5C21 0180-0376
A5C22
0180-0376
A5C23 0180-0291
C:FXD CER 0.47pF -20% +80% 25VDCW
C:FXD CER 2. ~/.IF 20% 25VDCW
C:FXD MICA 68pF 5% 300VDCW
C:FXD CER 2.21~.F 20% 25VDCW
C:FXD MICA 33pF 5% SOOVDCW
C:VAR AIR 2.0 - 19. 3pF
C:FXD CER 2.2pF 20% 25VDCW
C:FXD TA 0.47pF 10% 35VDCW
C:FXD CER 0.47pF -20% +80% 25VDCW
C:FXD CER 0. 1pF -20% +80% 50VDCW
C:FXD TA 0.47pF 10% 35VDCW
C:FXD TA 0.47j~F 10% 35VDCW
C:FXD TA ~/JF 10% 35VDCW
A5CRl
1901-0025 SEMICON DEVICE :DIODE SILICON
A5CR2 1910-0016 SEMICON DEVICE:DIODE GERMANIUM
A5CR3
1910-0016 SEMICON DEVICE :DIODE GERMANIUM
A5CR4
1910-0016 SEMICON DEVICE :DIODE GERMANIUM
A5CR5 1910-0016 SEMICON DEVICE :DIODE GERMANIUM
A5CR6 1910-0016 SEMICON DEVICE :DIODE GERMANIUM
A5Ll
NOT ASSIGNED
A5L2 9140-0179
COIL:FXD RF 22w 10%
A5Ql
A5Q2
A5Q3
A5Q4
A5Q5
A5Q6
A5Q7
A5Q8
A5Q9
1855-0022 TRANSISTOR:FIELD EFFECT N-CHANNEL
1853-0015 TRANSISTOR:PNP SILICON 2N3640
1854-0023 TRANSISTOR :NPN SILICON
1854-0092 TRANSISTOR:NPN SILICON 2N3563
1854-0296 TRANSISTOR:NPN SILICON MPS6543
1854-0092 TRANSISTOR :NPN SILICON 2N3563
1853-0015 TRANSISTOR:PNP SILICON 2N3640
1854-0233 TRANSISTOR:NPN SILICON 2N3866
1854-0091 TRANSISTOR :NPN SILICON
6-10
See list of abbreviations in introduction to this section
