Rear of rack (cont.)

Installing the UPS in the rack

Before installing the UPS, review and adhere to all safety information (see page 2 and page 3). The mounting rails

must be installed before installing the UPS.

Warning: A risk of personal injury or damage to the equipment exists. Uneven loading of

equipment in the rack might cause the rack to become unstable. Install the heavier components

rst, and then continue to populate the rack from the bottom to the top.

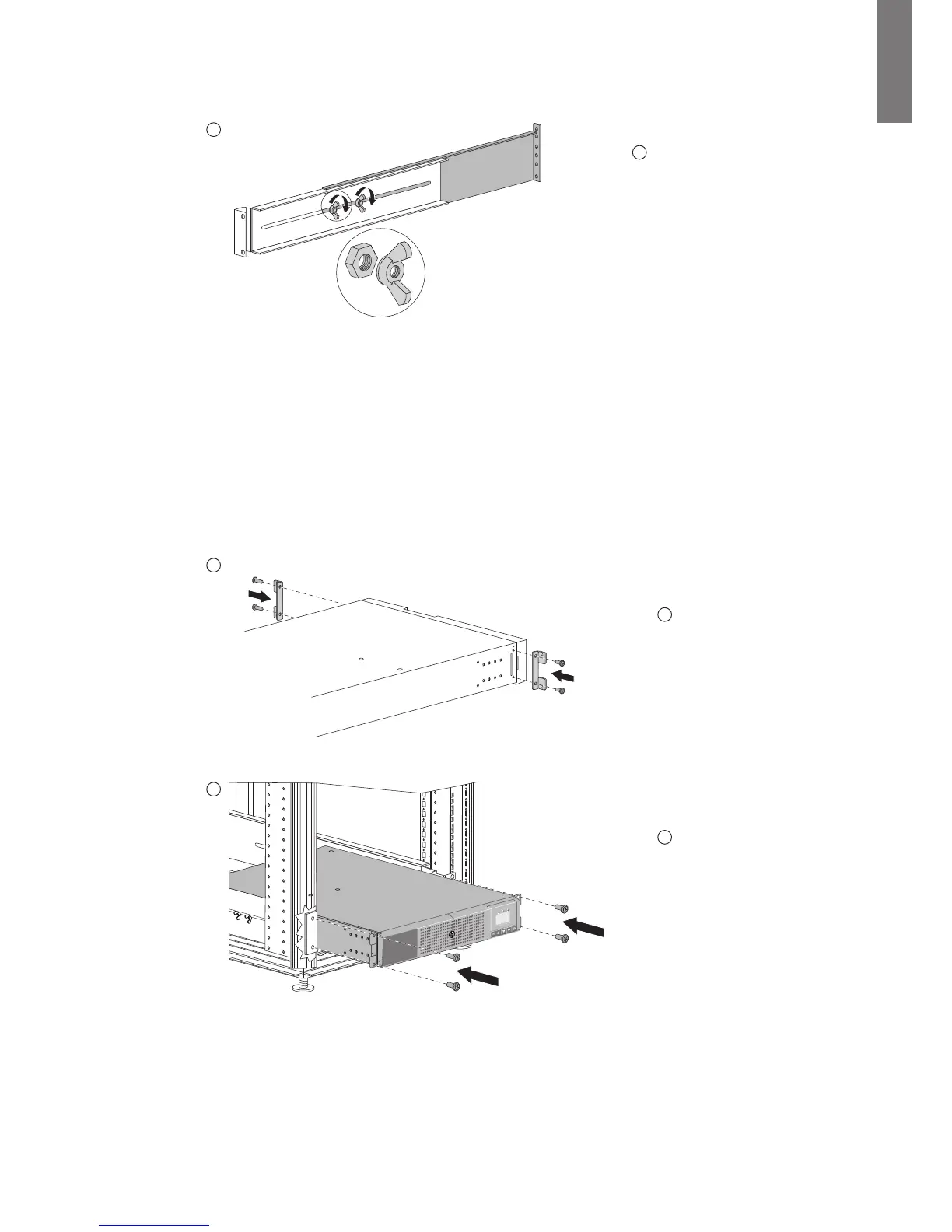

M3 screws

M6 screws

Tighten the wing nuts or hex

nuts.

Install the mounting ears on the

chassis using the provided screws.

Install the UPS chassis in the rack.

1. With one person on each side,

lift the chassis to rail level and

slide the chassis on the mount-

ing rails.

2. Attach the chassis to the rack

using the provided screws.
