Installing and configuring the Edge Switch 2/2438
11.Select File > Exit to close the HyperTerminal window. A message box is displayed (Figure 11).

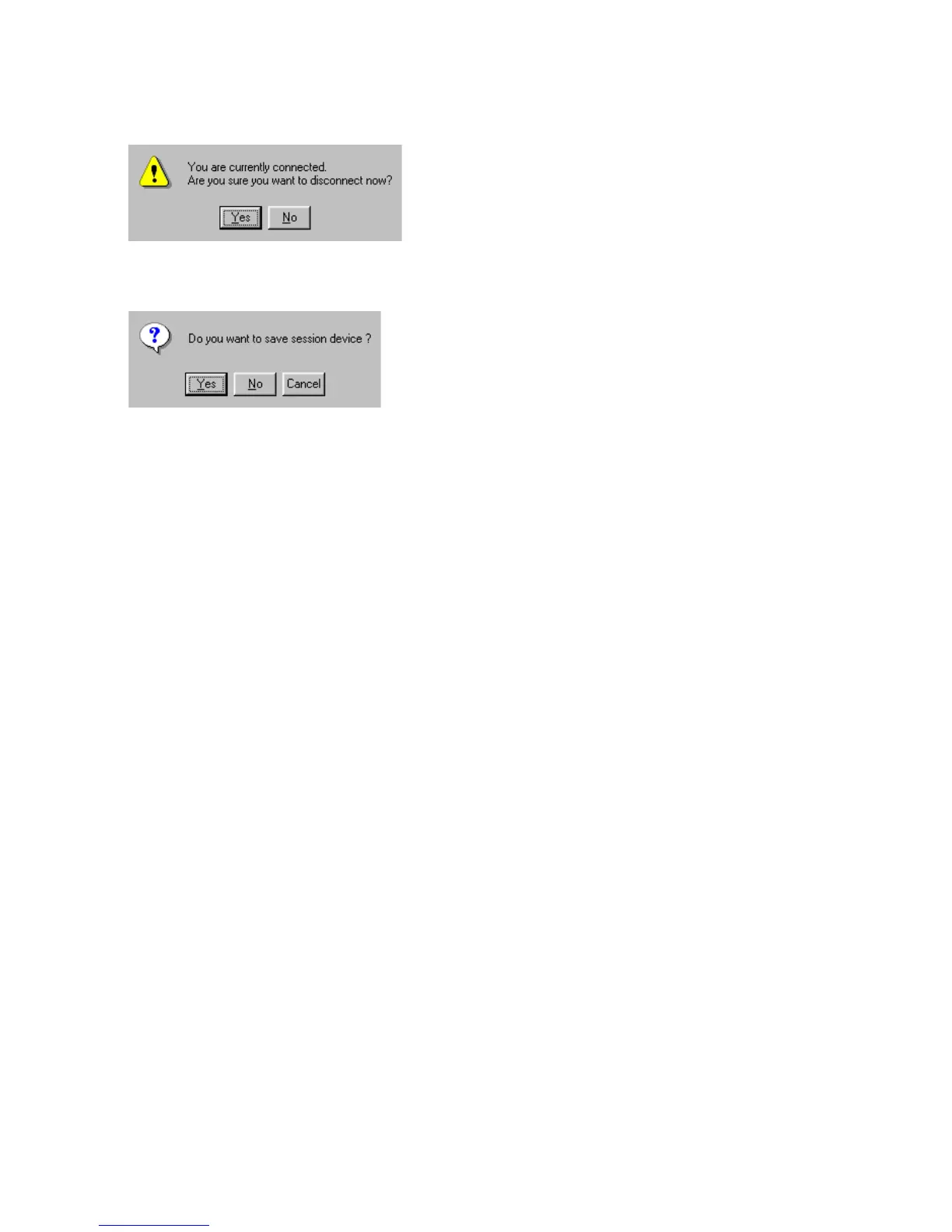

Figure 11 Disconnect Now dialog box
12.Click Yes. A message box is displayed (Figure 12).
Figure 12 Save Session dialog box
13.Click No to exit and close the HyperTerminal dialog box.
14.Power off the maintenance terminal:
a. Select Start > Shut Down. The Shut Down Windows dialog box is displayed.
b. Select Shut down the Computer and click Yes to power off the PC.
15.Disconnect the RS-232 null modem cable from the switch and the maintenance terminal. Replace
the protective plate over the maintenance port.
LAN-Connect the switch
Connect the switch to the Ethernet LAN segment or the HP-supplied Ethernet hub as follows:
1. Connect one end of the Ethernet patch cable (supplied with the switch) to the RJ-45 connector
(labeled 10/100) on the left front of the chassis.
2. Connect the remaining end of the Ethernet cable to the LAN as follows:
a. If the switch is installed on a LAN segment, connect the cable to the LAN as directed by the
customer’s network administrator.
b. If the switch is installed on the HP-supplied Ethernet hub, connect the cable to any available
port on the hub.
3. Perform one of the following steps:
If an HAFM appliance is delivered and available, go to ”Configure the HAFM appliance” on
page 39.
If an HAFM appliance is not available and the switch is managed through the EWS
interface, attach the Ethernet LAN segment to an Internet connection and go to ”Using the
Embedded Web Server” on page 67.
