Manage firmware versions82
Modify a firmware version description
Use these steps to modify the description of an Edge Switch firmware version in the library stored on
the HAFM appliance hard drive:
1. At the HAFM appliance, open the HAFM application. The Products View page is displayed.
2. Double-click the icon representing the Edge Switch for which the firmware version description will
be modified. The Hardware View page for the selected Edge Switch is displayed.
3. Select Maintenance > Firmware Library. The Switch Firmware Library dialog box is displayed,
as shown in Figure 46.
4. Select the firmware version to be modified and click Modify. The Modify Firmware Description
dialog box is displayed, as shown in Figure 50.

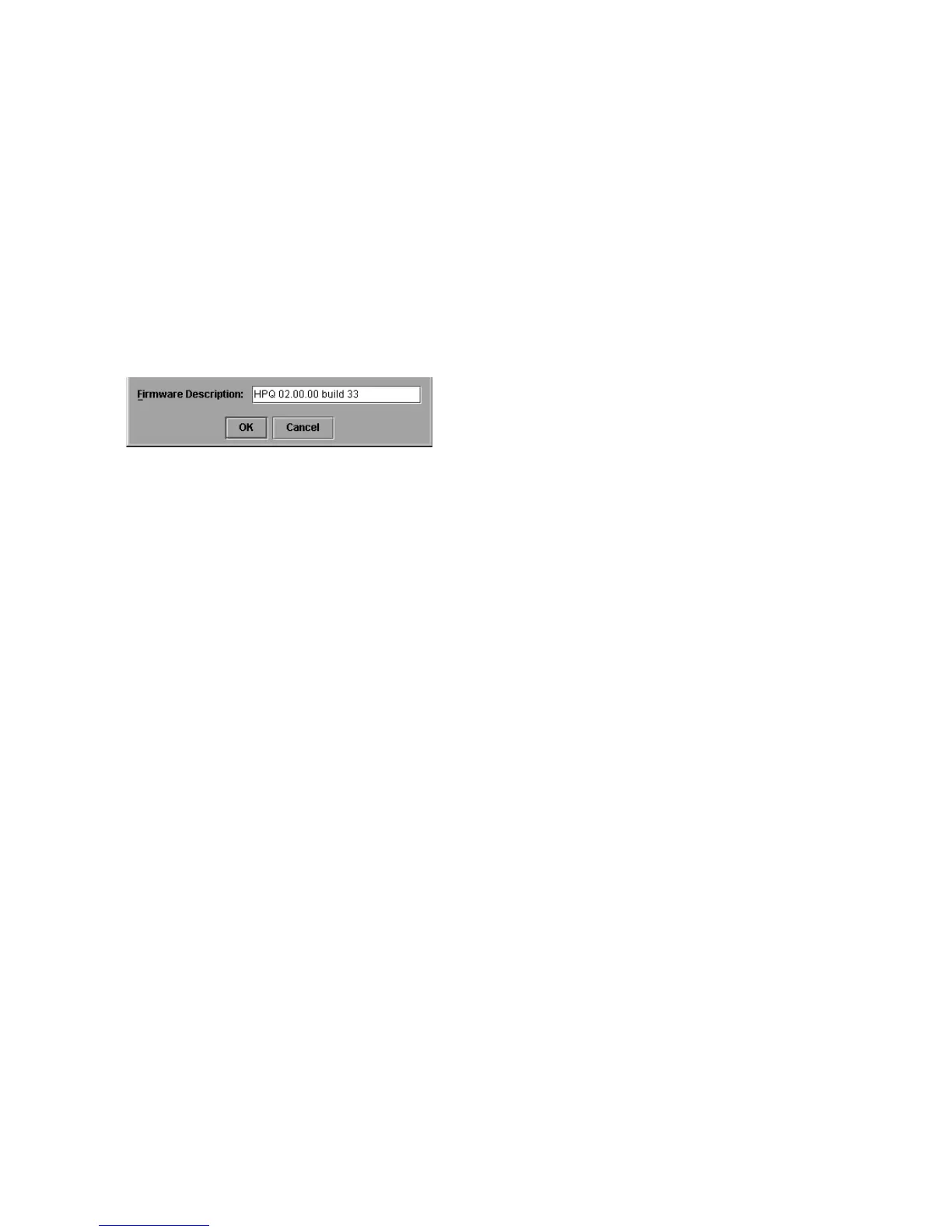

Figure 50 Modify Firmware Description dialog box
5. Enter a modified description (up to 24 characters in length) for the firmware version and click
OK. HP recommends that the description include the installation date and text that uniquely
identifies the firmware version.
6. The new description for the firmware version is displayed in the Switch Firmware Library dialog
box.
7. Click Close.
Delete a firmware version
Use these steps to delete a firmware version from the library stored on the HAFM appliance hard
drive:
1. At the HAFM appliance, open the HAFM application. The Products View page is displayed.
2. Double-click the icon representing the Edge Switch from which the firmware version will be
deleted. The Hardware View page for the selected Edge Switch is displayed.
3. Select Maintenance > Firmware Library. The Switch Firmware Library dialog box is displayed, as
shown in Figure 46 on page 79.
4. Select the firmware version to be deleted and click Delete. A confirmation dialog box is
displayed.
5. Click OK. The selected firmware version is deleted from the Switch Firmware Library dialog box.
6. Click Close.
