Configure Switch Identification
Perform this procedure to configure the switch name, description, location, and contact person for
the HAFM application. The information is displayed in multiple dialog boxes throughout the
application. In addition, the Name, Location, and Contact variables configured at the
Configure Identification dialog box correspond respectively to the SNMP variables sysName,
sysLocation, and sysContact. These variables are used by SNMP management workstations
when obtaining data from managed switches.
To configure the switch identification:
1. At the Configure window, click the Switch tab. The Switch page is displayed with the
Identification tab selected (Figure 37).

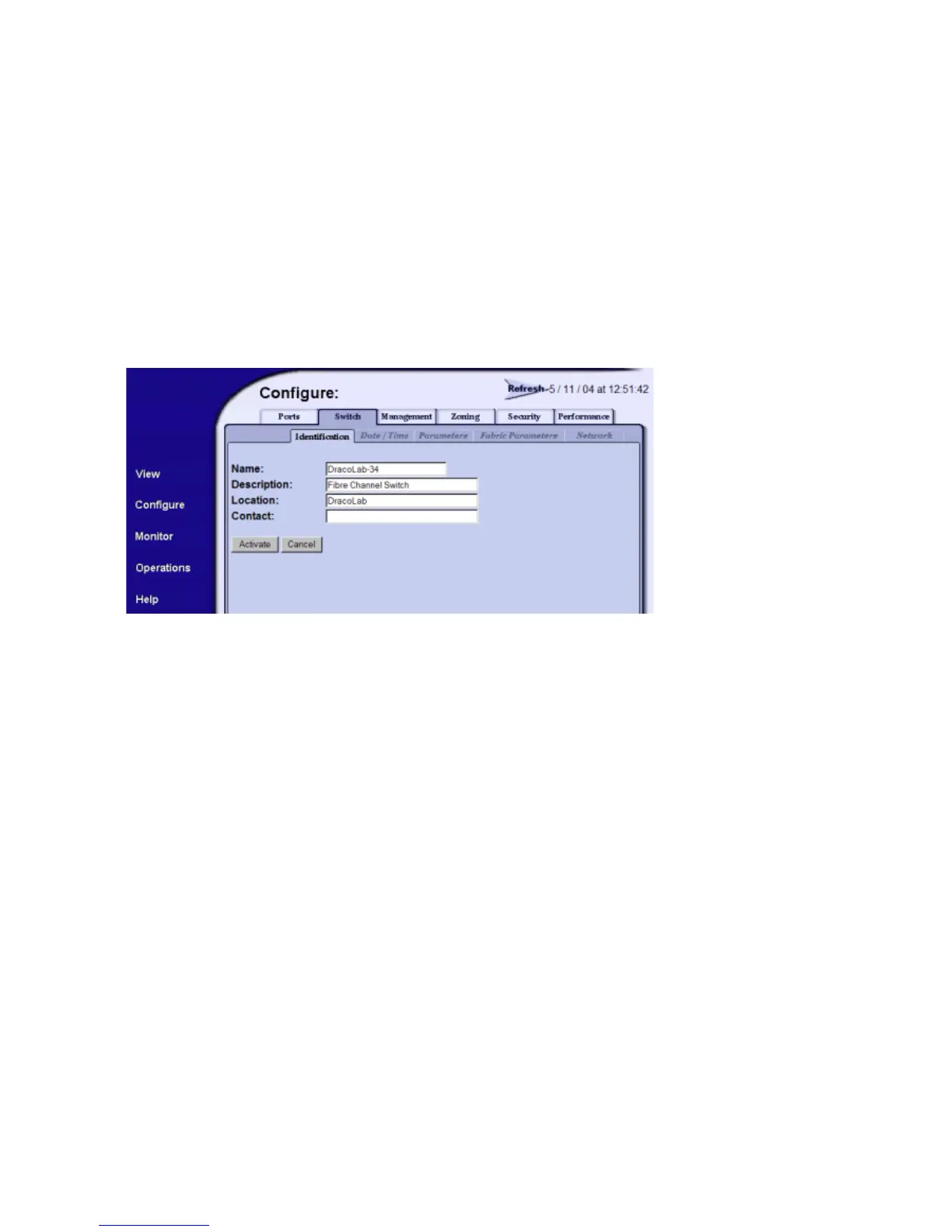

Figure 37 Configure Switch Identification tab
a. Enter a switch name of 24 or fewer alphanumeric characters in the Name field. Each switch
should be configured with a unique name.
If the switch is installed on a public LAN, the name should reflect the switch’s Ethernet
network DNS host name. For example, if the DNS host name is hpes232.hp.com, enter
hpes232.
b. Enter a switch description (255 or fewer alphanumeric characters) in the Description field.
c. Enter the switch physical location (255 or fewer alphanumeric characters) in the Location
field.
d. Enter the name of a contact person (255 or fewer alphanumeric characters) in the Contact
field.
2. Click Activate to configure the switch identification and close the dialog box.
