Print from Autodesk AutoCAD

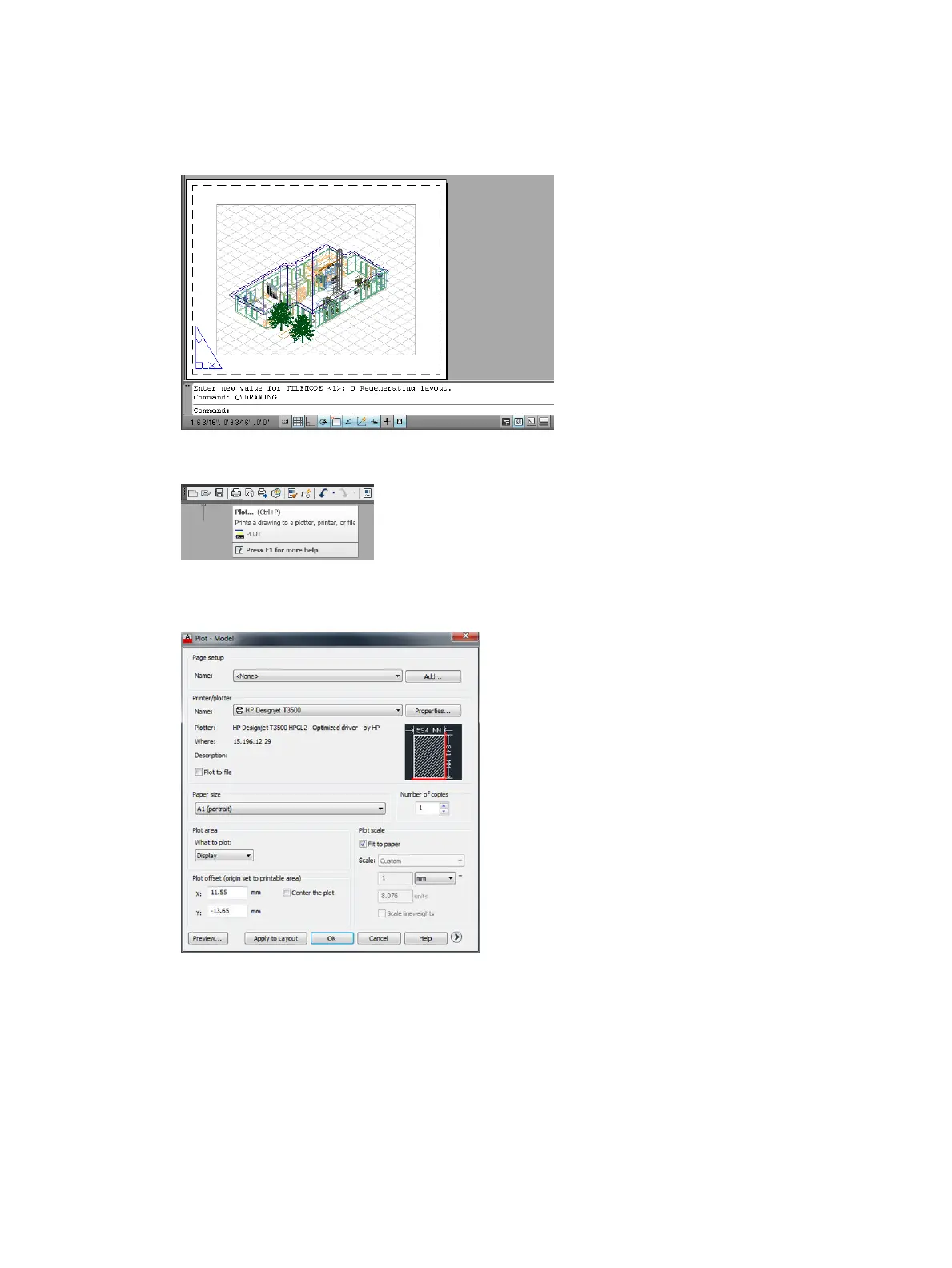

1. The AutoCAD window can show a model or layout. Normally a layout is printed rather than the model.

2. Click the Plot icon at the top of the window.

3. The Plot window opens. You can see further options by pressing the circular button in the lower right

corner of the window.

120 Chapter 13 Practical printing examples ENWW
