The printer’s main components

The following front and rear views of the printer illustrate the main components.

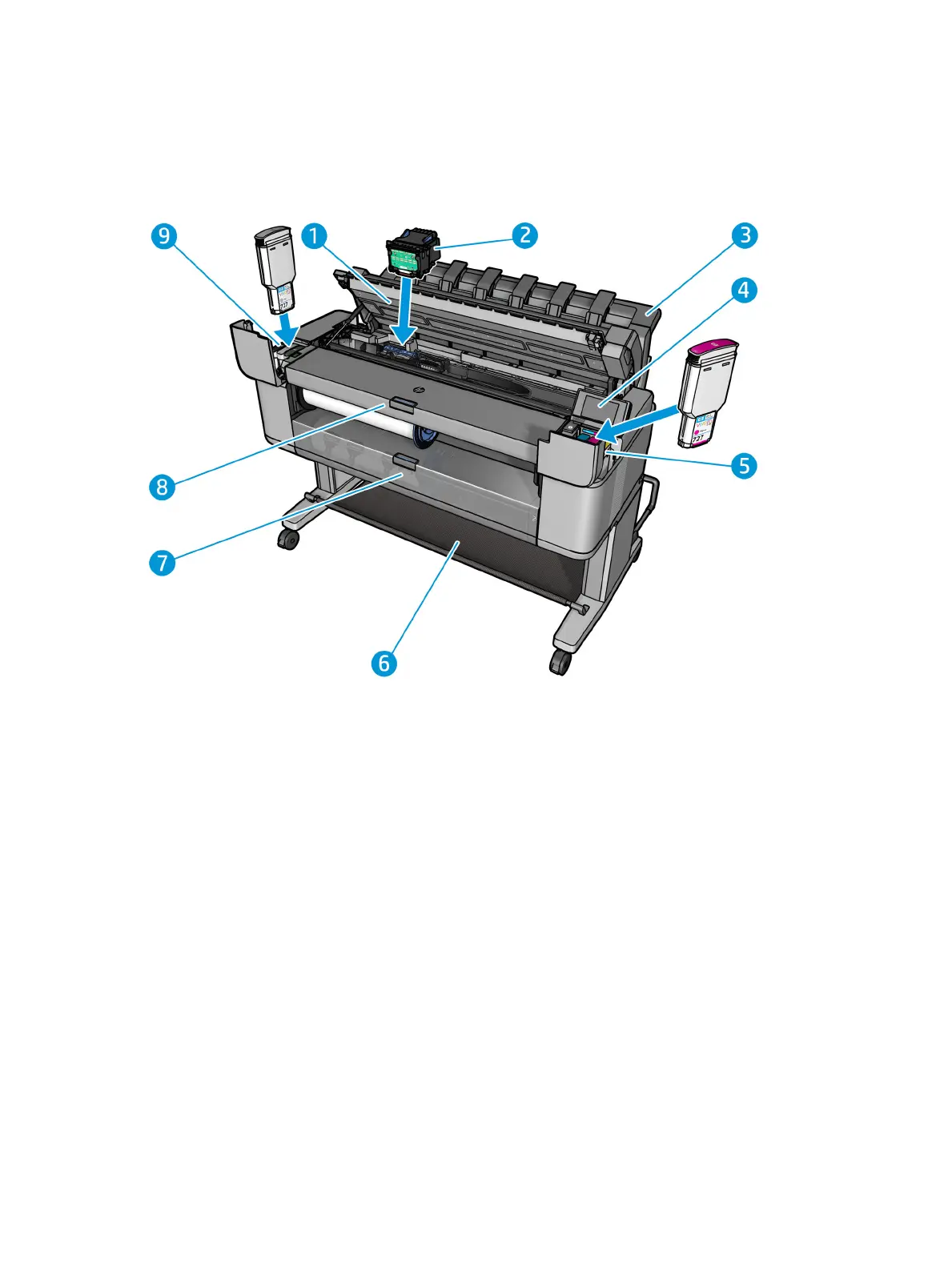

Front view

1. Scanner

2. Printhead

3. Stacker

4. Front panel

5. Ink cartridges

6. Basket

7. Lower roll cover

8. Upper roll cover
