HP t5745 - Thin Client User Manual

To set Network attributes:
1. Click Control Panel > Setup > Network.
2. Configure the connections on the Wired, Wireless and VPN tabs.
3. To import a connection, click Import and browse to the connection.
4. To export a connection, select the connection and click Export.
5. Click Close to close the Network Connections dialog box.
You can configure wired, wireless, and VPN connections in this utility.
Wired Connection

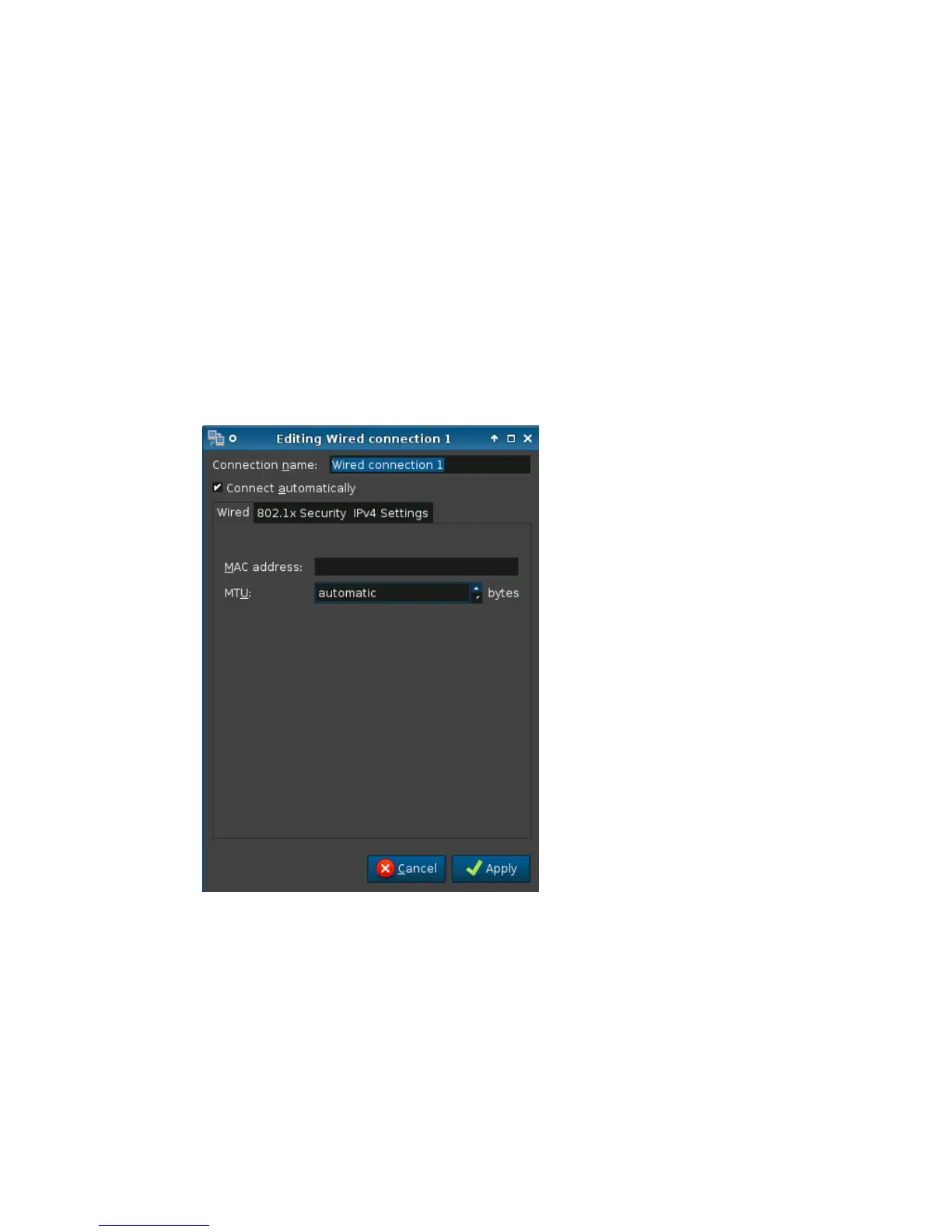

To add a wired network connection:
1. Click the Wired tab, and then click Add.
2. Choose whether or not to Connect automatically.
3. Configure the new setting by completing the information on the three tabs:
●
Wired
●
802.1x Security
●
IPv4 Settings
4. Click Apply to apply your settings and close the dialog box.
ENWW Control Panel 97

HP t5745 - Thin Client Specifications

General

Brand	HP
Model	t5745 - Thin Client
Category	Server
Language	English
