HP UPS Network Module User Manual

HP UPS Network Module web interface 20
• Schedule Shutdown ("Schedule Shutdown screen" on page 26)

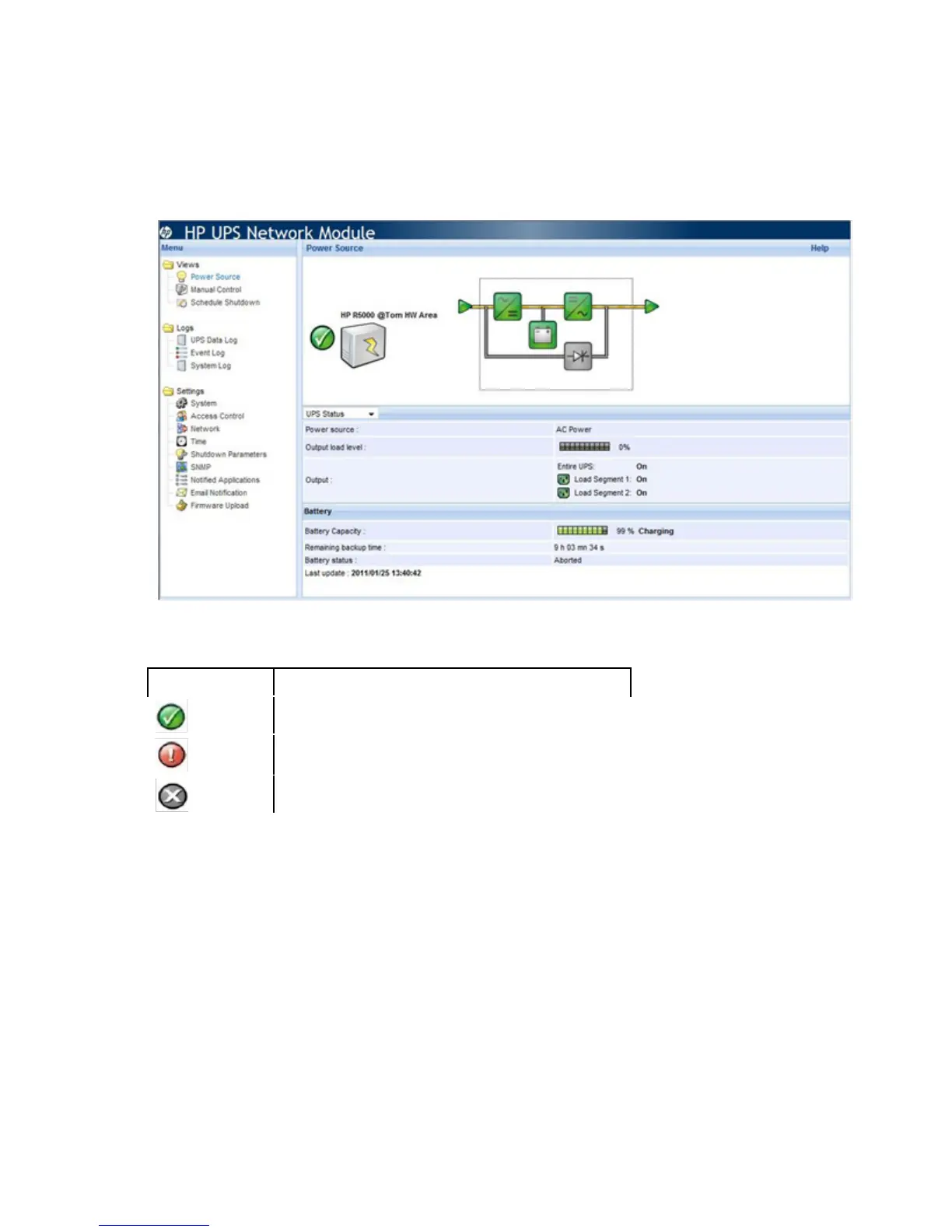

Power Source screen
Click Power Source in the menu tree to display the Power Source screen. This screen displays the overall
status of the UPS. The status information refreshes every 10 seconds.
The top part of the screen displays the following UPS information:
• UPS status icon—The current UPS status
Status icon Description
Green—Normal operation
Red—Alarm present
Click the icon to display the UPS alarms.
Gray—UPS communication loss
• UPS name—The name of the UPS
The UPS name is the generic name of the UPS model, and this name displays throughout the interface.
• UPS location—The location of the UPS
The UPS location can be modified on the System Settings screen (on page 30).
• UPS graphical representation—A graphical representation of the UPS model
• UPS operating mode diagram—An animated graphical representation of the UPS operating mode
showing the main UPS components and the electrical flow powering the load
If communication with the UPS is lost, the diagram appears gray. Diagrams do not display for
line-interactive UPSs.
• UPS measurements—A popup box that displays UPS data details
