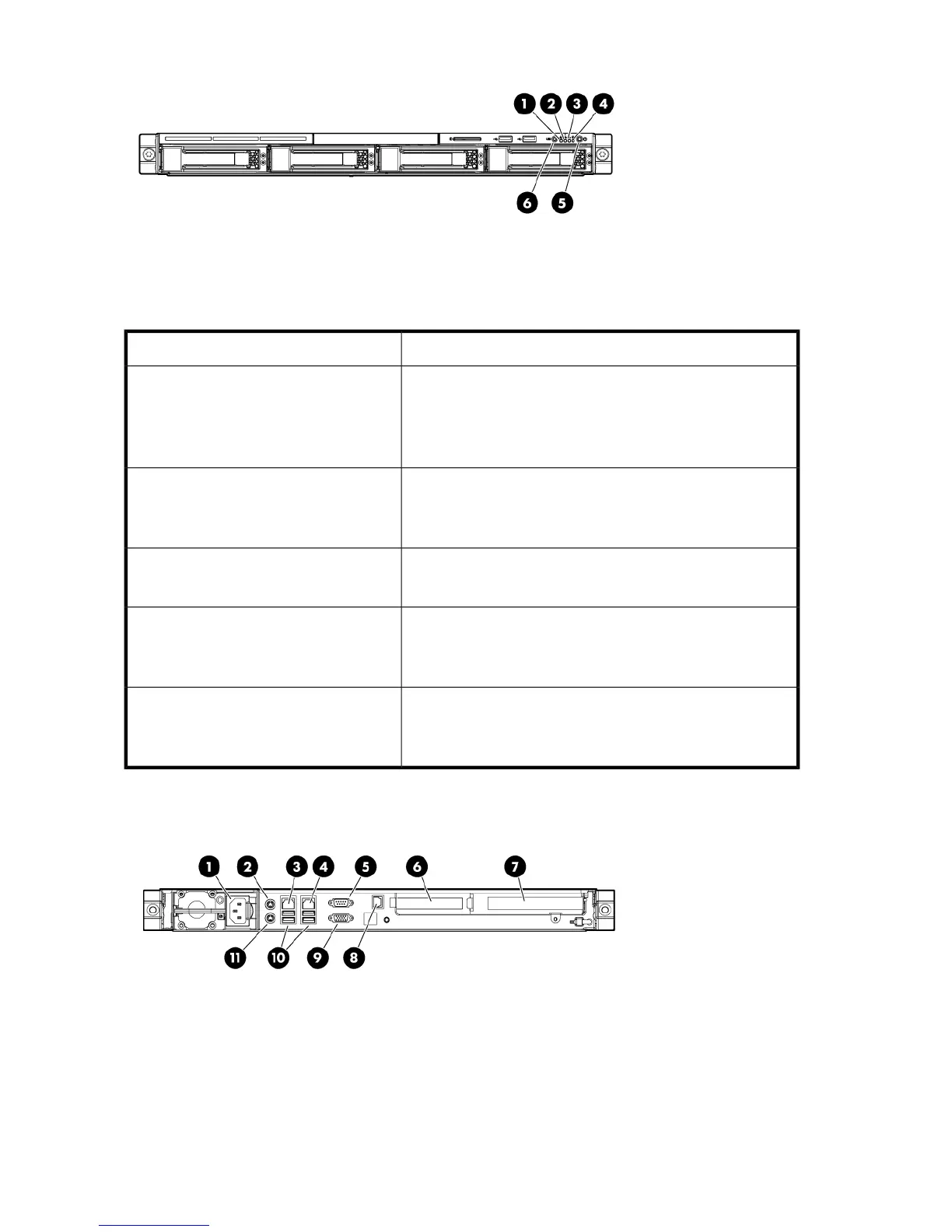

Figure 2 HP X1400 and X3400 front panel LEDs
.
Table 3 HP X1400 and X3400 front panel LED descriptions
StatusItem / Description
Green = System health is normal.
Amber = System health is degraded.
Red = System health is critical.
Off = System health is normal (when in standby mode).
1. Internal health LED
Green = Network link exists.
Flashing green = Network link and activity exist.
Off = No network link exists.
2. NIC 1 link/activity LED
3. NIC 2 link/activity LED
Green = Drive activity is normal.
Off = No drive activity exists.
4. Drive activity LED
Green = Normal (system on)
Amber = System is in standby, but power is still applied.
Off = Power cord is not attached or the power supply has failed.
5. Power On/Standby button and system
power LED
Blue = Identification is activated.
Flashing blue = System is being managed remotely.
Off = Identification is deactivated.
6. UID button/LED
Figure 3 HP X1400 and X3400 rear panel components
.
Storage system component identification24
