1. Power cord connector
2. Mouse connector
3. 10/100/1000 NIC 1 connector/shared iLO 2 management port
4. 10/100/1000 NIC 2 connector
5. Serial connector
6. Low profile PCIe slot cover (x16 slot open)
7. Full-sized PCIe slot (occupied by Smart Array P212 controller)
8. Dedicated iLO 2 management port (this port is optional and must be purchased separately)
9. Video connector
10. USB connectors (2)
11. Keyboard connector

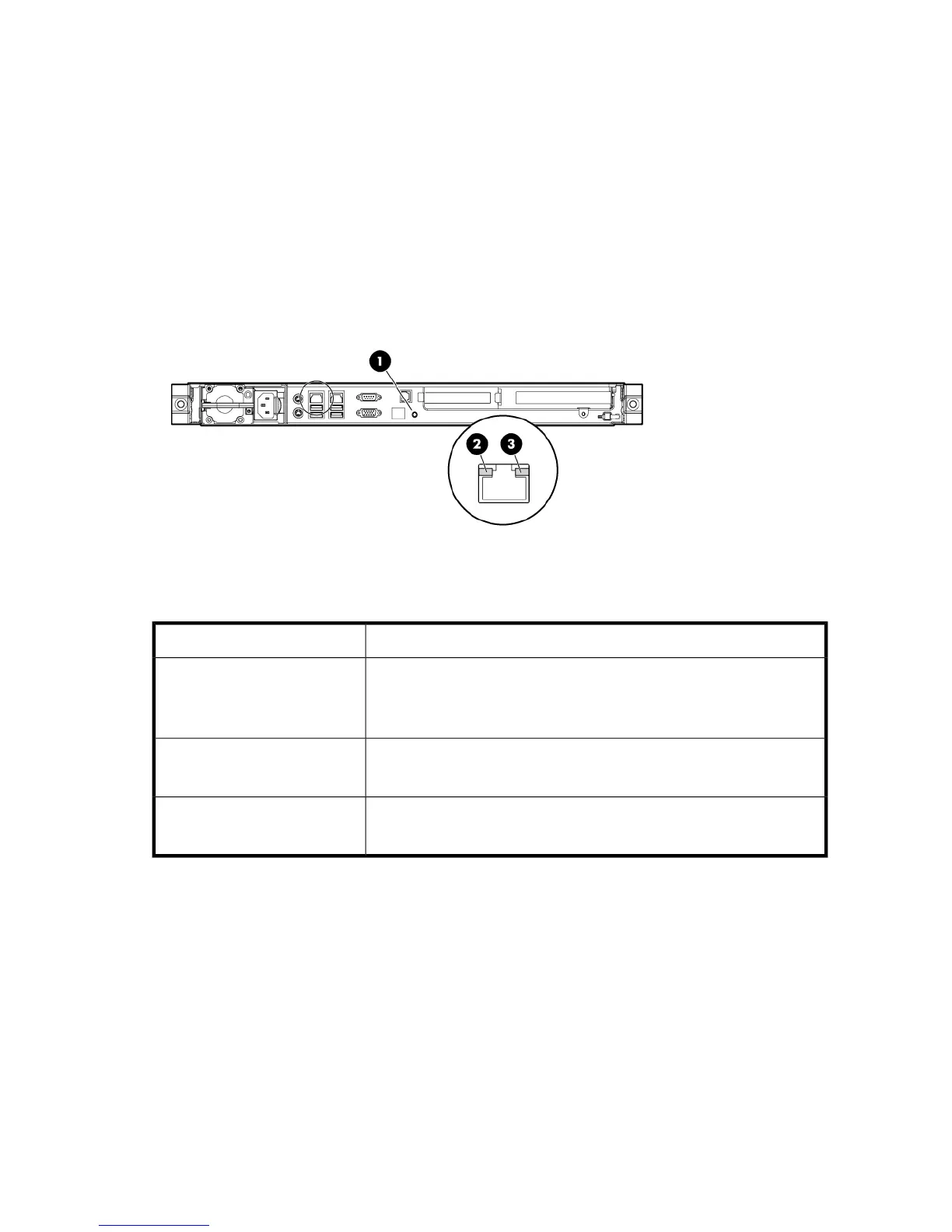

Figure 4 HP X1400 and X3400 rear panel LEDs
.
Table 4 HP X1400 and X3400 rear panel LED descriptions
StatusItem / Description
Blue = Activated
Flashing = System is being managed remotely.
Off = Deactivated
1. UID button/LED
Green or flashing green = Activity exists.
Off = No activity exists.
2. NIC/iLO 2 link
Green = Link exists.
Off = No link exists.
3. NIC/iLO 2 activity
HP X1500 Network Storage System hardware components
The following figures show components and LEDs located on the front and rear panels of the X1500
Network Storage System.
HP X1000 and X3000 Network Storage System User Guide 25
