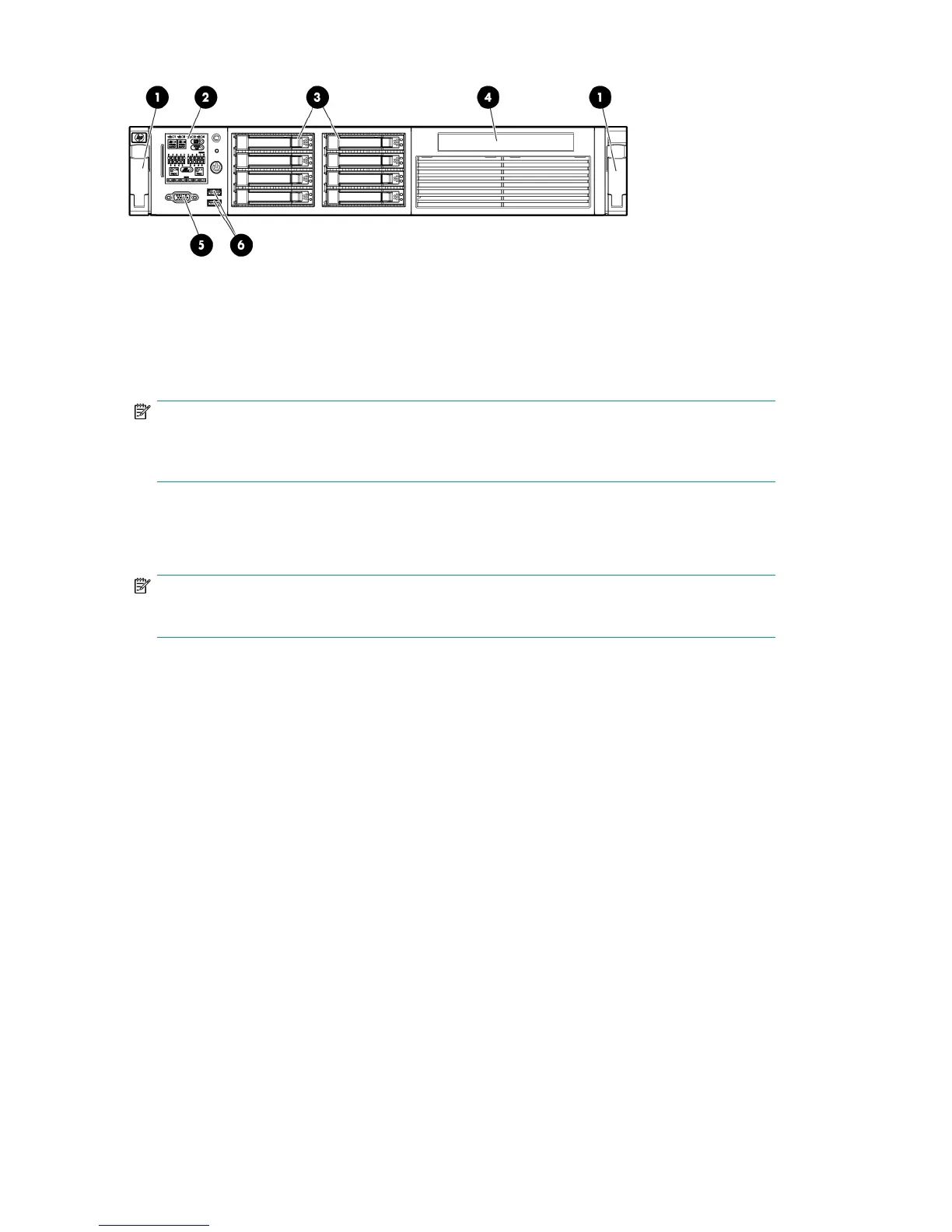

Figure 12 HP X1800 and X3800 front panel components
.
1. Quick release levers (2)
2. Systems Insight Display
NOTE:
See “Systems Insight Display LEDs” on page 36 and “Systems Insight Display LED
combinations” on page 38 for LED status information.
3. Eight (8) 2.5” SFF SAS / SATA hot plug hard drive bays (X3800 models)
All X1800 models include sixteen (16) 2.5” SFF SAS / SATA hot plug hard drive bays
NOTE:
See “SAS and SATA hard drive LED combinations” on page 35 for HDD LED status descriptions.
4. DVD-RW drive (available on X3800 models only)
5. Video connector
6. USB connectors (2)
Storage system component identification32
