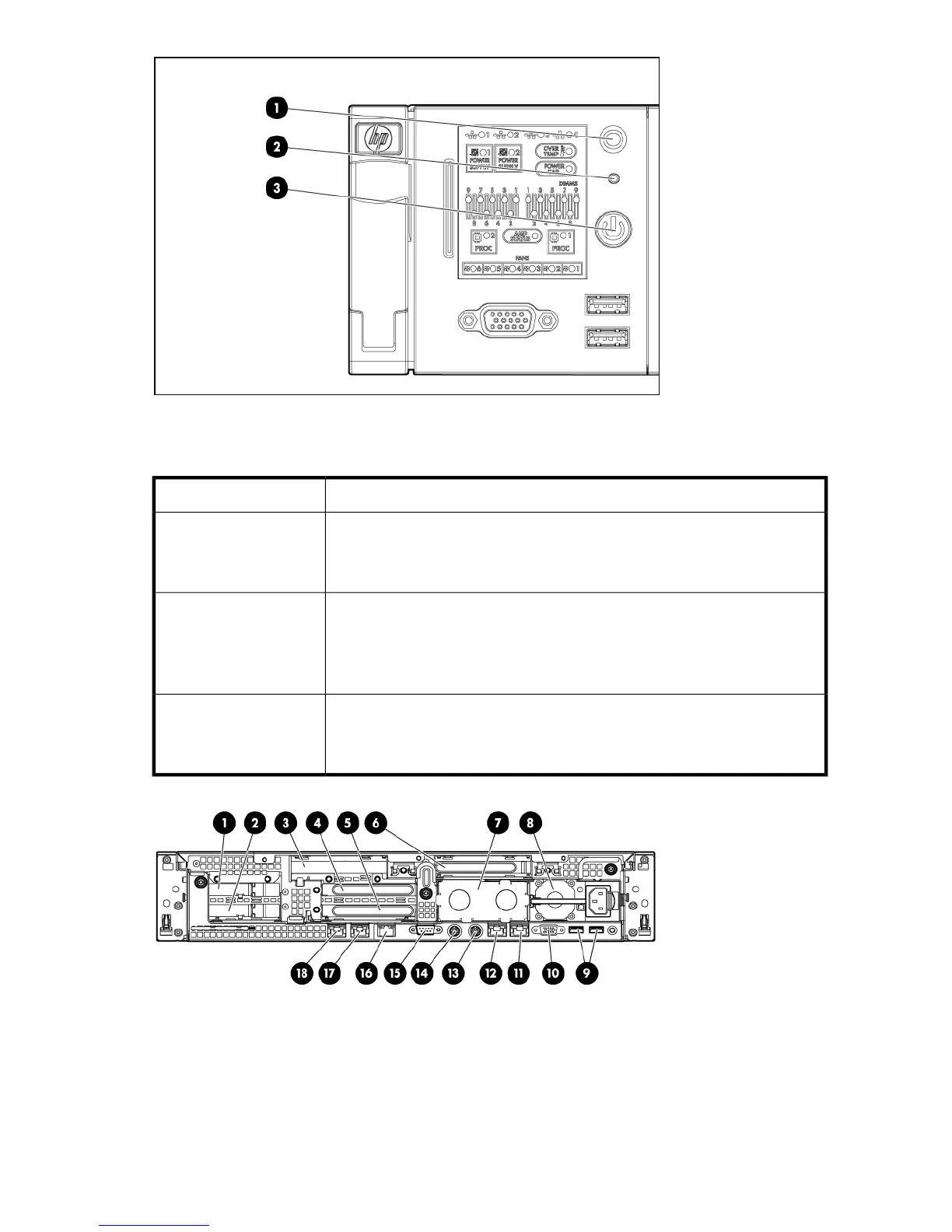

Figure 13 HP X1800 and X3800 front panel LEDs and buttons
.
Table 8 HP X1800 and X3800 front panel LED and button descriptions
StatusItem / Description
Blue = Activated
Flashing blue = System being remotely managed
Off = Deactivated
1. UID LED and button
Green = Normal
Amber = System degraded
Red = System critical
To identify components in degraded or critical state, see
2. System health LED
Green = System on
Amber = System in standby, but power is still applied
Off = Power cord not attached or power supply failure
3. Power On/Standby
button and system power
LED
Figure 14 HP X1800 and X3800 rear panel components
.
1. PCIe slot 5
HP X1000 and X3000 Network Storage System User Guide 33
