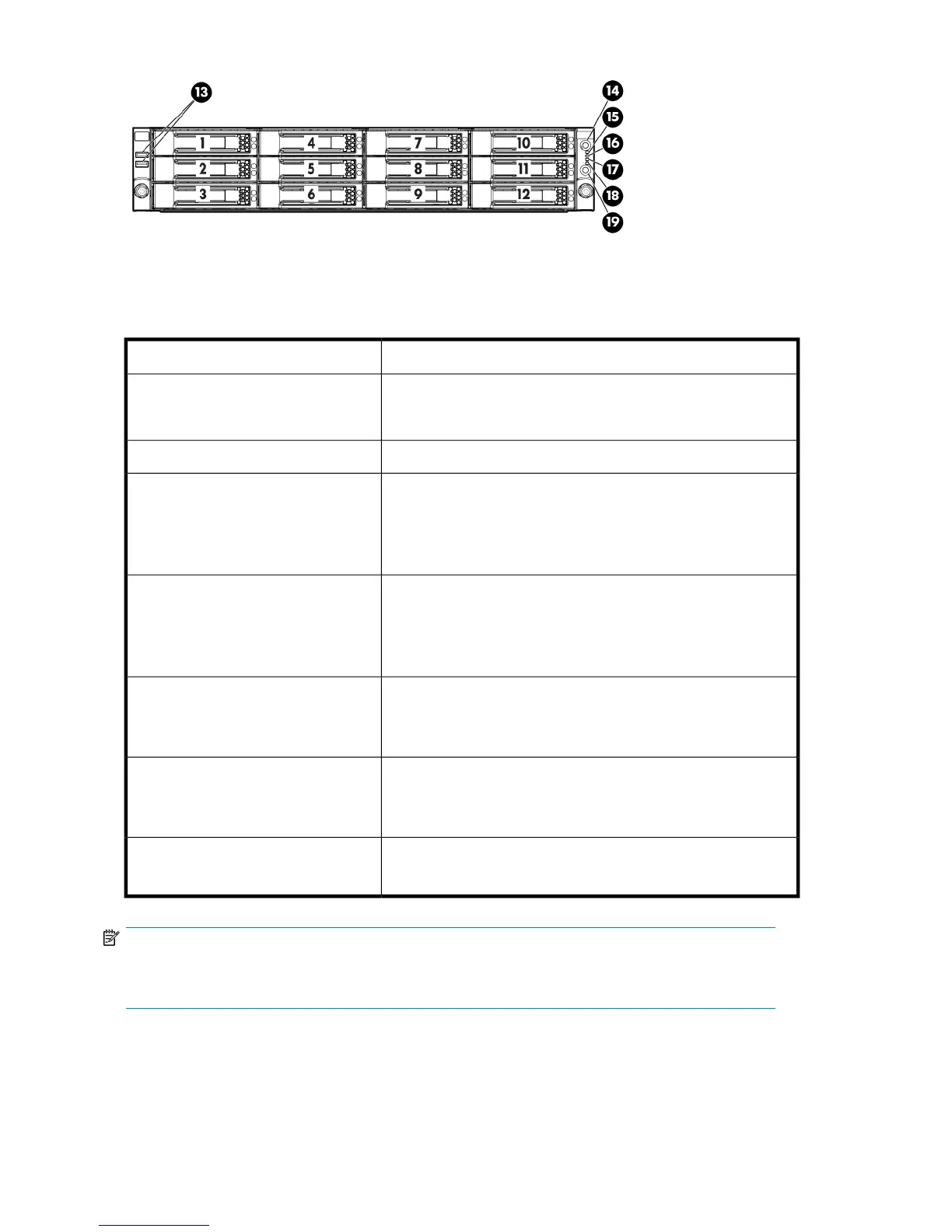

Figure 10 HP X1600 front panel components and LEDs
.
Table 7 HP X1600 front panel component and LED descriptions
StatusItem / Description
See “SAS and SATA hard drive LED combinations” on page 35 for
HDD LED status descriptions.
1 — 12. Twelve (12) 3.5” (LFF) hot plug
SATA / SAS hard drive bays (25 bays
for SFF models)
N/A13. Front USB ports (2)
Green = Normal (system on)
Flashing amber = System health degraded
Flashing red = System health critical
Off = Normal (system off)
14. Unit identification (UID) LED button
Green = Normal (system on)
Flashing amber = System health degraded
Flashing red = System health critical
Off = Normal (system off)
15. System health LED
Green = Network link
Flashing = Network link and activity
Off = No network connection
16. NIC1 LED
17. NIC2 LED
Green = HDD install ready
Flashing green = Data access
Off = No access
18. HDD LED
Green = System on
Amber = System off
19. Power button
NOTE:
The HP X1600 is also available with twenty-five (25) 2.5” Small Form Factor (SFF) hot plug SATA /
SAS hard drive bays.
Storage system component identification30
