• The HP XP7 SNMP Agent User Guide describes the SNMP API interface for the HP XP7 disk
array and provides instructions for configuring and performing SNMP operations.
• The HP XP7 Provisioning for Open Systems User Guide and HP XP7 Volume Shredder for
Open and Mainframe Systems User Guide provide instructions for configuring multiple custom
volumes (logical units) under single LDEVs on the HP XP7 disk array. The HP XP7 Provisioning
for Open Systems User Guide also provides instructions for configuring size-expanded logical
units by concatenating multiple logical units to form individual large logical units.
Remote Web Console
Remote Web Console is installed on a PC, laptop, or workstation. It communicates via a LAN to
the SVP in the HP XP7 disk array. The SVP obtains disk array configuration and status information
and sends user initiated commands to the disk array. The Remote Web Console GUI displays
detailed disk array information and allows users to configure and perform storage operations on
the system.
Remote Web Console is provided as a Java applet program that can be executed on any machine
that supports a Java Virtual Machine (JVM). A PC hosting the Remote Web Console software is
called a remote console. Each time a remote console accesses and logs into the SVP of the desired
disk array, the Remote Web Console applet is downloaded from the SVP to the remote console.

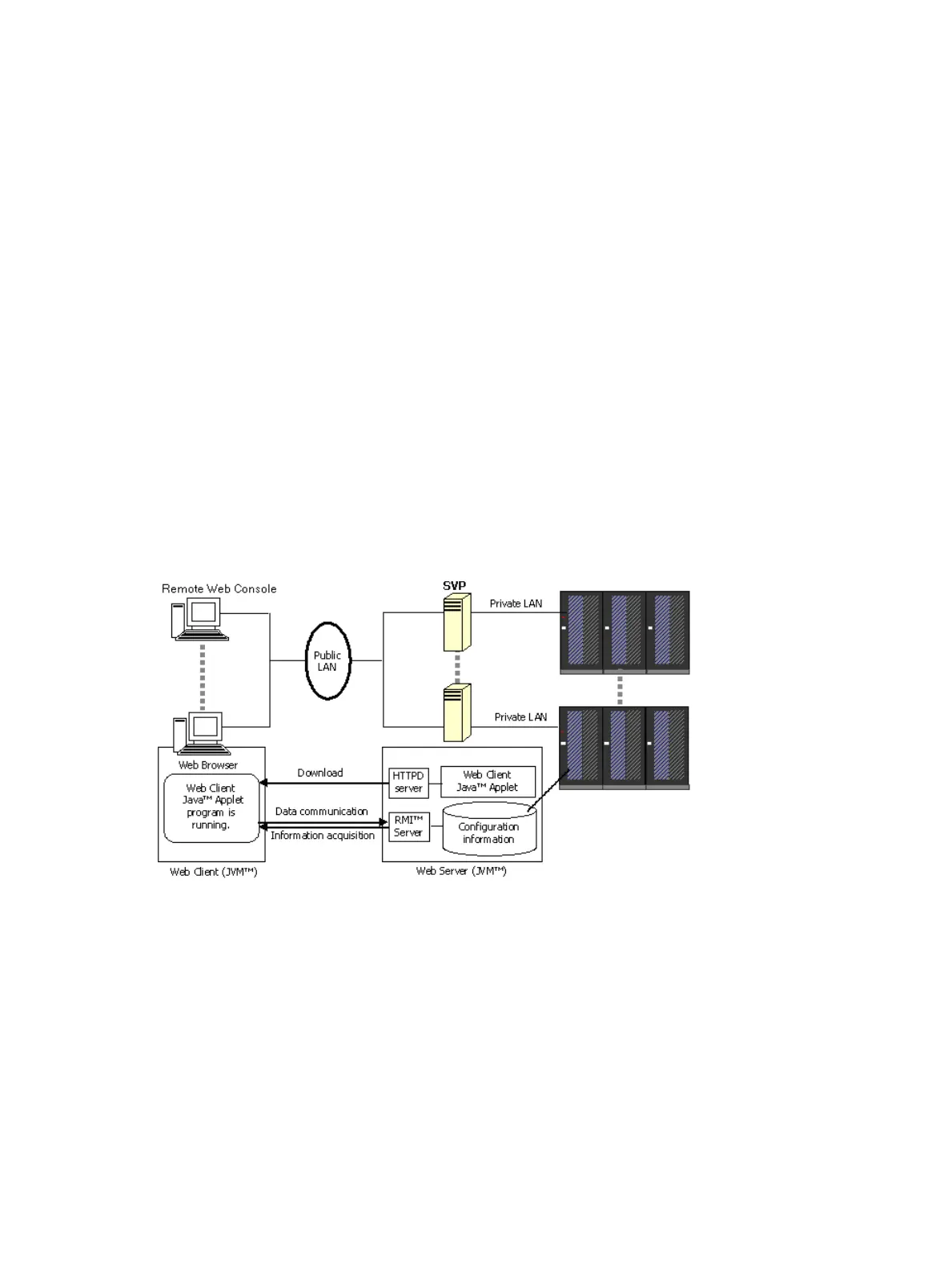

Figure 10 (page 53) illustrates remote console and SVP configuration for Remote Web Console.
For further information about Remote Web Console, see the HP XP7 Remote Web Console User
Guide.
Figure 10 Remote Web Console and SVP configuration
Remote Web Console 53
