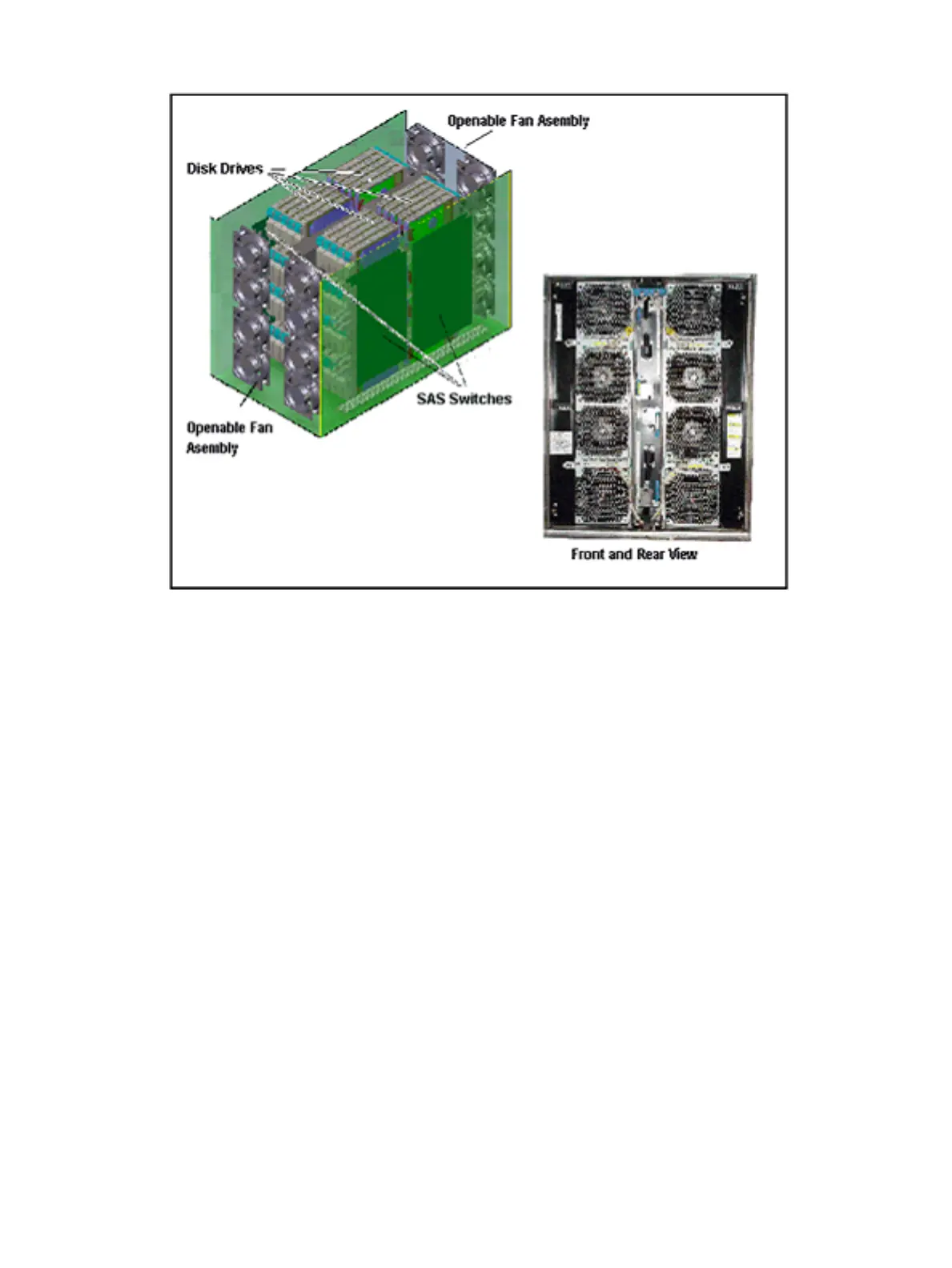

Figure 3 Disk Unit
Features
This section describes the main features of the HP XP7 disk array.
Scalability
The HP XP7 disk array is highly scalable and can be configured in several ways as needed to
meet customer requirements:
• The minimum configuration is a single rack containing one controller chassis and two drive
chassis.
• One to three racks containing one controller chassis and up to eight drive chassis. A drive
chassis can contain up to 192 2 1/2 disk drives, 96 3 1/2 disk drives, or 192 SSDs. Drives
can be intermixed. See Table 2 (page 13) for details.
• The maximum configuration is a six rack twin version of the above that contains two controller
chassis and up to 16 drive chassis containing up to 2304 2 1/2 inch disk drives. The total
internal raw physical storage space of this configuration is approximately 4511 TB (based
on 4 TB HDDs).
Features 9
