HP xw8600 Hardware Setup Guide

7 Perform the procedures in the Autodesk Visual Effects and Finishing Software Installation Guide, Autodesk
Lustre Software Installation Guide for Windows Workstations or the Autodesk Lustre Software Installation
Guide for Linux Workstations to install and license your Visual Effects, Finishing, and Colour Grading
application.
Typical Configuration Overview for Autodesk Effects and Finishing
Applications

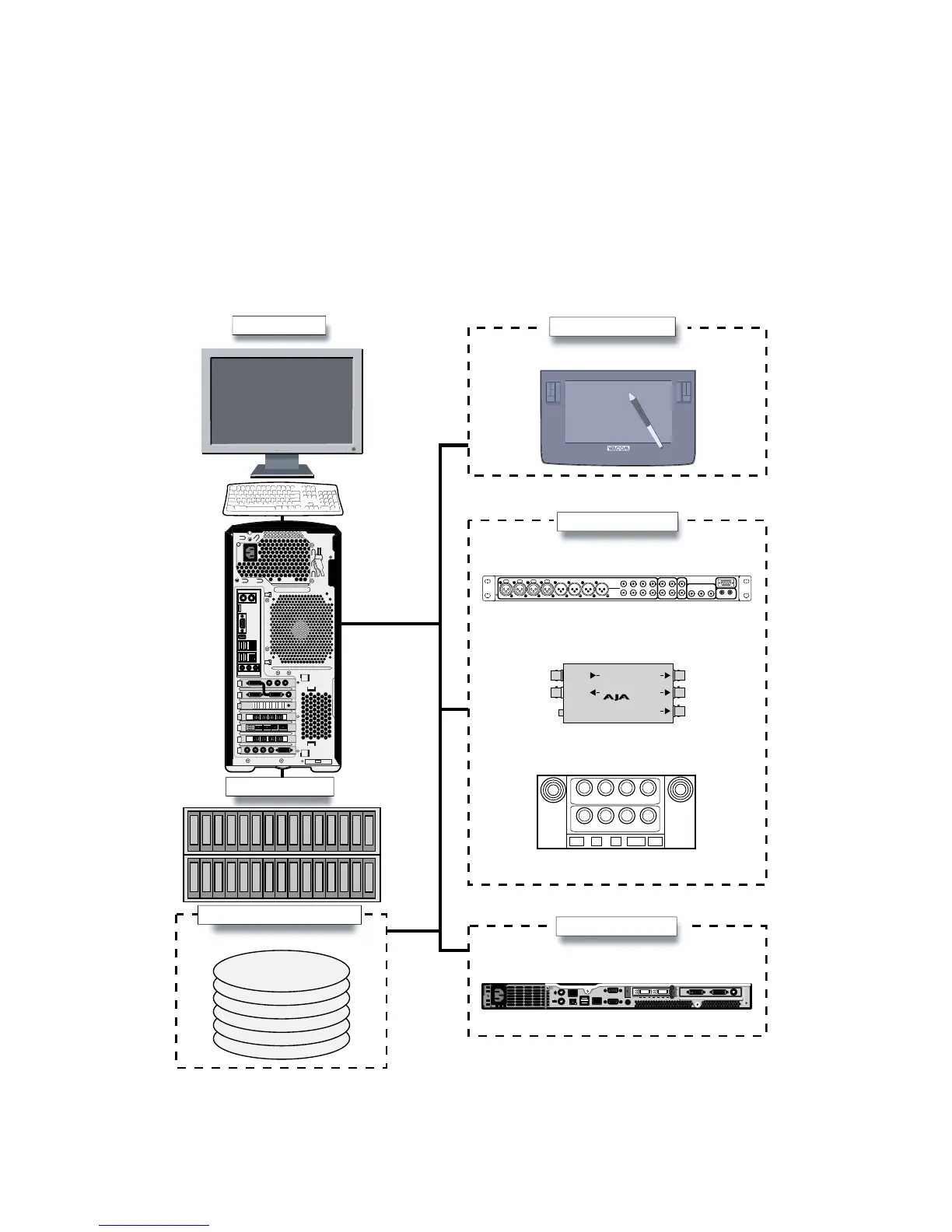

The following illustration shows a typical configuration, including the Wacom tablet, and other optional
components.
AJA BOB (breakout box)
Background Rendering (Burn)
Workstation
Storage
Peripheral Options
Network Options
Stone Shared
SAN and Archive options
WACOM Tablet
POWER
SERIAL
INPUT
SERIAL
OUTPUT 4
SERIAL
OUTPUT 3
SERIAL
OUTPUT 2
SERIAL
OUTPUT 1
LOCK
MODEL HD5DA
SERIAL DISTRUBUTION
AMPLIFIER
HDTV
AJA HD5DA Distribution Amplifier
IN IN
OUT OUT
IN IN
OUT OUT
Video Tape Recorder
Ref Loop
RS-422
SDI 1/A SDI 2/B
In
Out
Ch.1(L) Ch.2(R)
Y/G/CVBS Pb/B/Y Pr/R/C
Video MonitorOut
Ch. 1/2 Ch. 3/4
In
Out
Ch. 5/6
In
Out
In
Out
Ch. 1/2 Out Ch. 3/4 Out Ch. 5/6 Out Ch. 7/8 OutCh. 1/2In
Ch. 3/4In
Ch. 5/6In
Ch. 7/8In
AES/EBU
Audio
Ch. 7/8
AJA BOB (Front)
Video Options
4 | Chapter 2 Getting Started

HP xw8600 Specifications

General

Chipset	Intel 5400
Form Factor	Tower
Processor	Intel Xeon 5400 series
Memory	Up to 32GB DDR2 FB-DIMM
Storage	SATA or SAS hard drives
Graphics	NVIDIA Quadro or ATI FirePro
Operating System	Windows XP, Vista, or Linux
Expansion Slots	PCI, PCI-X, PCIe
Power Supply	800W
