HP xw8600 Hardware Setup Guide

1 3 4 5 6 7 8
PWR
NETGEAR
2
Autodesk Control Surface
5V DC 4A Ethernet
Autodesk
Tablet
S
ystem
Power
Link
Activit y
-
+

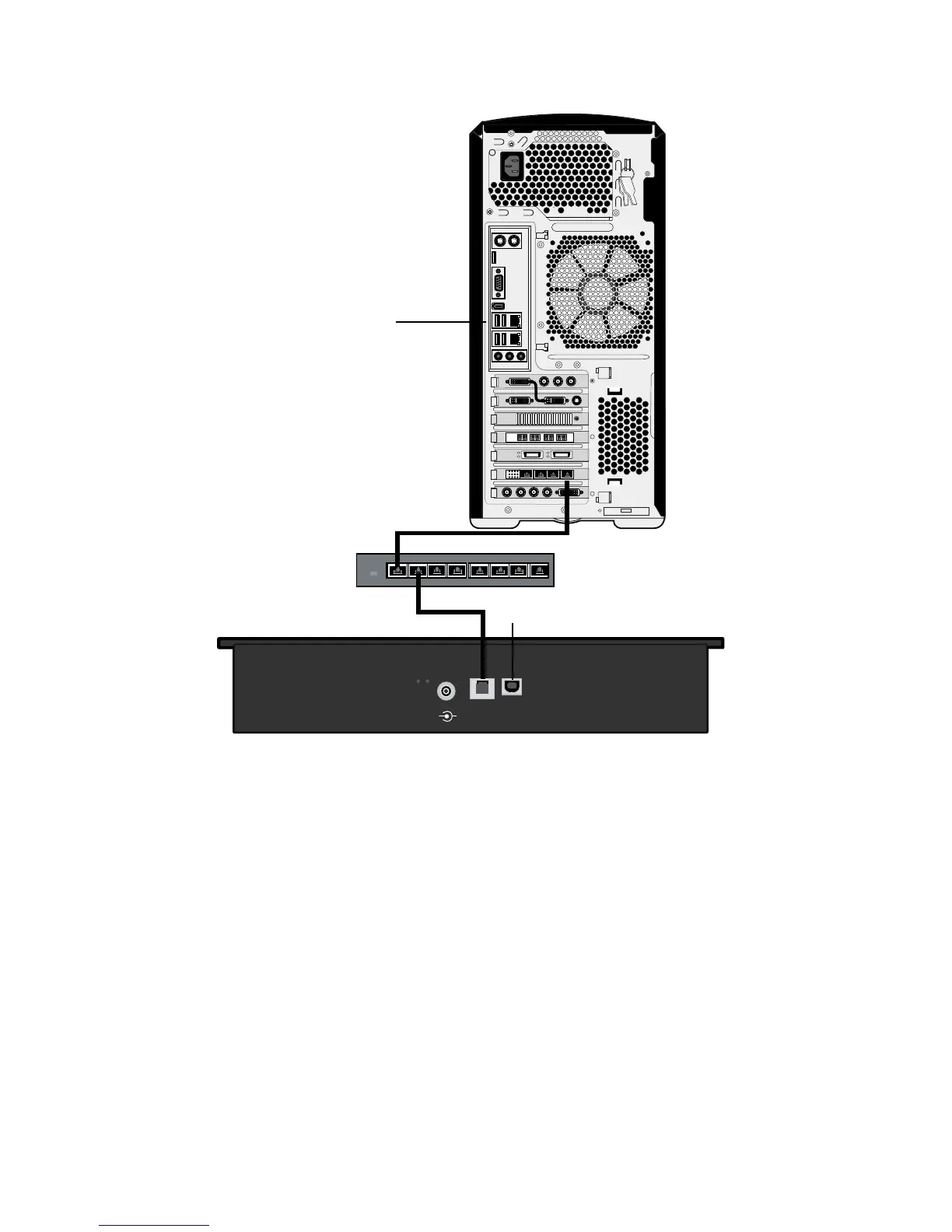

Network Switch
To USB extender
Ports 3 and 4 to
additional panels
To port 1 on USB Extender
HP xw8600 Workstation
If you are using only one panel, you can connect that panel directly to the workstation, instead of using
the switch.
Connecting the Autodesk Control Surface | 19

HP xw8600 Specifications

General

Chipset	Intel 5400
Form Factor	Tower
Processor	Intel Xeon 5400 series
Memory	Up to 32GB DDR2 FB-DIMM
Storage	SATA or SAS hard drives
Graphics	NVIDIA Quadro or ATI FirePro
Operating System	Windows XP, Vista, or Linux
Expansion Slots	PCI, PCI-X, PCIe
Power Supply	800W
