HP xw8600 Hardware Setup Guide

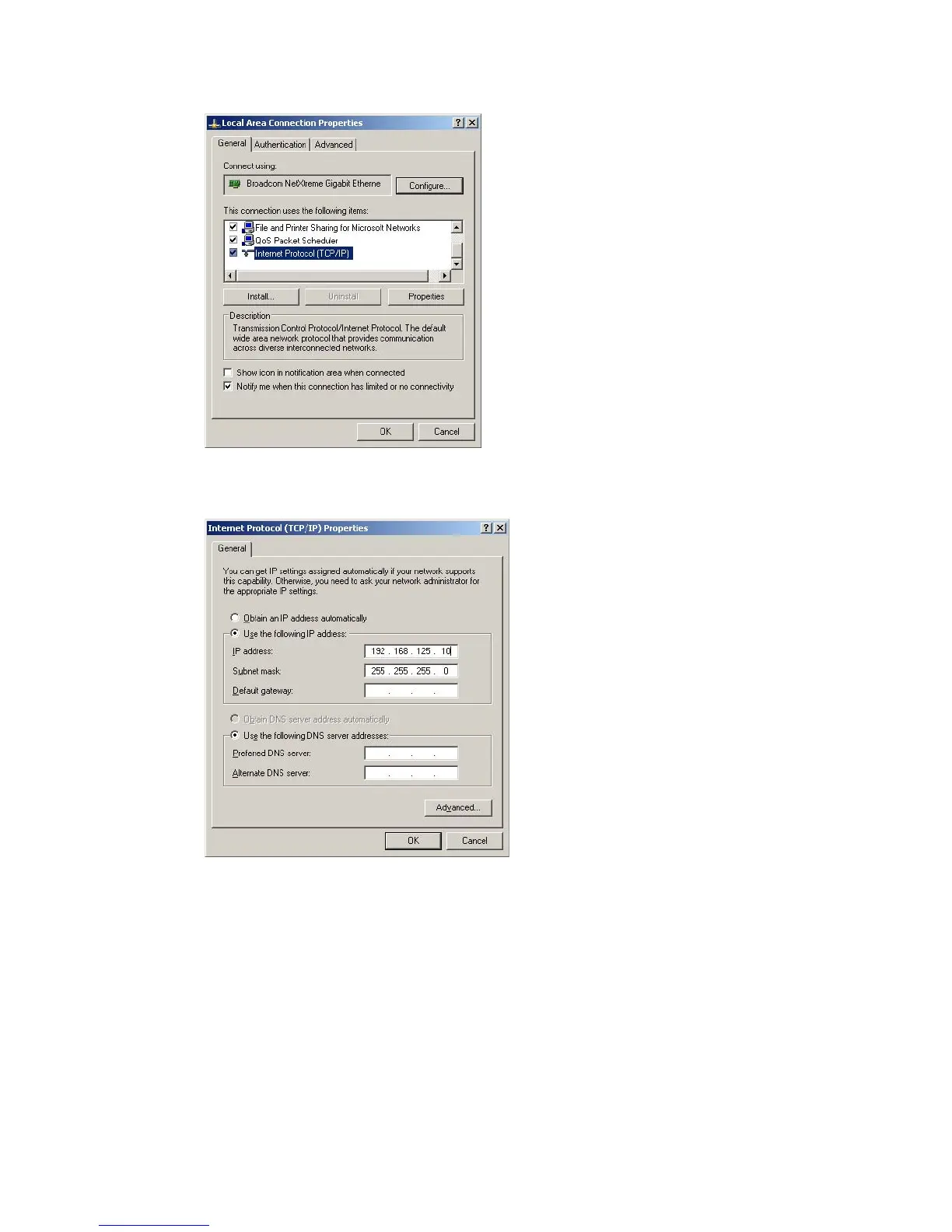

3 In the Local Area Connections Properties dialog box, select Internet Protocol (TCP/IP) and click Properties.
The Internet Protocol (TCP/IP) Properties dialog box opens.
4 Select the Use the following IP address option.
5 Set a static IP and Subnet mask address for the port. Select values that do not conflict with any other
machine on your network. Consider using the following values:
■ IP address: 192.168.125.10
■ Subnet mask: 255.255.255.0
6 Click OK twice.
To configure the Autodesk Control Surface on Linux-based Workstations:
1 Type:
Configuring the Autodesk Control Surface | 21

HP xw8600 Specifications

General

Chipset	Intel 5400
Form Factor	Tower
Processor	Intel Xeon 5400 series
Memory	Up to 32GB DDR2 FB-DIMM
Storage	SATA or SAS hard drives
Graphics	NVIDIA Quadro or ATI FirePro
Operating System	Windows XP, Vista, or Linux
Expansion Slots	PCI, PCI-X, PCIe
Power Supply	800W
