HP xw8600 Hardware Setup Guide

WHT
BLK
BLK
RED
GND
MALE DB9
2 -RX -
7 -RX +
8 -TX -
3 -TX+
8 -TX -
3 -TX +
2 -RX -
7 -RX+
4 - GND (SHIELD)
4 - GND (SHIELD)
PAIR 1
PAIR 2

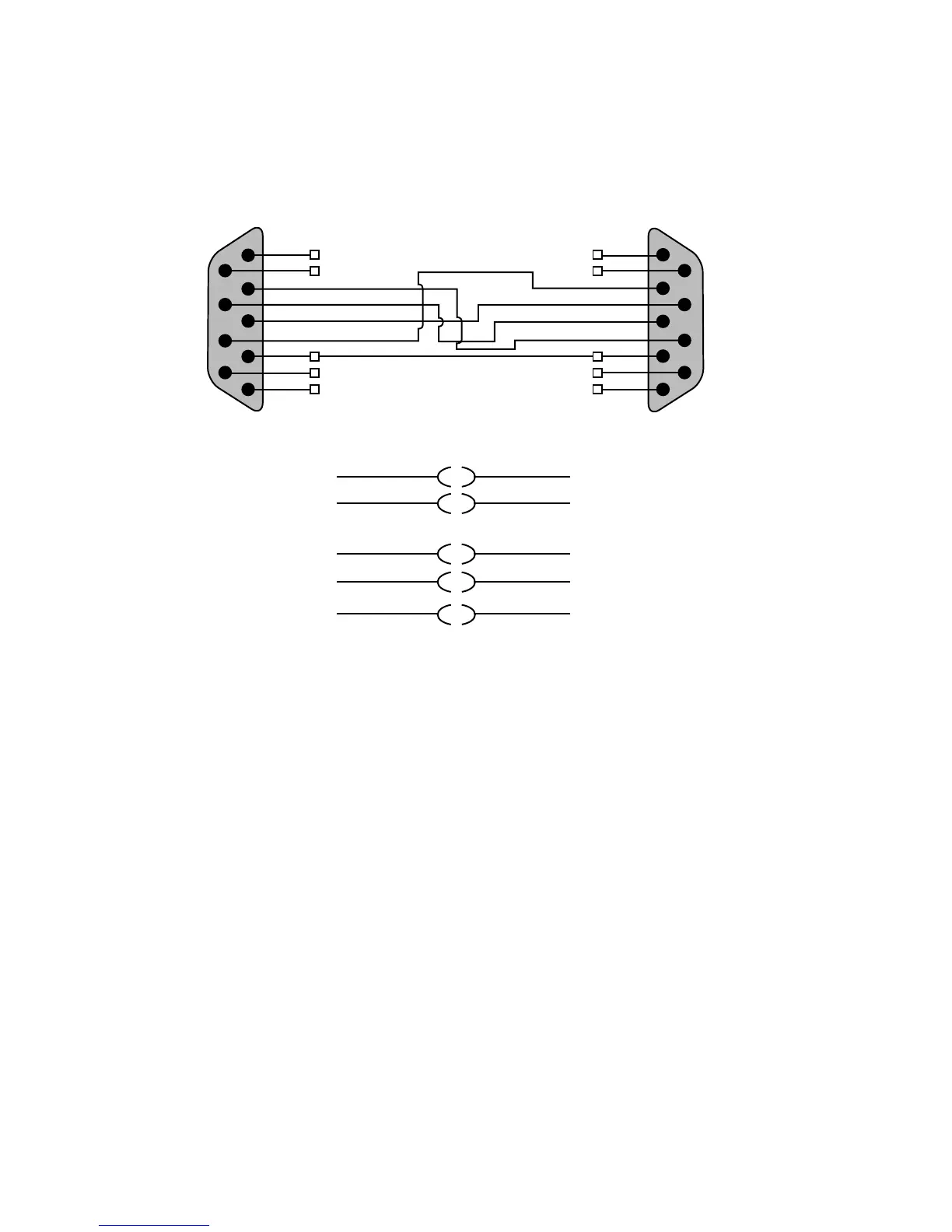

VTR-Emulation Control Cable:
3rd-Party Device Master Controlling Linux (AJA) Emulator
3rd-Party Device Master
Linux(AJA) Emulator
OEM-2K: MALE DB9
OEM-LH: FEMALE DB9
1
6
2
7
3
8
4
9
5
1
6
2
7
3
8
4
9
5
RS-422
30 | Chapter 4 Setting Up Video Hardware

HP xw8600 Specifications

General

Chipset	Intel 5400
Form Factor	Tower
Processor	Intel Xeon 5400 series
Memory	Up to 32GB DDR2 FB-DIMM
Storage	SATA or SAS hard drives
Graphics	NVIDIA Quadro or ATI FirePro
Operating System	Windows XP, Vista, or Linux
Expansion Slots	PCI, PCI-X, PCIe
Power Supply	800W
