5. Attach a data cable from a SATA connector on the system board to the hard drive, and attach a
power cable to the drive.

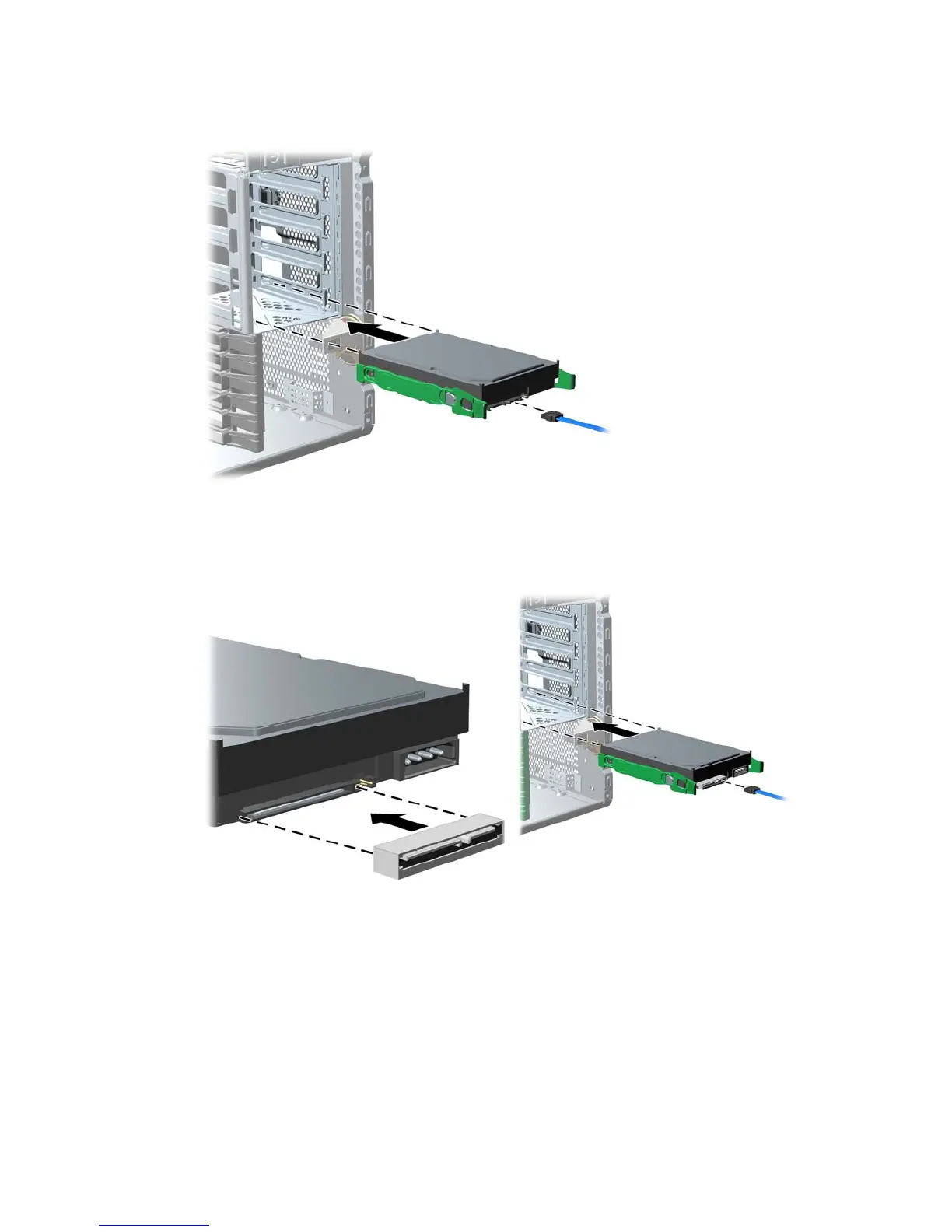

Figure 4-41 Replacing the SATA hard drive
6. For a SAS hard drive, attach a SAS/SATA adapter to the connector on the hard drive. Attach a
data cable from a SAS connector on the system board to the hard drive, and attach a power cable
to the drive.
Figure 4-42 Installing the SAS/SATA adapter (left) and cable (right)
ENWW Removing and replacing components 89
