HP Z24U G3 - Illustrated Parts Catalog

9
3 Illustrated parts catalog

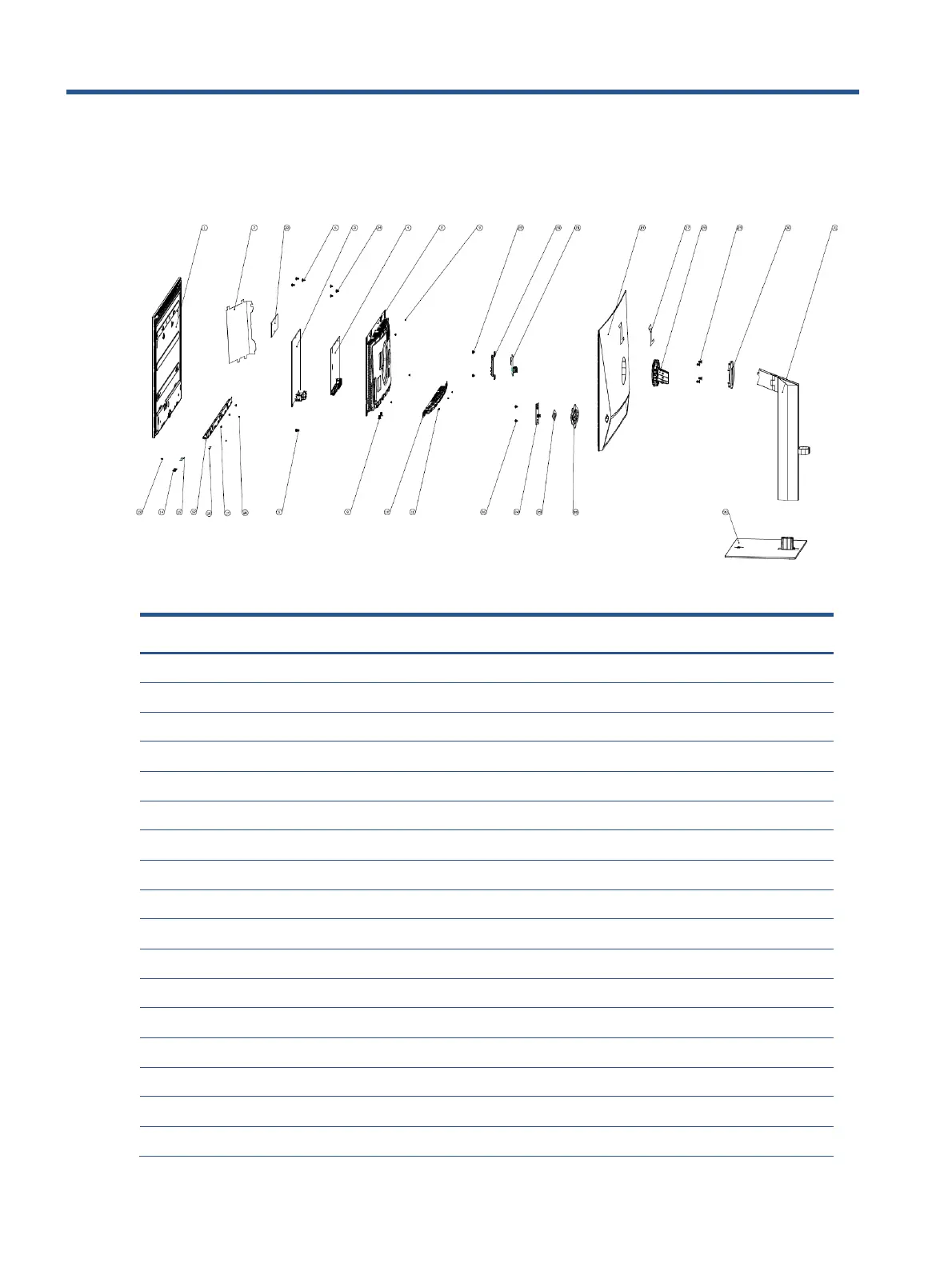

To identify the monitor major components, use this illustration and table.
Table 3-1: Monitor major components and their descriptions
Item
Description
Qty
1
LCM Module Z24u G3
1
2
Main Chassis Bracket Z24u G3
1
3
Power Board Z24u G3
1
4
Interface Board Z24u G3
1
5
Scrw M3*7.5 Tapping Metal
1
6
Scrw_Cap Head_M4*8_CHQ1018
3
7
Power Mylar Z24u G3
1
8
SCRW_tapping_wafer_M3*8.0_White Ni
2
9
Scrw Mac Wafer M3*0.5*L4NI
4
10
IO Cover Z24u G3
1
11
Scrw MAc Wafer M3*0.5*L4NI
3
12
Bezel Bottom Z24u G3
1
13
Power_Lens_Z24f_Z24_Z27
1
14
Power_Key_Z24f_Z24_Z27
1
15
Power Key Board Z Series
1
16
Scrw_Tapping_None_Flat_0.2mm_Head
2
17
Scrw_M2×2.7×0.8T_U2419H
3
