16

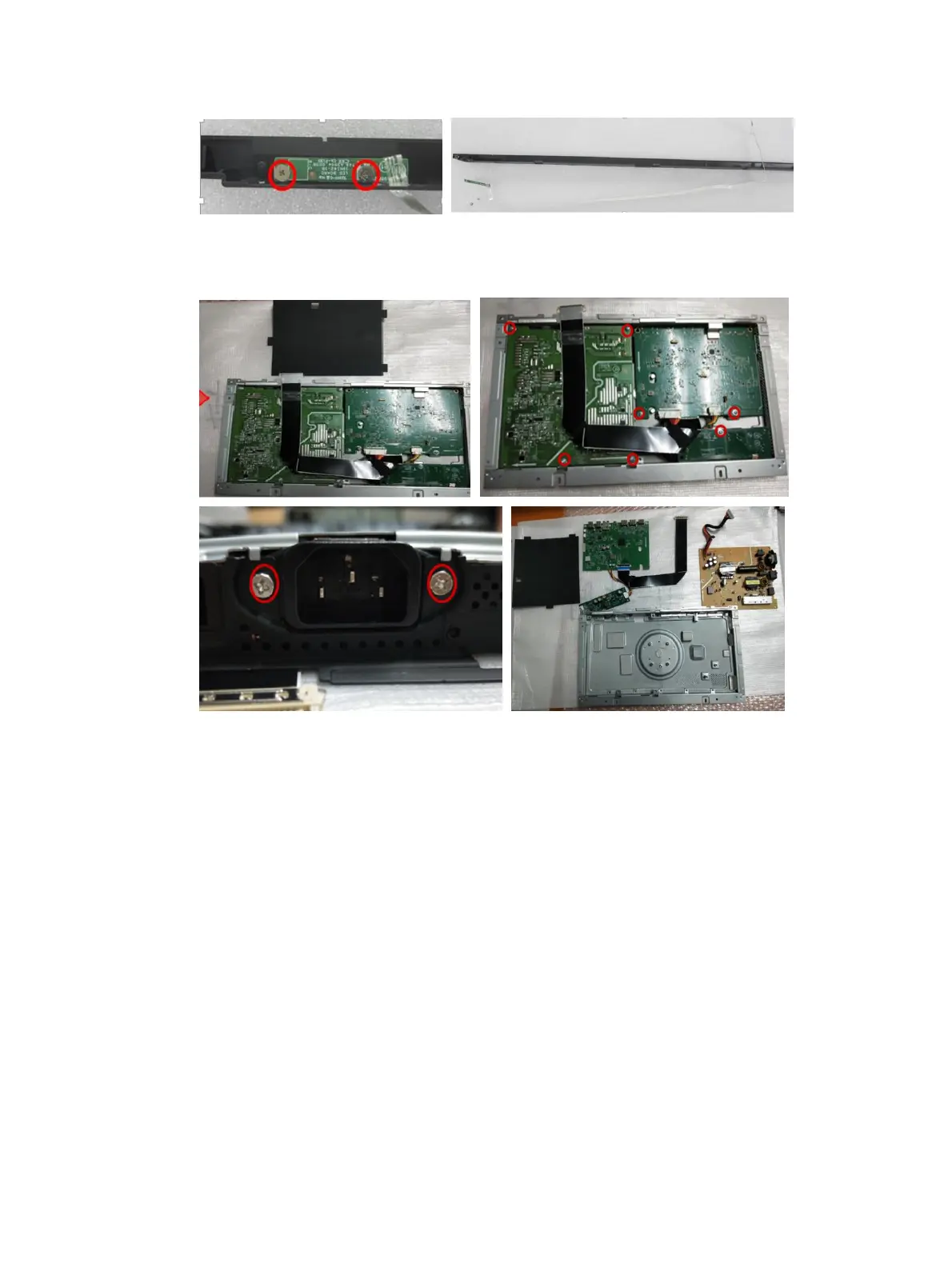

8) Remove Power Key Board from Bezel bottom assy.(Remove two screws)
9) Disassemble Bracket Assembly: remove black Mylar, then release the two AC screws from bracket, Release
the 7pcs screws for releasing the power board and interface board.
Power board
The power board part number is 755.A3905.0001.
Before removing the power board, follow these steps:
Prepare the monitor for disassembly. See Preparation for disassembly on page 13.
Remove the power board:
1) The HP Z24u G3 power board connector has no connector:
