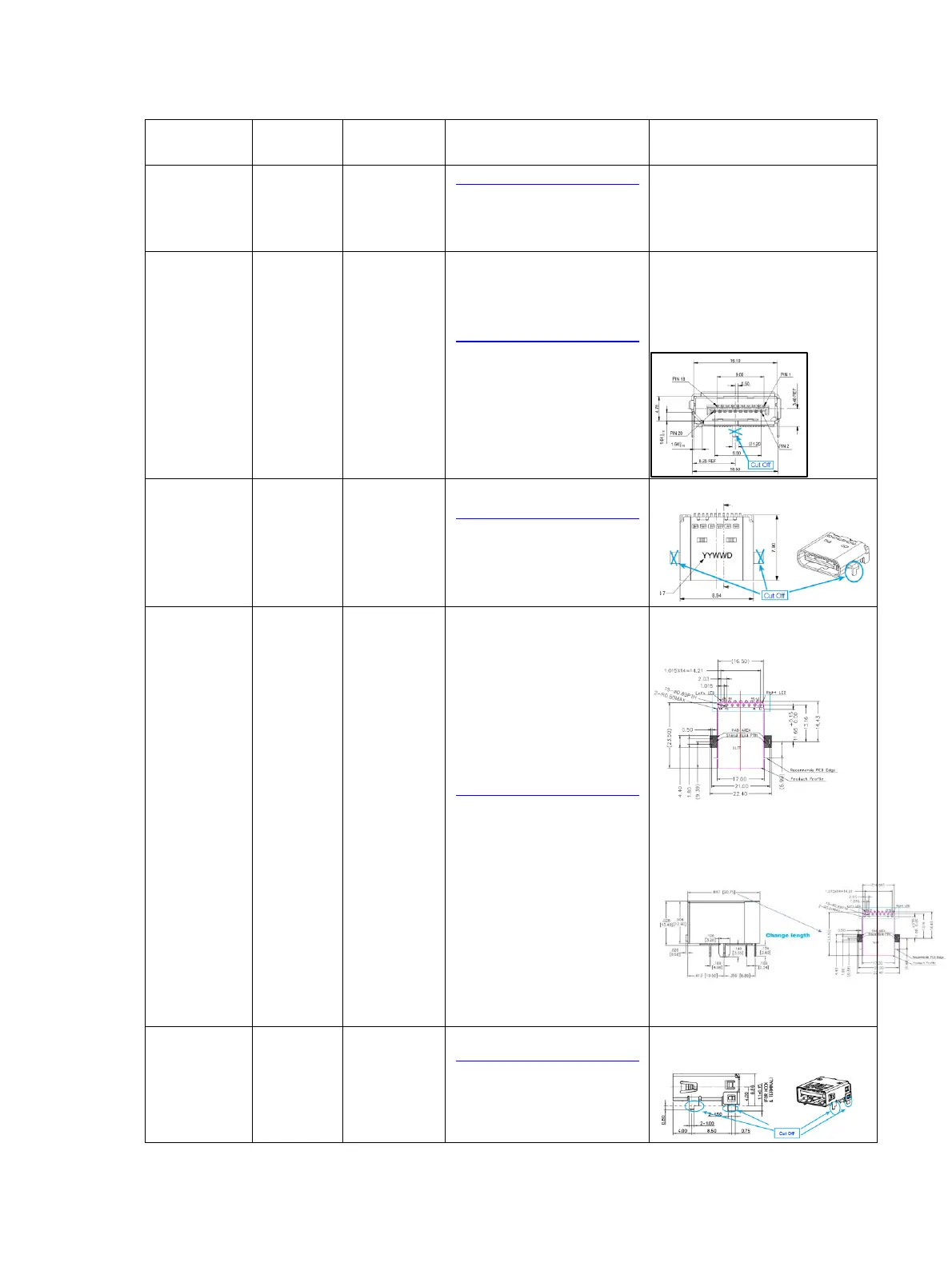

Connectors by manufacturer
Component
description
Location
identifier
Component
distributor
Distributer part number
Remark
HDMI
HDMI1
Switchcraft
Inc.
https://www.digikey.com
PN:
137-RAHHD19TR-ND
1.Modify the rear cover I/O
metal and plastic.
DP
DP1
DP2
Molex
https://www.digikey.com
PN:
WM14328DKR-ND
1. Only DP1.1
2. Modify the rear cover
I/O metal
3. Cut off the through hole
USB-C
USBC
Molex
https://www.digikey.com
PN:
900-2171840001DKR-ND
Cut off the Pin as below
RJ45
RJ45
Adam Tech
https://www.digikey.com
PN:
2057-MTJ-88TX1-LV-ND
1. Modify the pin type
as below.
2. Change the length
from 20.75mm to
23.5mm
3. Modify the rear cover
I/O metal and plastic.
USB-A
USB2
USB3
Molex
https://www.digikey.com
PN:
WM10413TR-ND
1.Cut off the Pin as below

HP Z24U G3 Specifications

General

Screen Size	23.8 inches
Resolution	1920 x 1200
Panel Type	IPS
Aspect Ratio	16:10
Contrast Ratio	1000:1
Refresh Rate	60 Hz
Color Gamut	99% sRGB
Viewing Angle	178° horizontal, 178° vertical
Adjustability	Height, Tilt, Swivel, Pivot
Response Time	5ms
Ports	1 x DisplayPort 1.4, 1 x USB-C
VESA Mount	100 x 100 mm
Brightness	300 cd/m²
Pixel Pitch	0.2745 mm
