HP Z24U G3 User Manual

14

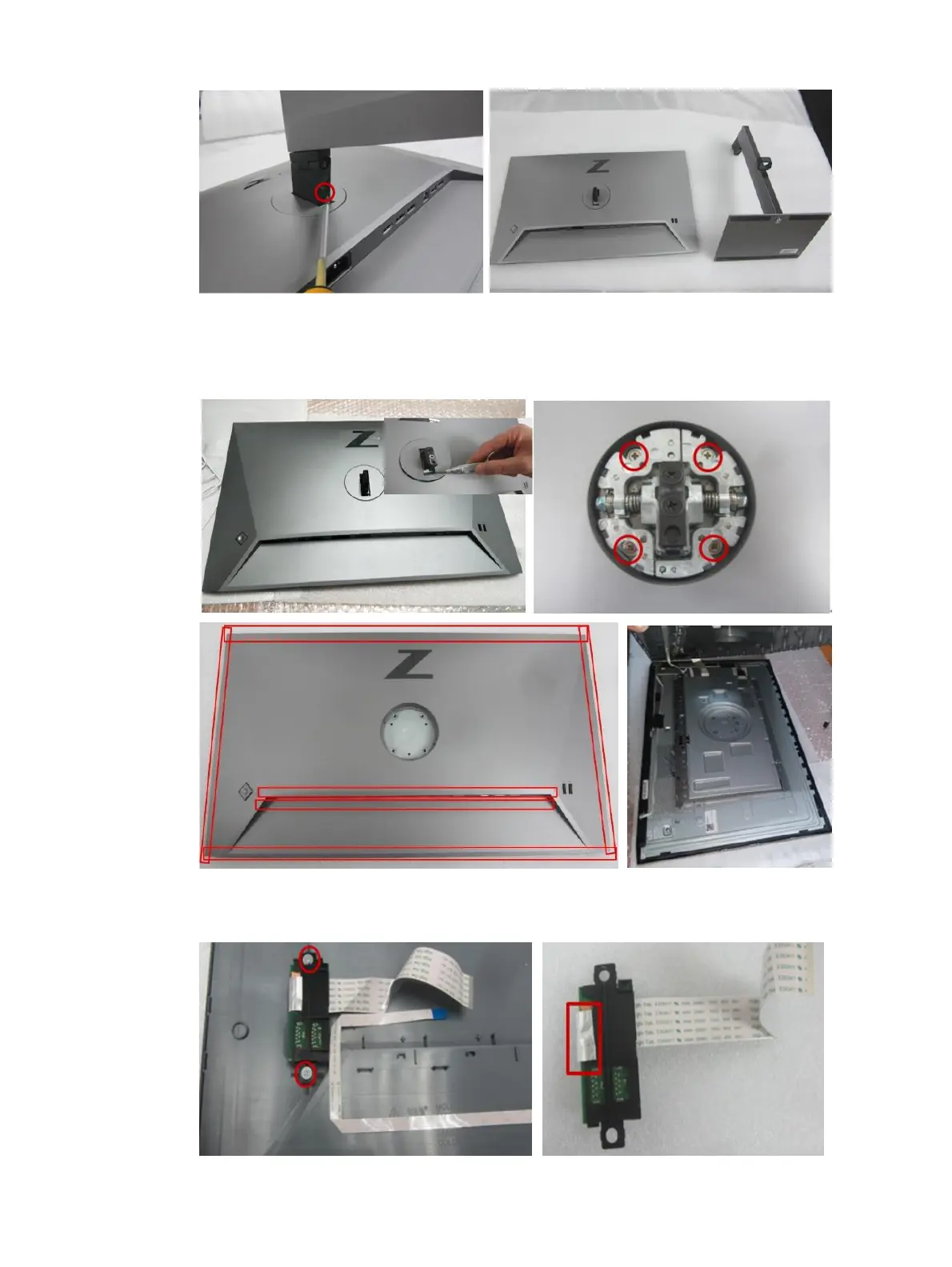

2) Remove Rear Cover From Display Head: Use the tool to remove the hinge cover, then Release the four
screws from back bracket and remove the hinge, then Loose all the hooks by hand for pulling the rear
cover
3) Remove USB BD Screws to remove USB BD: Remove the EMI gasket, then loose the two hooks by hand, then
remove the cable
4) Release OSD key BD from rear cover

HP Z24U G3 Specifications

General

Screen Size	23.8 inches
Resolution	1920 x 1200
Panel Type	IPS
Aspect Ratio	16:10
Contrast Ratio	1000:1
Refresh Rate	60 Hz
Color Gamut	99% sRGB
Viewing Angle	178° horizontal, 178° vertical
Adjustability	Height, Tilt, Swivel, Pivot
Response Time	5ms
Ports	1 x DisplayPort 1.4, 1 x USB-C
VESA Mount	100 x 100 mm
Brightness	300 cd/m²
Pixel Pitch	0.2745 mm
