Mounting brackets, chassis rails, and grounding cable
installation positions
The HPE FlexFabric 5950 switches provides the following installation positions on the chassis sides
for the installation accessories:
x
Mounting brackets—Power module-side mounting position, port-side mounting position, and
middle-mounting position.
x
Chassis rails—Three installation positions at the power module side and three at the port side.
x
Grounding cable—A primary grounding point (with a grounding sign) and an auxiliary
grounding point.
Select installation positions for the mounting brackets, chassis rails, and grounding cable as
required.

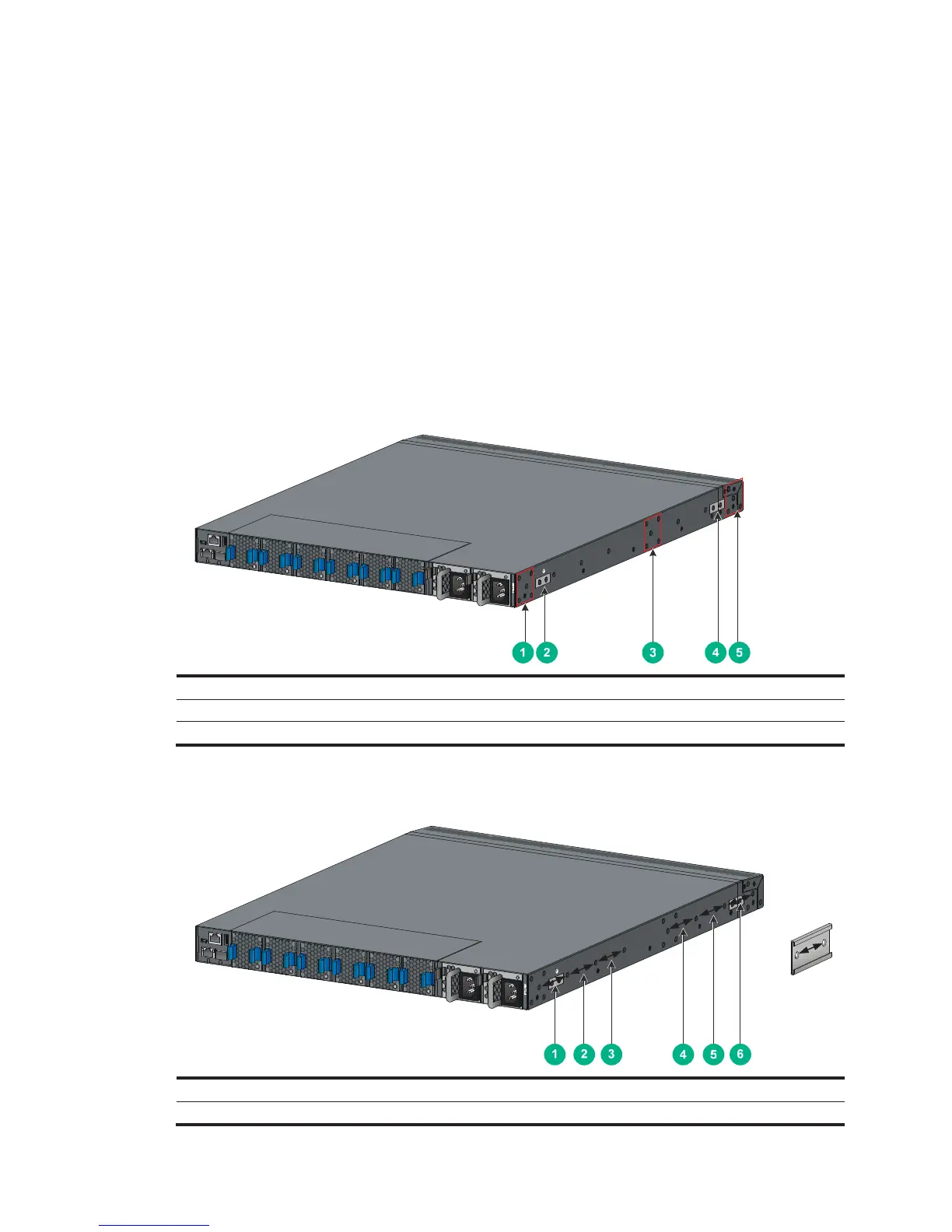

Figure 5 Mounting brackets and grounding cable installation positions on the HPE
FlexFabric 5950 32QSFP28/HPE FlexFabric 5950 32QSFP28 TAA
(1) Power module-side mounting position (2) Primary grounding point
(3) Middle-mounting position (4) Auxiliary grounding point
(5) Port-side mounting position
Figure 6 Chassis rail mounting positions on the HPE FlexFabric 5950 32QSFP28/HPE
FlexFabric 5950 32QSFP28 TAA
(1) Chassis rail installation position 1 (2) Chassis rail installation position 2
(3) Chassis rail installation position 3 (4) Chassis rail installation position 4
