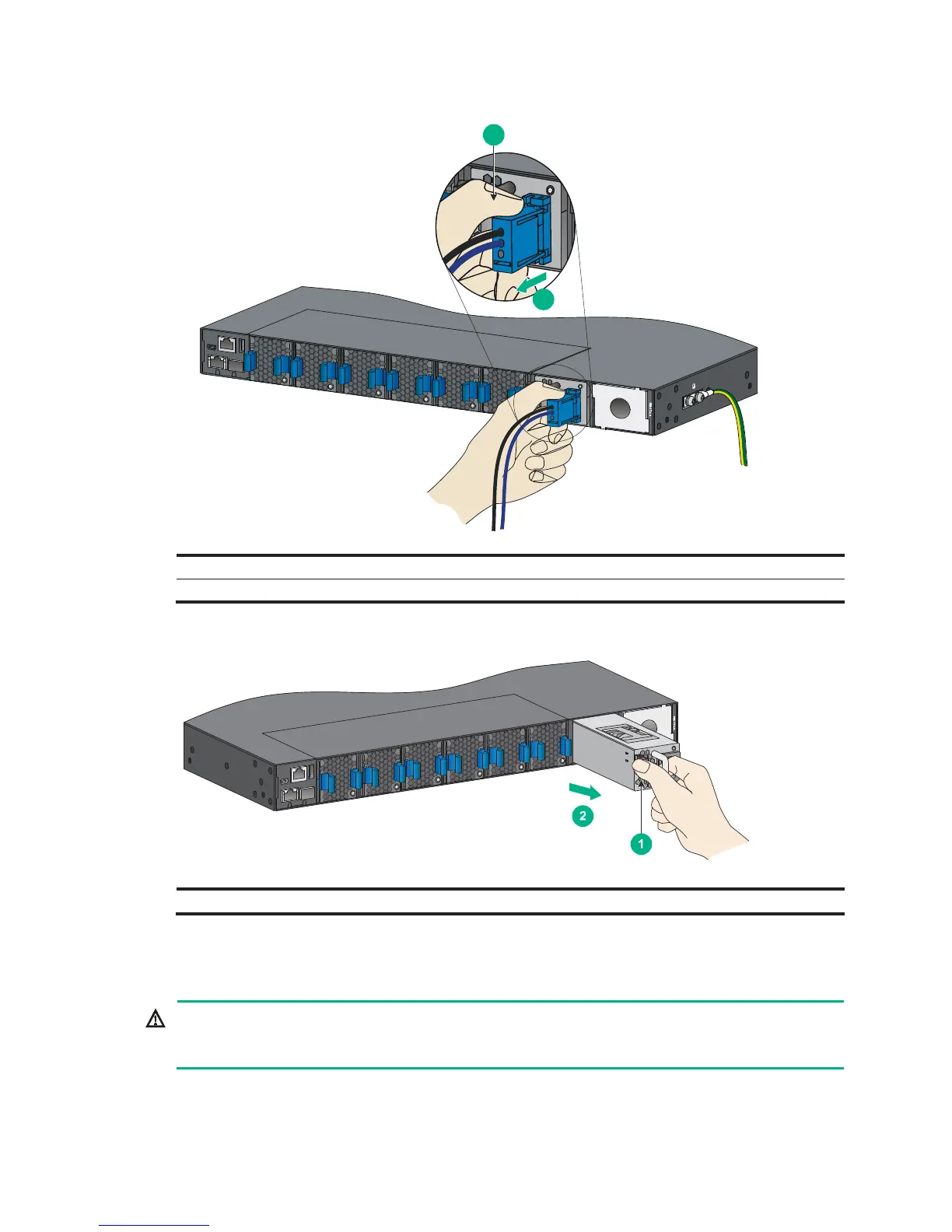

Figure 25 Removing the DC power cord
(1) Press the tabs on the power cord connector with your thumb and forefinger
(2) Pull the power cord connector out
Figure 26 Removing the power module
(1) Pivot the latch to the right with your thumb (2) Pull the power module out
Connecting the power cords
WARNING!
Provide a circuit breaker for each power input. When you connect a power cord, make sure the
circuit breaker is switched off.
1
2
