Connecting an AC power cord
1. Insert the female connector of the AC power cord supplied with the power module into the
power receptacle on the power module.
2. Use a cable tie to secure the power cord to the handle of the power module, as shown in Figure
27.
3. Con
nect the other end of the power cord to an AC power outlet.

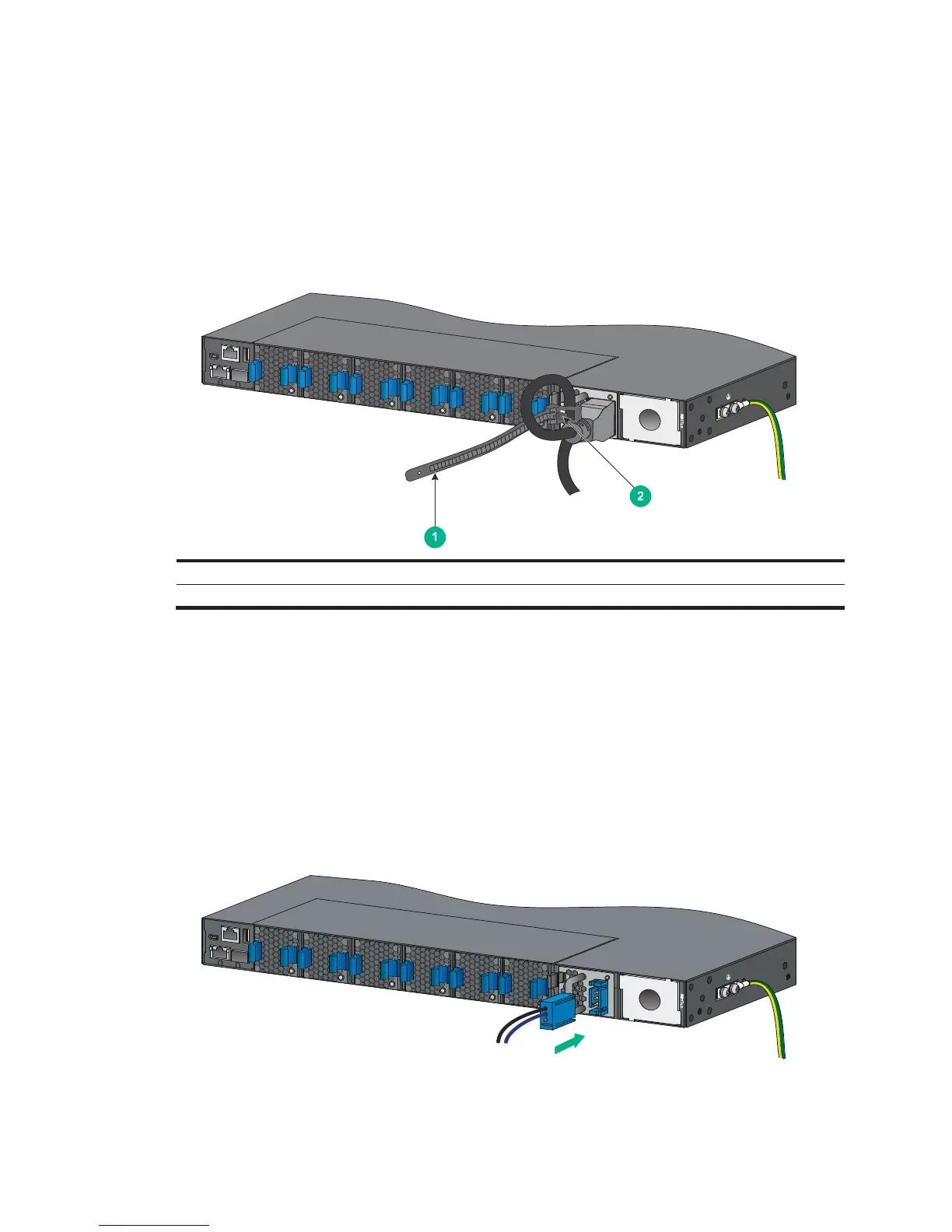

Figure 27 Connecting an AC power cord to the 650W AC power supply
(1) Cable tie
(2) Tighten the cable tie to secure the power cord to the handle of the power module
Connecting a DC power cord
1. Align the power cord plug with the power receptacle on the power module, and insert the plug
into the receptacle (see Figure 28).
The plu
g and receptacle are foolproof. If you cannot insert the plug into the receptacle, re-orient
the plug rather than use excessive force to push it in.
2. Use a cable tie to secure the power cord to the handle of the power module, as shown in Figure
27.
3. Con
nect the other end of the power cord to the DC power source.
Figure 28 Connecting a DC power cord to the 650W DC power supply
