HPE FlexFabric 5950 Series

11

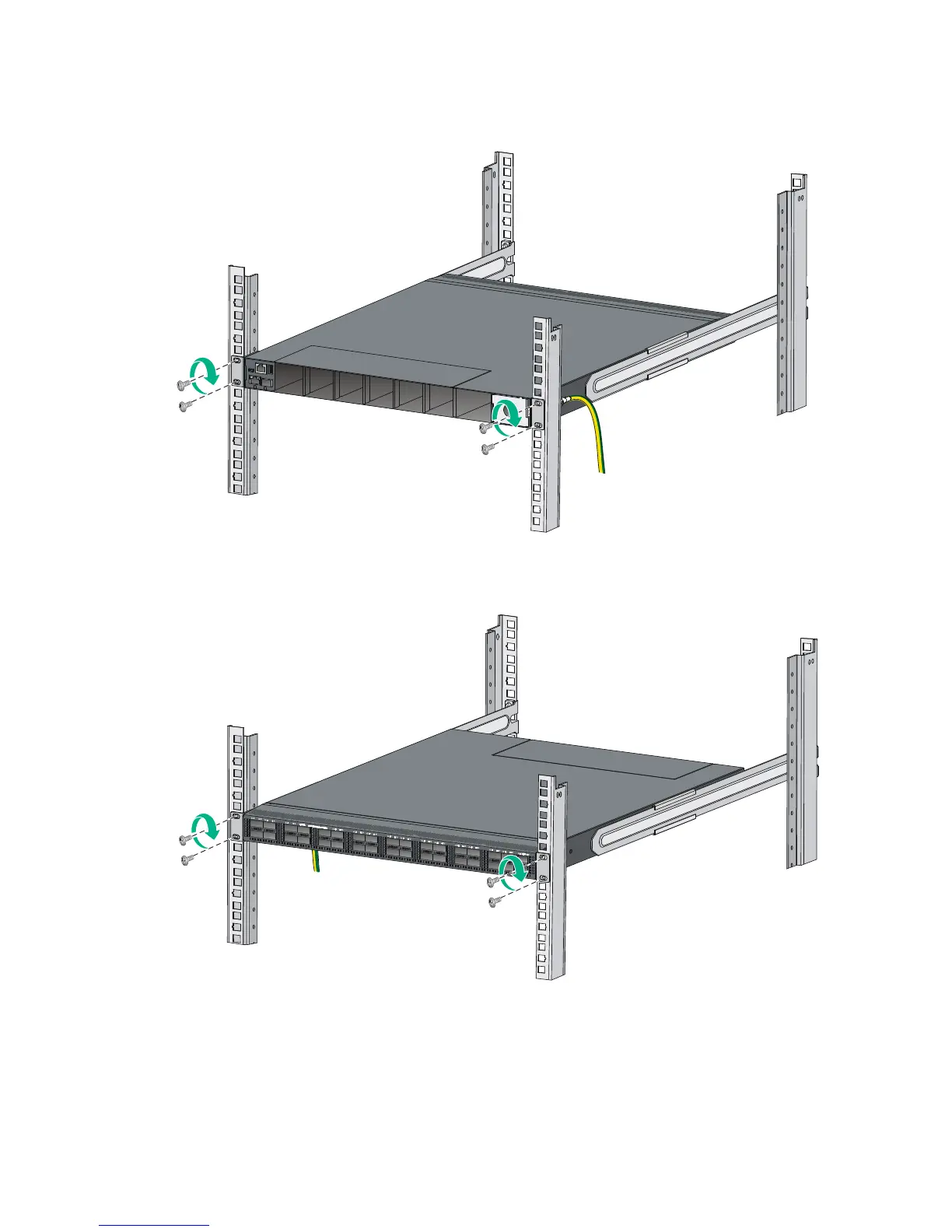

Figure 13 Mounting the HPE FlexFabric 5950 32QSFP28/HPE FlexFabric 5950 32QSFP28 TAA
switch in the rack (power module-side mounting position for the mounting brackets)
Figure 14 Mounting the HPE FlexFabric 5950 32QSFP28/HPE FlexFabric 5950 32QSFP28 TAA
switch in the rack (Port-side mounting position for the mounting brackets)
Rack-mounting the switch by using only mounting brackets
Attaching mounting brackets to the switch
To rack-mount the switch by using only mounting brackets, you can attach the mounting brackets
only to the middle-mounting position.
