Appendix A Chassis views and technical
specifications
Chassis views
HPE FlexFabric 5950 32QSFP28/HPE FlexFabric 5950
32QSFP28 TAA

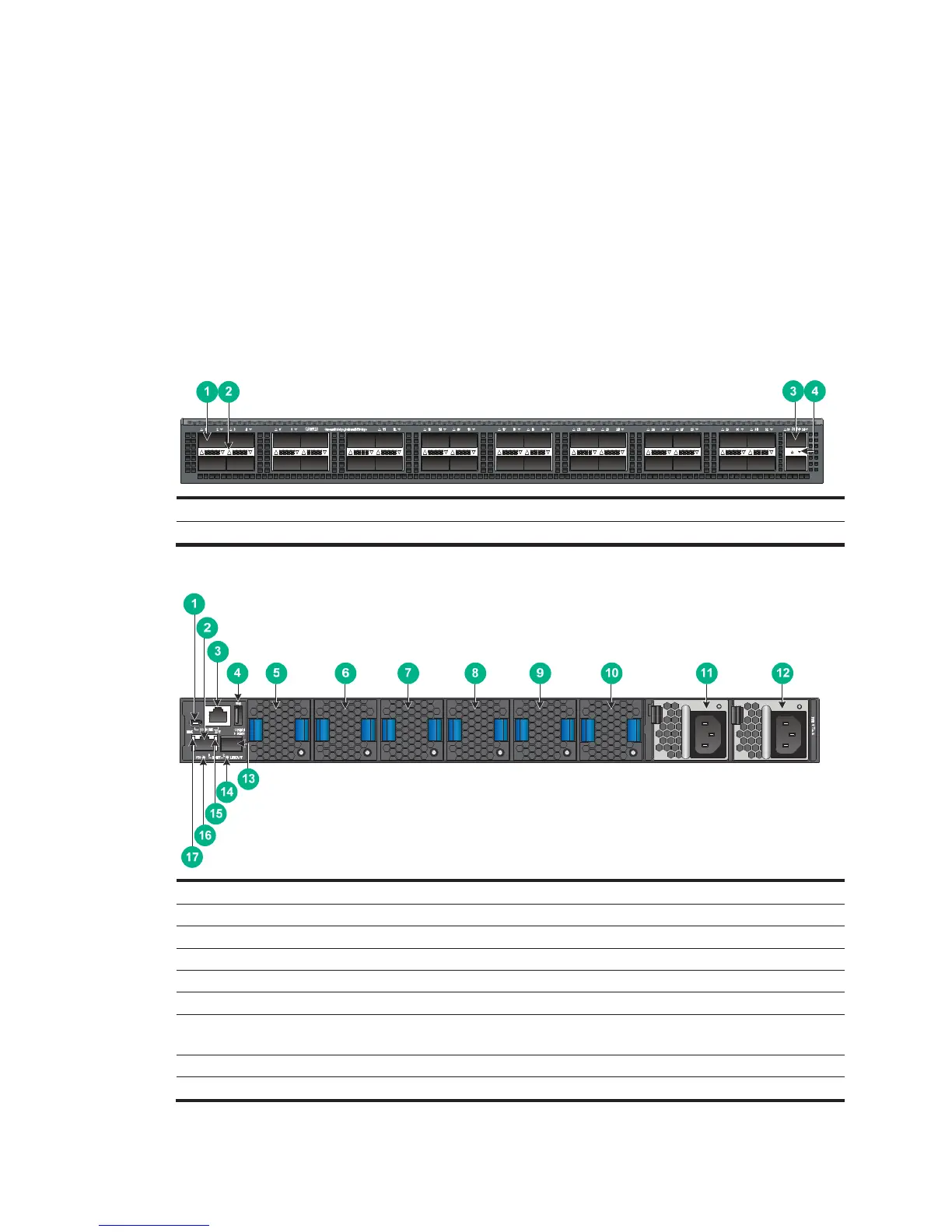

Figure 40 Front panel
(1) QSFP28 port (2) QSFP28 port LED
(3) SFP+ port (4) SFP+ port LED
Figure 41 Rear panel
(1) Mini USB console port (2) Copper management Ethernet port
(3) Serial console port (4) USB port
(5) Fan tray 1 (6) Fan tray 2
(7) Fan tray 3 (8) Fan tray 4
(9) Fan tray 5 (10) Fan tray 6
(11) Power module 1 (12) Power module 2
(13) Fiber management Ethernet port (14) Fiber Management Ethernet port LED
(ACK/LINK)
(15) Copper management Ethernet port LED (ACT) (16) System status LED (SYS)
(17) Copper management Ethernet port LED (LINK)
