8
The power and grounding terminals in this section are for illustration only.
Grounding the switch with a grounding strip
Connect the grounding cable to the grounding system in the equipment room. Do not connect it to a
fire main or lightning rod.
If a grounding strip is available at the installation site, connect the grounding cable to the grounding
strip.
Connecting the grounding cable to the chassis
1. Remove the grounding screw from the rear panel of the switch chassis.
2. Use the grounding screw to attach the ring terminal of the grounding cable to the grounding
screw hole.

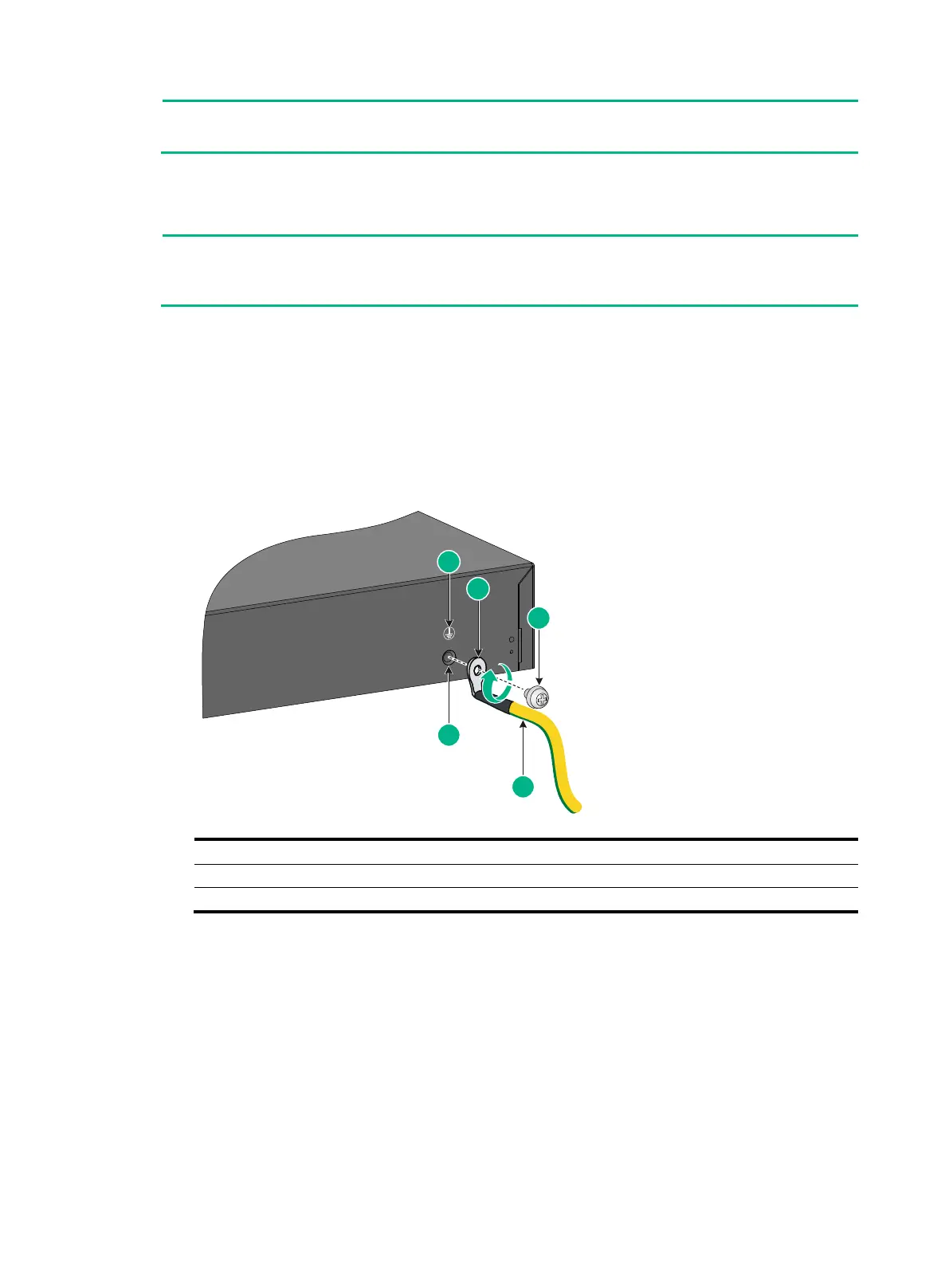

Figure 7 Connecting the grounding cable to the chassis
3. Verify that the grounding cable has been securely connected to the rear grounding point.
Connecting the grounding cable to a grounding strip
1. Cut the grounding cable to a length required for connecting to the grounding strip.
2. Use a wire stripper to strip 20 mm (0.79 in) of insulation off the end of the grounding cable. Then
use needle-nose pliers to bend the bare metal part to the shape as shown in Figure 8. Make
sure the bended part can securely attached to the grounding post on the grounding strip.
3. Attach the bended part of the grounding cable to the grounding post and use the hex nut to
fasten the bended part to the post.
