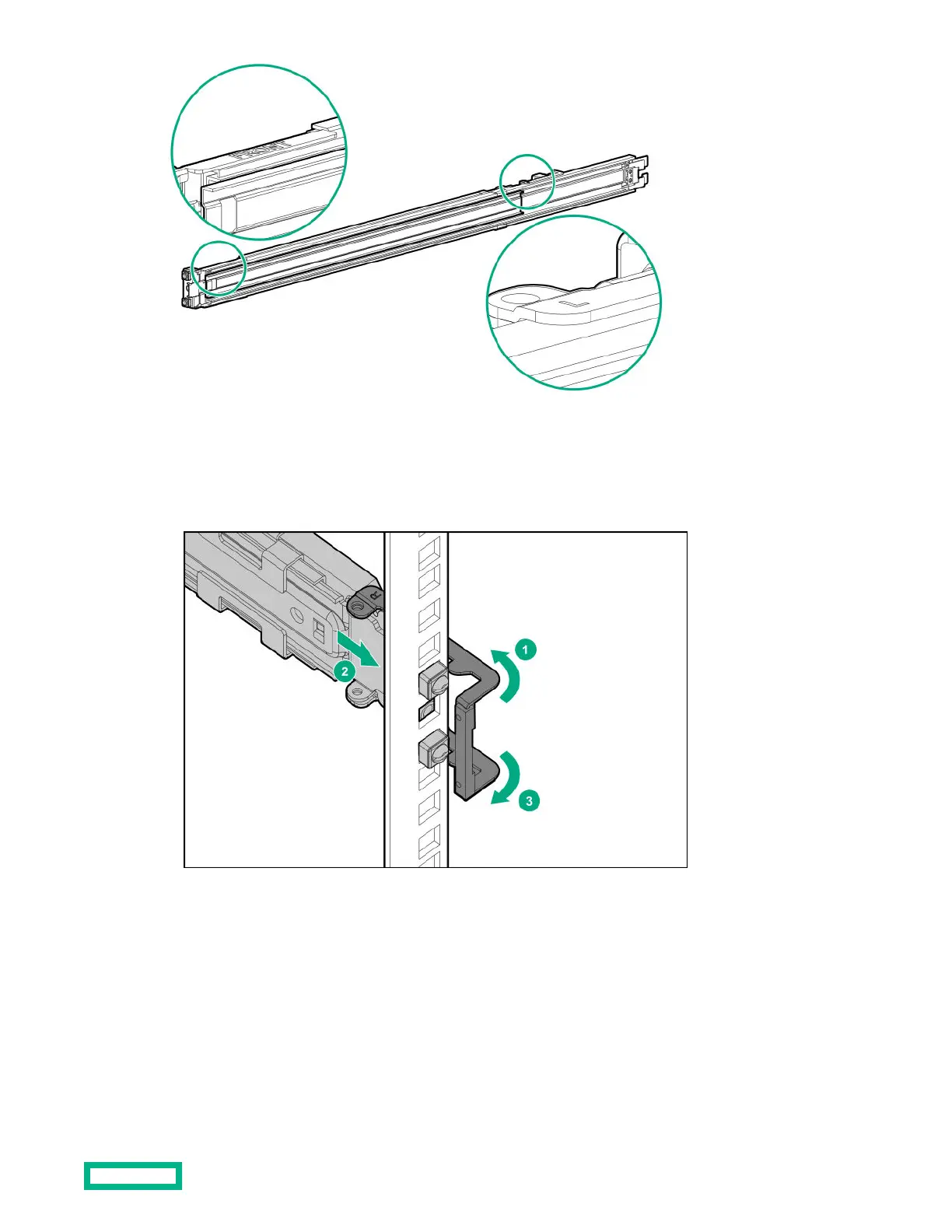

4. Fasten the mounting rails to the rack columns:
a. Retract and hold the rear retention bracket.
b.
Insert the pegs on the mounting flange into the rack holes.
c.
Release the rear retention bracket.
d. Retract and hold the front retention bracket.
e. Insert the pegs on the mounting flange into the rack holes.
f. Release the front retention bracket.
Hardware options installation
54
