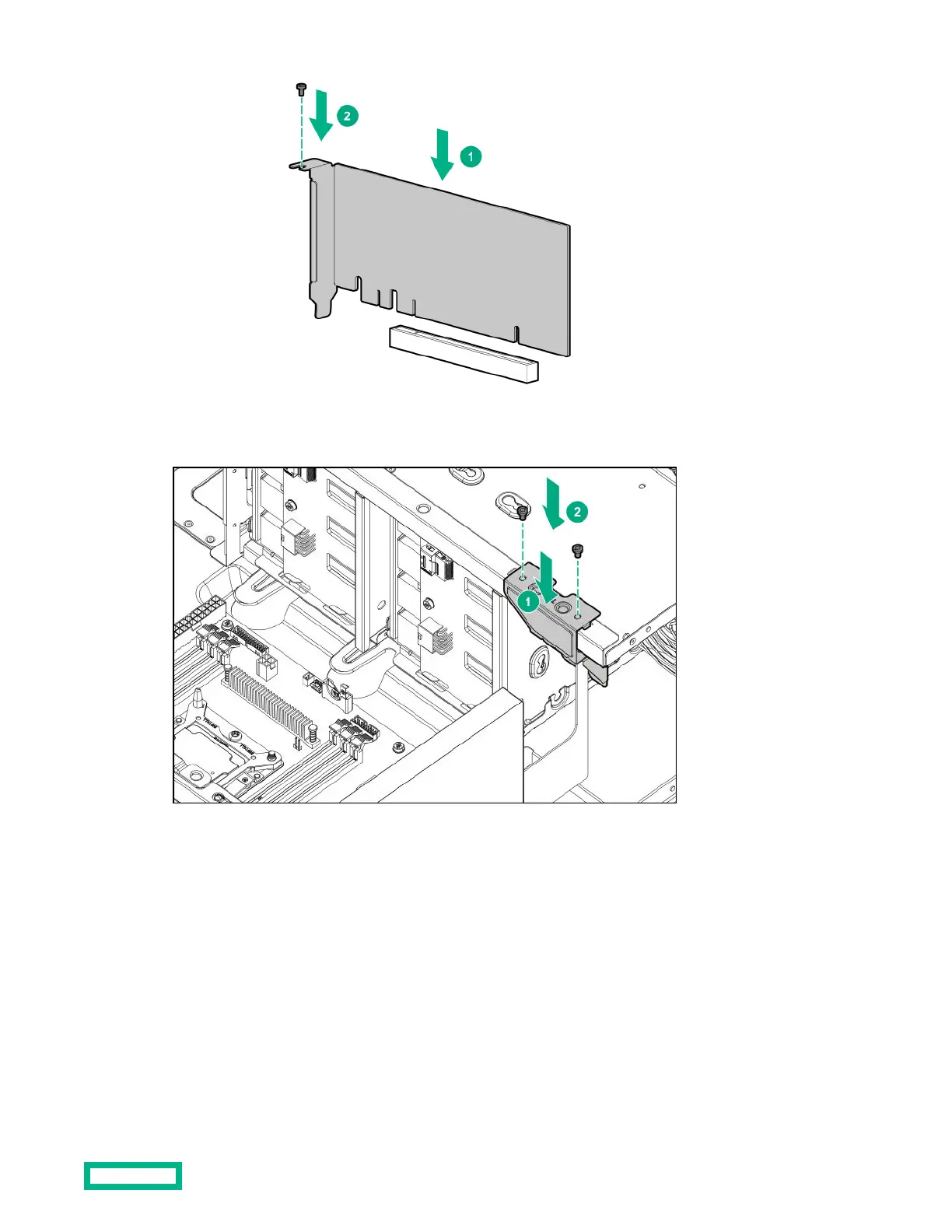

Make sure that the GPU is firmly seated in the slot.

12. If a full-length GPU is installed in the PCI slot 4, install the GPU holder.

13.

Close the PCI slot retainer.
