HPE ProLiant XL170r Gen10

1
Not shown

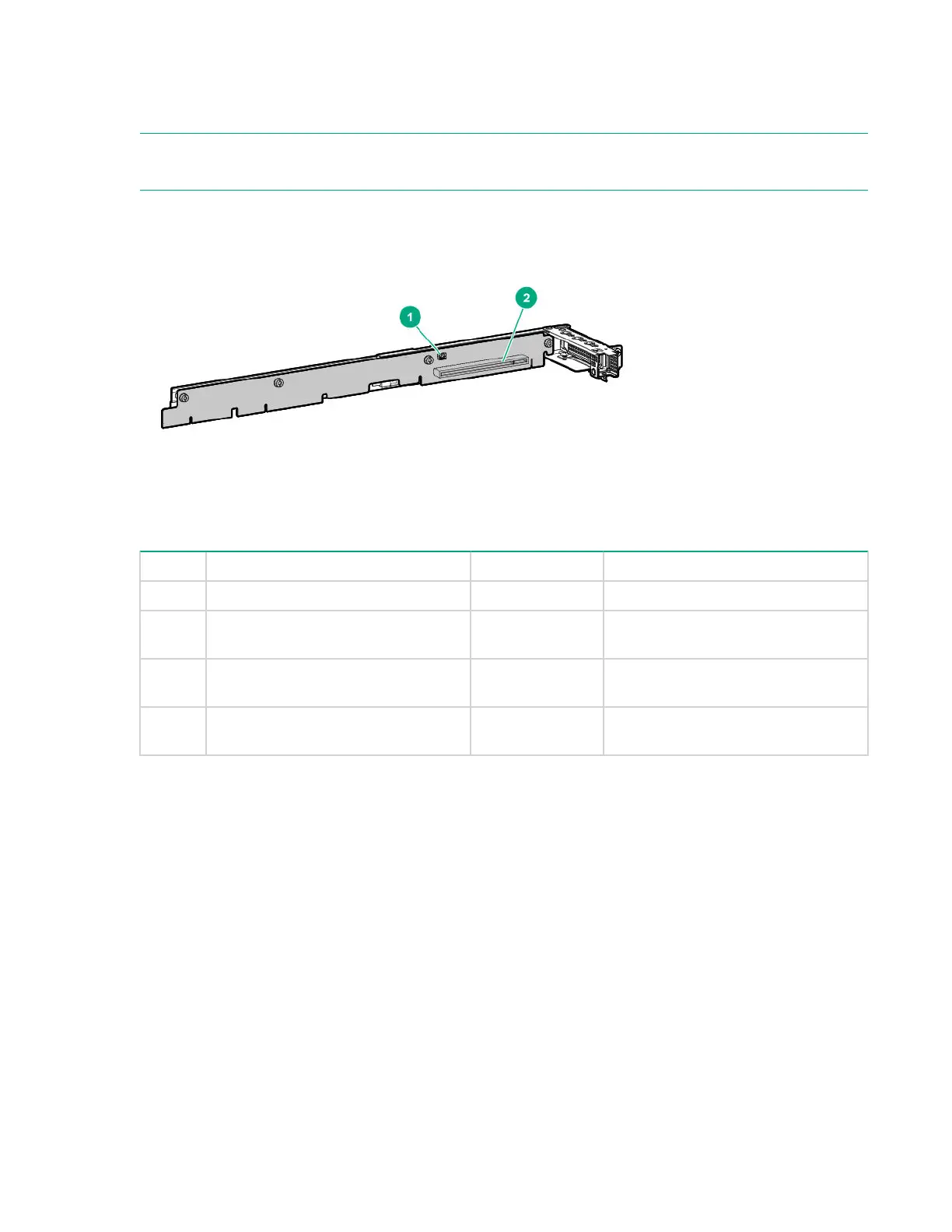

1U secondary riser for processor 2
NOTE: The HPE XL170r 16NVMe Gen10 P2 LP Riser Kit (PN 874304-B21) is only for use in servers that
are installed in the HPE Apollo r2800 Gen10 Chassis with 16 NVMe. For more information, see Cabling.
Item Form Factor Slot number Description
1 — — Storage backup power connector
2 Storage controller or low-profile
PCIe expansion board
2 PCIe3 x16 (16, 8, 4, 1) for Processor
2
3 Slimline SAS cable for NVMe
support
— Port 1
1
4 Slimline SAS cable for NVMe
support
— Port 2
1
1
Not shown
1U secondary riser for processor 2 13
