hpmont MONT30 User Manual

MONT30 Starting Guide V1.0
11

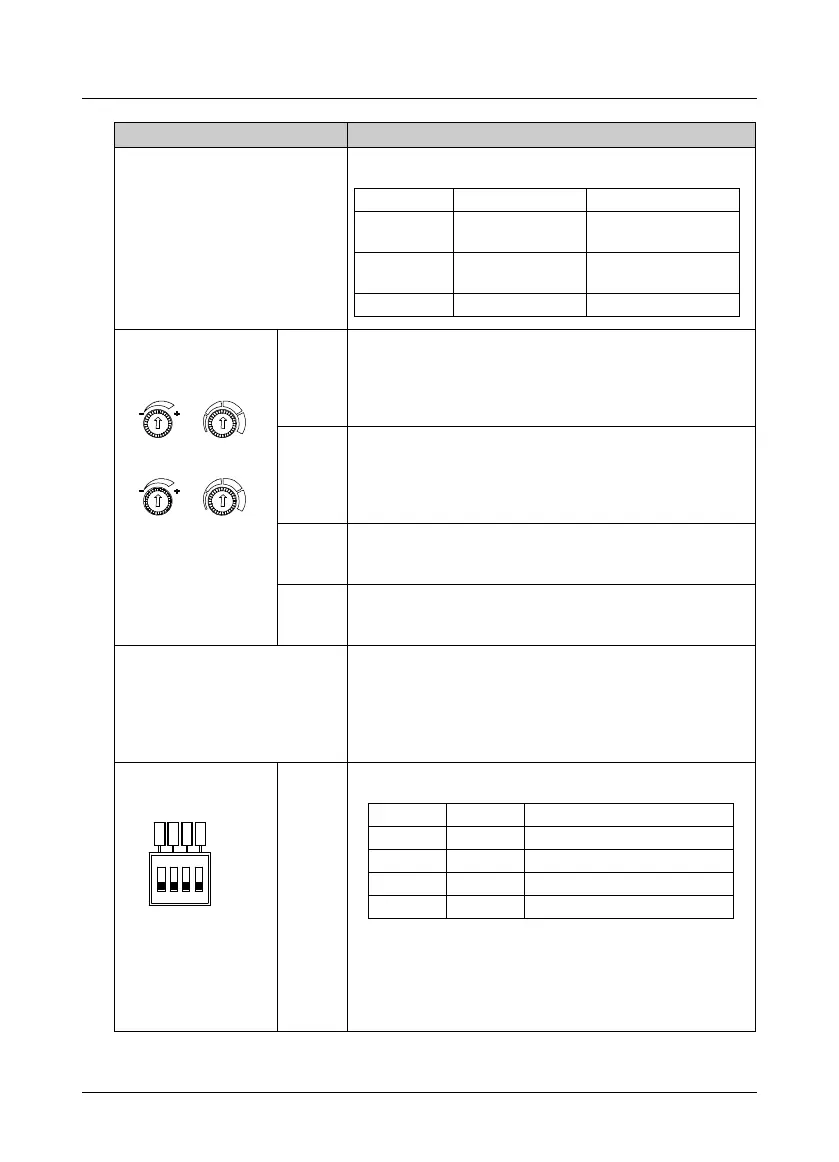

Tabl e 5-3 Display or operating description
Display or Operate Description
Indicator
Displays yellow, red, green, and the status description are
shown in the table below.
Display Keep On Flash
Yellow (YL)
Door arrived
(open / close)
Door command
(open / close)
Green (GN) Stand-by
In normal run model
or motor learn model
Red (RD) Failure Bluetooth connected
123
Knob
Hold
Torque
Debug the holding torque of door open or close arrived, there
are 20 gears in total.
•
Default middle gear. Adjust 2% per gear. Adjust the knob to
the left, the torque decreases, otherwise the torque
increases.
Reopen
Torque
Debug the reopening torque when the door is blocked during
closing the door, there are 20 gears in total.
•
Default middle gear. Adjust 2% per gear. Adjust the knob to
the left, the torque decreases, otherwise the torque
increases.
Open
Speed
When F10.23 hundred = 1, select the gear, 4 gears in total.
When F10.23 hundred = 0 [default], fine tune the 4th gear OD
speed.
Close
Speed
When F10.23 hundred = 1, select the gear, 4 gears in total.
When F10.23 hundred = 0 [default], fine tune the 4th gear CD
speed.
Button
•
DIP switch S1&S2 = ON&ON, press Button for 1s and release
button to start motor learn.
•
DIP switch S1&S2 = OFF&ON, press Button for 1s and release
button to start width learn.
•
DIP switches S1&S2 = ON&OFF, long press Button to test the
OD and CD effect.
DIP switch
(default OFF)
S1, S2,
S3, S4
•
S1&S2 combination setting function, as shown in the table
below.
S1
S2
Function
OFF OFF Normal Run Mode [default]
ON OFF Trial Run Mode
ON ON Motor Learn Mode
OFF ON Width Learn Mode
•
S3: Unused
•
S4
•
ON (Forward Open): Motor forward to open the door.
•
OFF (Forward Close): Motor forward to close the door,
default.
Hold
Torque
Open
Speed
Close
Speed
Reopen
Torque
ON
S
1
S
2
S
3
S
4
1 2 3 4
OFF
