hpmont MONT30 User Manual

MONT30 Starting Guide V1.0
4

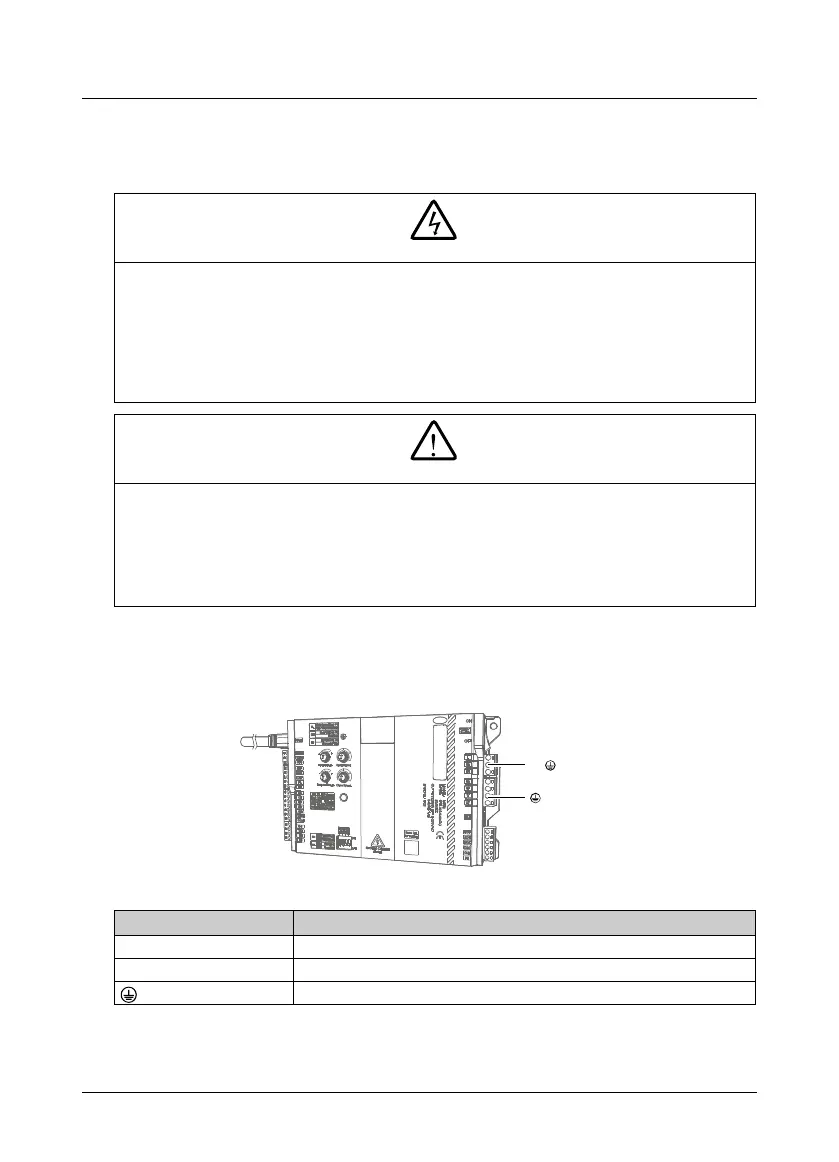

3. Electrical Installation
•
Only qualified electrical engineer can perform electrical wiring.
•
MONT30 must be reliably powered off for 10 minutes before wiring.
•
MONT30 has a leakage current of more than 3mA to ground, depending on the use conditions.
To ensure safety, MONT30 and the motor must use independent ground cables, and recommended
to install B-type residual current devices (ELCB/RCD).
•
When MONT30 is charged, do not touch the wiring terminal of MONT30.
•
Do not short circuit between power terminals.
•
Do not do dielectric strength test on MONT30.
•
Connect the terminals firmly.
•
Prohibit on-off contactors to start and stop MONT30.
•
Do not connect the input power to U/V/W terminals of MONT30.
•
Do not connect the phase-shifting capacitors to the output circuit.
•
Confirm the AC input power supply voltage is the same as rated input voltage of MONT30.
3.1 Controller Terminal Description
3.1.1 Power Terminal Description
Figure 3-1 Power terminal
Tabl e 3-1 Power terminal description
Power Terminal Description
L, N Single phase AC 220V power input terminal
U, V, W Controller output terminal, connect to motor
Ground terminal, connected to protective ground
Da
ng
er
W
a
rn
i
n
g
L, , N
, U, V, W
