hpmont MONT30 User Manual

MONT30 Starting Guide V1.0
5
3.1.2 Control Terminal Description

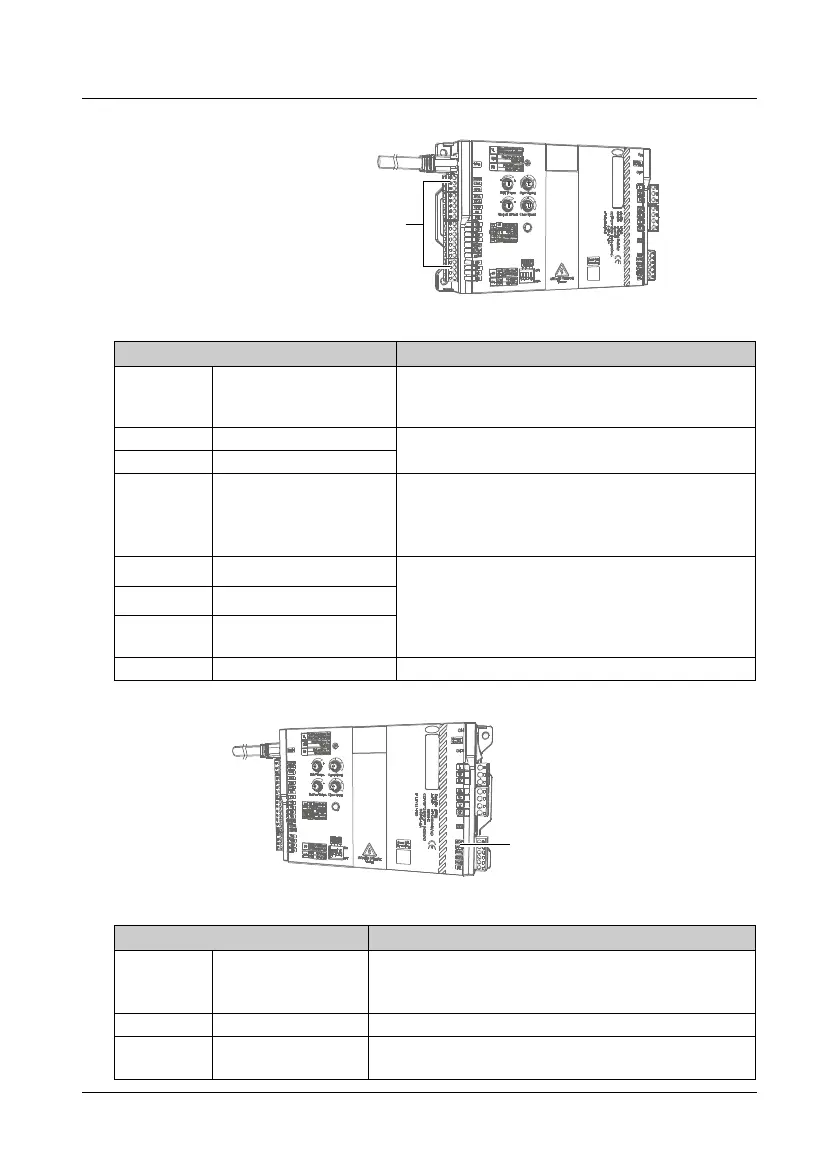

Figure 3-2 Control terminal
Tabl e 3-2 Control terminal description
Control Terminal Description
CAN+, CAN-,
GND
CAN communication
MONT30 communicates with elevator control system
•
For CAN communication protocol, please contact
dealer
DOA, CME Door open arrived output
Transistor contact capacity: 30VDC/50mA
•
F06.00 sets NO or NC output
DCA, CME Door close arrived output
PA, PB Relay output
PA, PB normally open (NO)
Contact capacity: 250VAC/3A or 30VDC/1A
•
F06.01 sets function
•
F06.00 sets NO or NC output
OD, COM Open door command input
Isolation, support dry contact and NPN input, low level
is valid
•
Input impedance: 4.7kΩ
•
Input Max. frequency: 1kHz
DI1 - DI6: F06.03 - F06.08 set function, NO or NC input
CD, COM Close door command input
DI1 - DI6,
COM
Digital input
+24V, COM
+24V power supply
+24V power supply, the Max. output current is 200mA
3.1.3 Encoder Terminal Description
Figure 3-3 Encoder terminal
Tabl e 3-3 Encoder terminal description
Encoder Terminal Description
PGP, GND Encoder power supply
Encoder power supply, the Max. output current is 200mA
•
ABZ encoder: Power supply 24V or 5V
•
Absolute encoder: Power supply 5V
PE Shield Ground
A, B, Z ABZ encoder signal
ABZ encoder, optocoupler isolated input
•
Input Max. pulse frequency: 40kHz
CAN+, CAN-, GND
DOA, DCA, CME, PA, PB
OD, CD, DI1, DI2, +24V, COM, COM
DI3, DI4, DI5, DI6
PGP, GND, PE
A, B, Z
CS, CK, SO
