MONT30 Starting Guide V1.0
15
5.4 Debug OD and CD
Set DIP switches S1&S2 = ON&OFF, long press Button to test the OD and CD effect, the
door stops running after release Button.
If the OD or CD does not meet the requirements, adjust the torque, speed and creep
distance according to the site.
•
Torque: DOA/DCA final holding torque, reopening torque.
•
Speed: OD speed, CD speed.
•
Creep distance (Only Distance Control): F11.28 (OD), F11.29 (CD).
Torque Knob Sets the Torque
There are 20 gears to adjust the OD/CD holding torque and the reopening torque, adjust
2% per gear.
Default the middle gear, adjust the knob to the left, the torque decreases, otherwise, the
torque increases, as shown in Figure 5-2.
Hold Torque knob: Adjusted on F05.02/F05.06 (DOA/DCA final holding torque),
d01.42/d 01.43 (OD/CD) check the adjusted torque.
Reopen Torque knob: Adjusted on F05.08/F05.10 (reopening torque at low/high speed),
d01.44/d 01.45 (low/high speed) check the adjusted reopening torque.

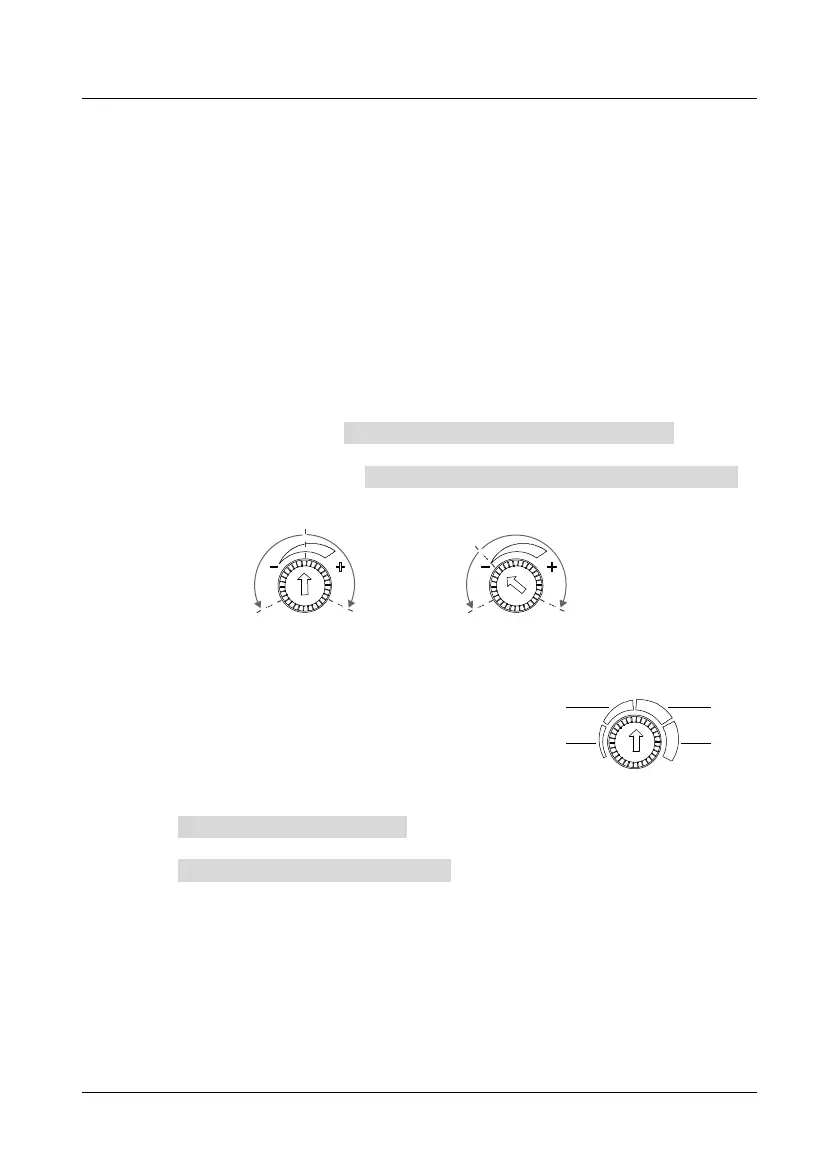

Figure 5-2 Torque knob adjust
Speed Knob Sets the Speed
There are 4 options for door opening curve and door
closing curve.
The corresponding parameters of the four gears are
shown in Table 5-5 and Table 5-6. The keypad can set
each parameter.
Figure 5-3 Speed knob gear
The speed knob can select gear or fine tune the 4th gear.
•
When F10.23 hundred = 1 (select gear), the speed knobs select the gear, as shown in
Figure 5-3.
•
When F10.23 hundred = 0 (fine tune, default), the speed knobs fine tune the 4th gear
speed: OD speed = F11.25 × F03.22, CD speed = F11.26 × F04.22.
11
0%
-8%
-20%
-20% +20%
+20%1 21
7
1 21
1 4
2 3
