HSD ES327 - Mechanical Connections

4 Installation and commissioning
48
HSD S.p.A. © - 0104h03a.fm100713
4.4 Mechanical connections
The load-bearing structure on which the product is to be mounted must be sufficiently rigid to
support the weight and type of machining to be carried out.

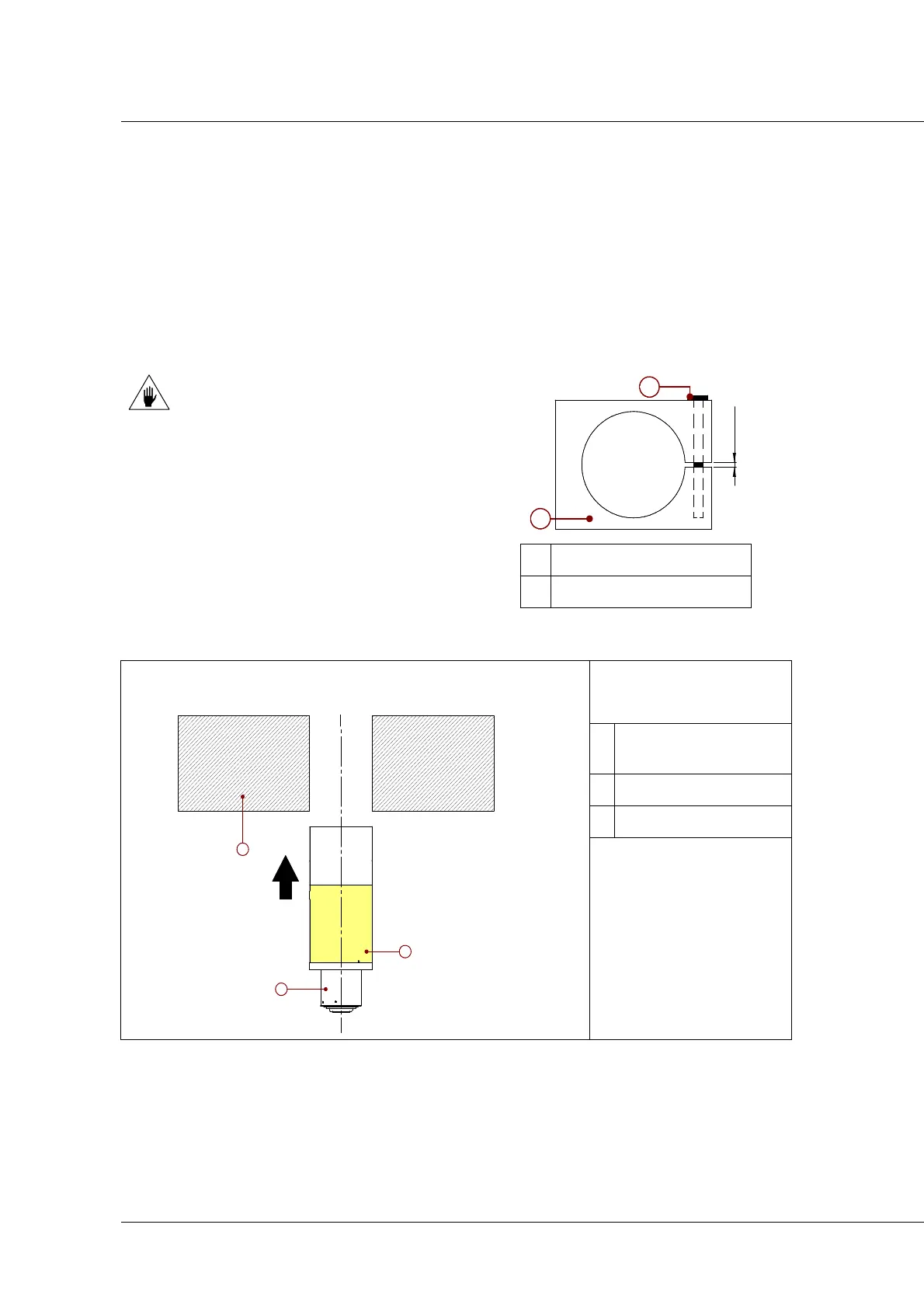

4.4.1 Fixing structure for ES327, “liquid” ES330
The electrospindle must be assembled in
"clamped" housing.
Make available a structure which has a hole
equal to the diameter of the spindle and an
opening of 0.02 mm (it is advisable to use a
thickness spacer appropriately
machined).When the motor has been inserted,
tighten the housing to obtain the correct
pressure to lock the electrospindle
1 Housing
2 Fixing screws
1 Fixing structure
of the electrospindle
2 Electrospindle
3 Fixing area
1
0,02 mm
2
1
2
3
