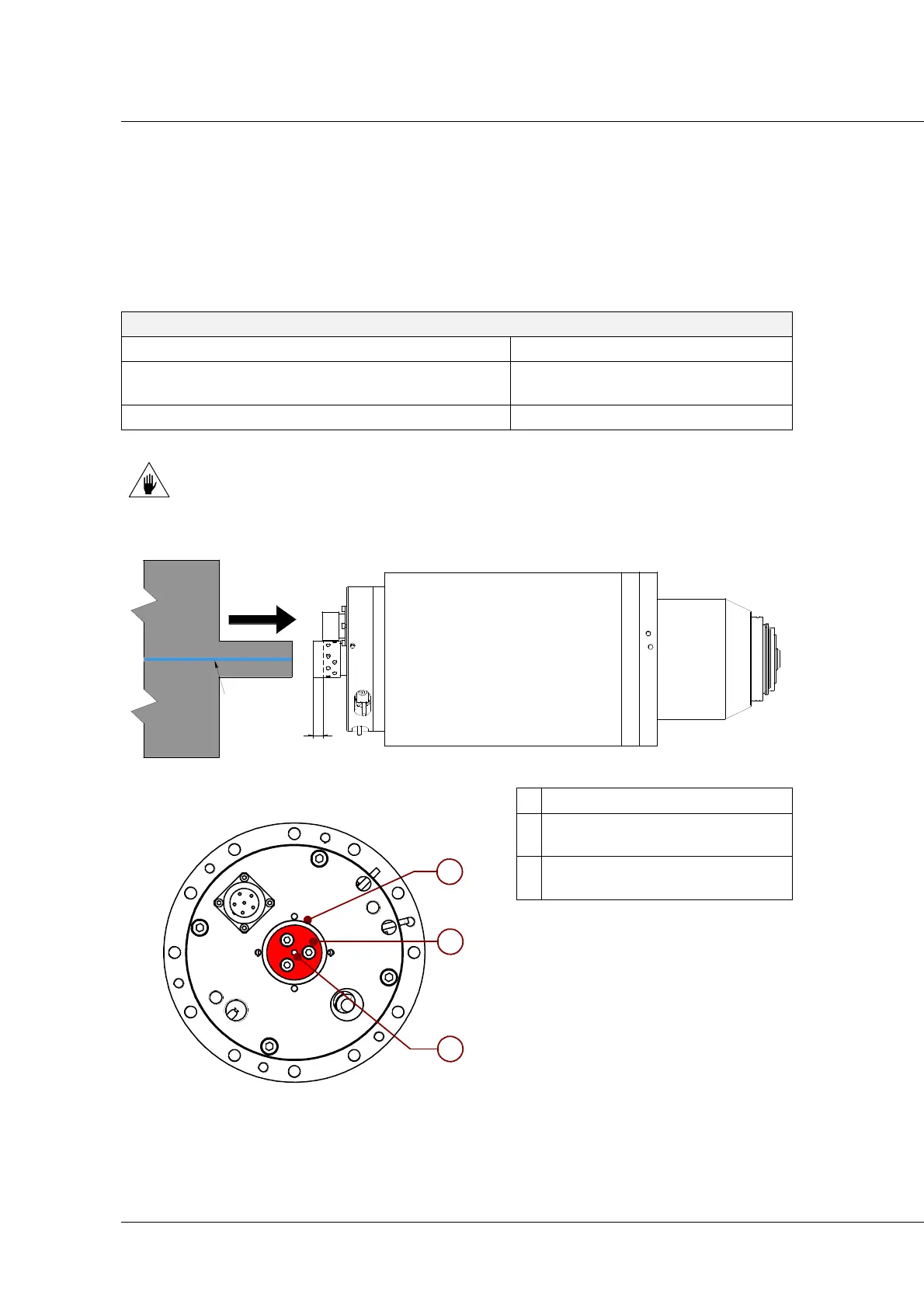

4.5 ES370: performing tool change
The ES370 electrospindle is not equipped with a cylinder/piston to perform the tool change. It is
the responsibility of the client in this case to provide an external structure which enables tool
change operations by taking advantage of the exposed area of the screw dowel. The expulsion
system must also provide for a central hole for toolholder cone cleaning in the releasing phase.
Expulsion system specifications
Force min 1000 Kg - max 1250 Kg
Screw dowel stroke between positions
“collet closed without tool” and “collet open”
8 mm
Diameter on stop 30 mm
The expulsion system should not cause radial loads on the screw dowel.
1 Pressurisation air outlet area
2 Exposed area of the screw dowel
to be used to open the collet
3 ø 3 Hole air inlet cone cleaning 4
bar
Aria pulizia cono
Cone cleaning air
O3 4 bar
Corsa totale
Total stroke
8 mm
