HSD ES327 - Electronic Connections for Models with Free Cables

4 Installation and commissioning
HSD S.p.A. © - 0104h03a.fm100713
63

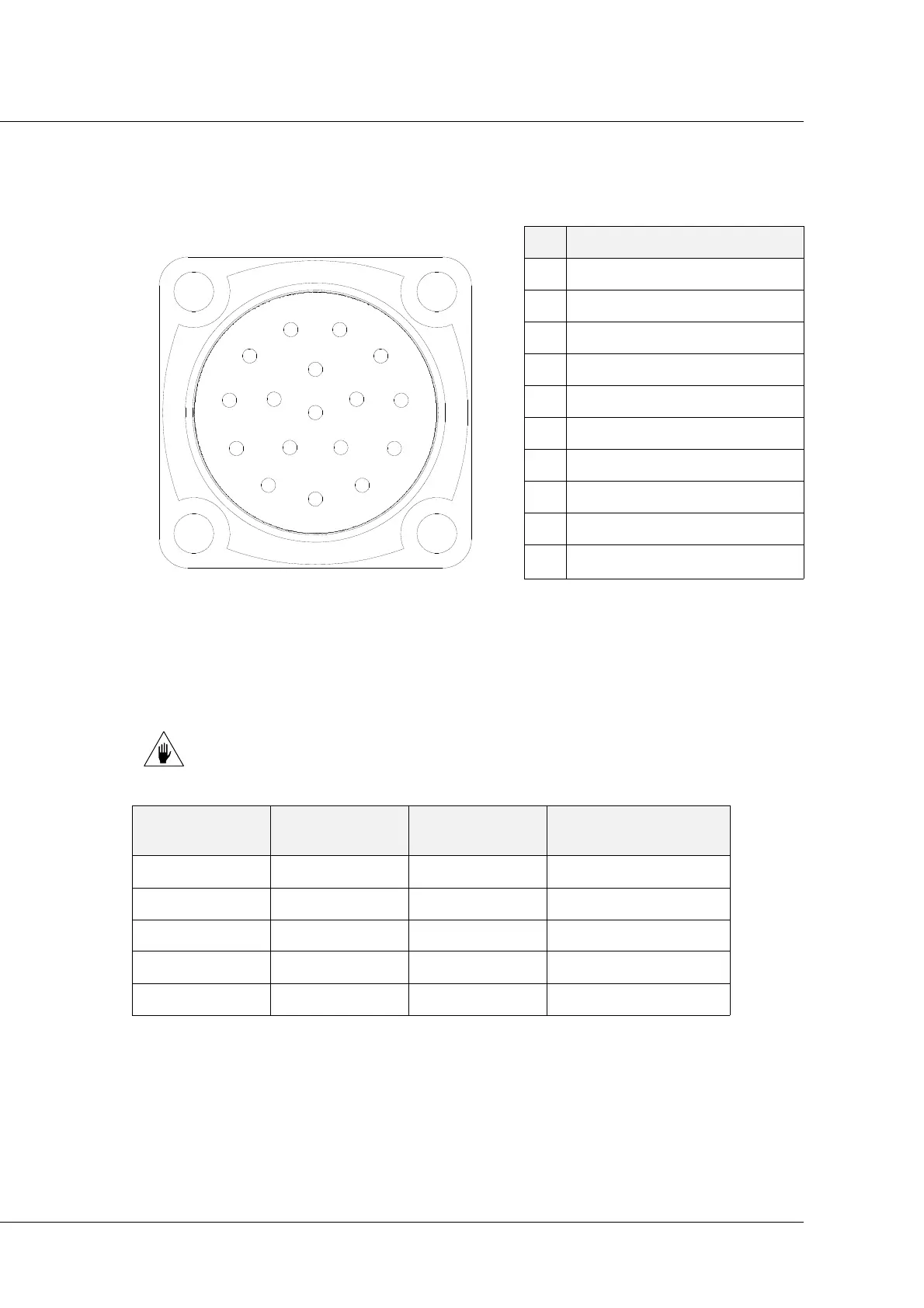

4.8.5 ES370 encoder connector (fixed part)
4.9 Electronic connections for models with free
cables
PIN DESCRIPTION
1 A
2 A-
3 Z
7 0V
10 +5V
11 B
12 B-
13 Z-
16 5V Sense
17
Encoder cable screening
The electricity supply to the electrospindle MUST be through an inverter.
CABLE
ES327
CABLE
ES330/ES370
CABLE*
ES331/ES332
*
AWG14 (ES331) - AWG10 (ES332)
DESCRIPTION
Blue (couple) Orange (couple)
Yellow/green Yellow/green Yellow/green Earth PE W
Brown White White Motor phase U
Blue Red Red Motor phase V
Black Black Black Motor phase W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
