4 Installation and commissioning
62
HSD S.p.A. © - 0104h03a.fm100713

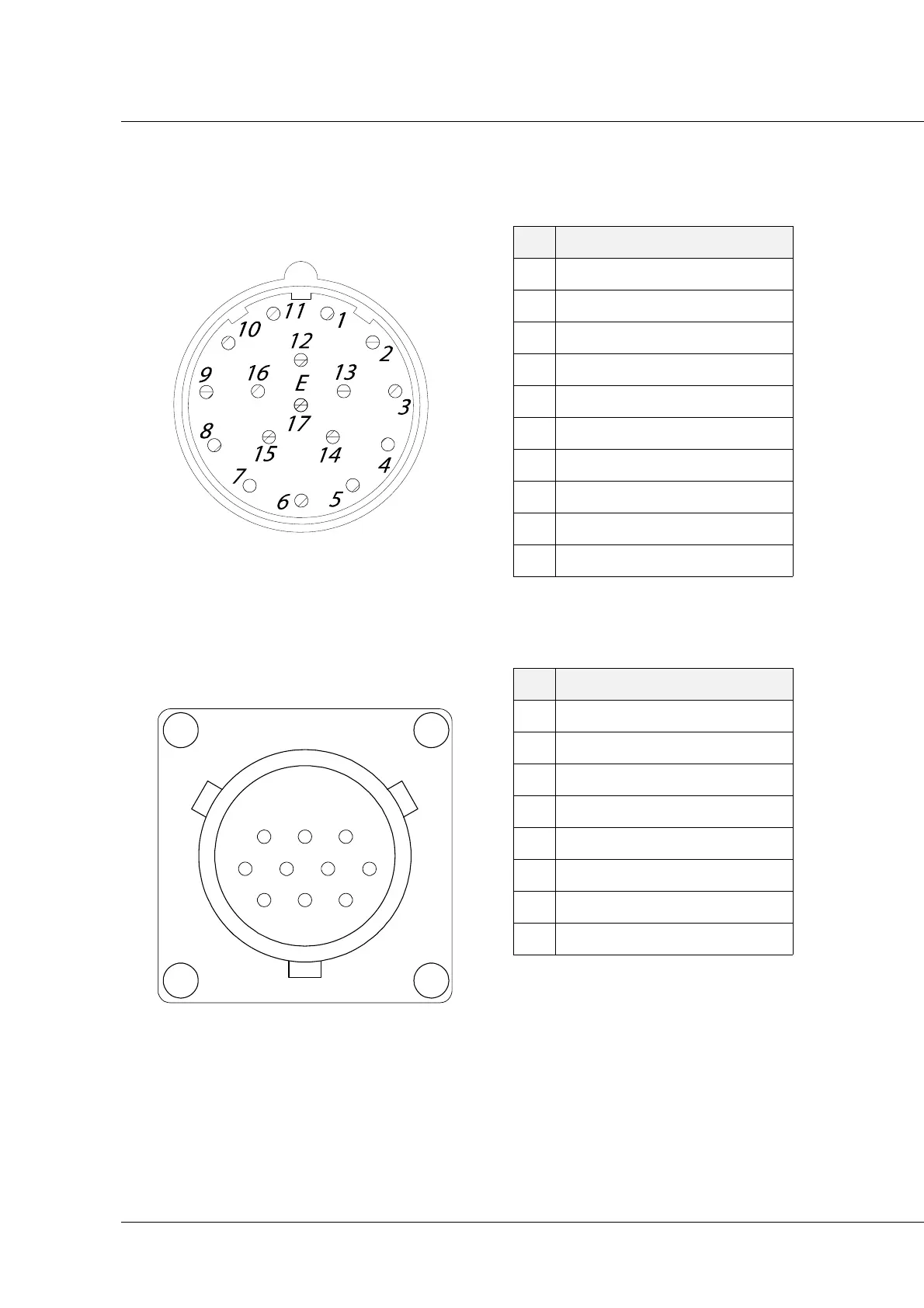

4.8.3 ES331 encoder connector
4.8.4 ES332 encoder connector
PIN DESCRIPTION
1 A
2 A-
3 Z
7 0V
10 +5V
11 B
12 B-
13 Z-
16 5V Sense
17 Encoder cable screening
PIN DESCRIPTION
A A
B A-
C B-
D GND
E Z+
F 5V
G Encoder cable screening
J B+
HAB
FED
GK J C
