4.6.2 Pneumatic connection points

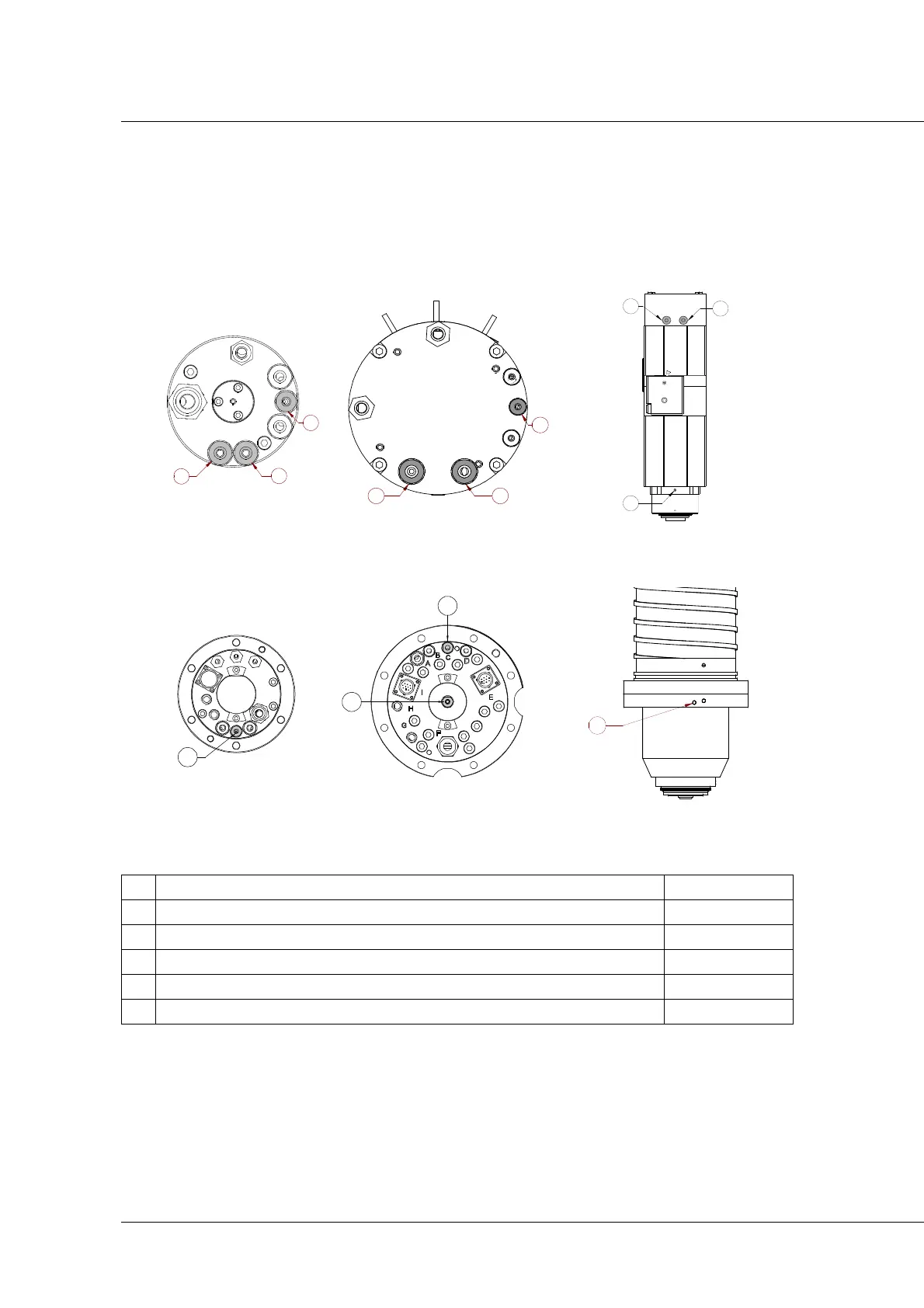

Figure 1: Pneumatic connection points
ES327 Liquid ES330 Air ES330
ES331 ES332 ES370
1 Tool locking air inlet (piston return) 6 bar - 87 PSI
2 Air inlet for tool release and cone cleaning 6 bar - 87 PSI
3 Pressurisation air inlet 0.5 bar - 7.2 PSI
4 Air inlet for tool release (ES327 only) 6 bar - 87 PSI
5 Air inlet for pressurisation and cone cleaning (ES331 only) 1 bar - 14 PSI
6 Air inlet for cone cleaning (ES332 only) 4 bar - 58 PSI
1 2
3
4
1
5
1
3
2
5
3
6
3
