4 Installation and commissioning
58
HSD S.p.A. © - 0104h03a.fm100713
4.7.2 Hydraulic connection points
The following figures illustrate the hydraulic connection points according to the correspondence
shown in this table:

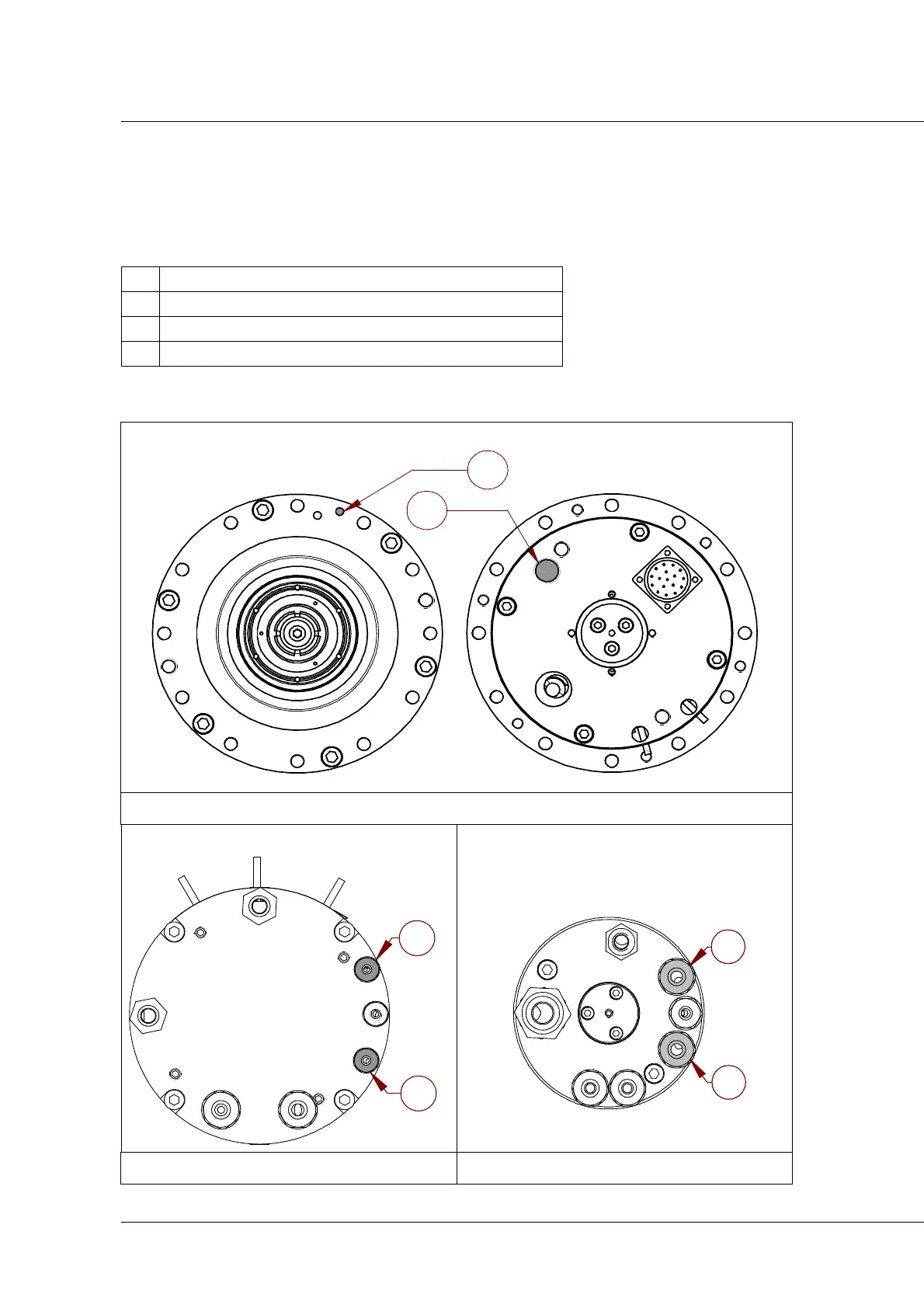

Figure 6: Hydraulic connection points
1 Motor cooling liquid inlet
2 Motor cooling liquid outlet
3 Oil inlet for front piston
4 Oil inlet for rear piston
ES370
ES330L ES327
2
1
2
1
2
1
